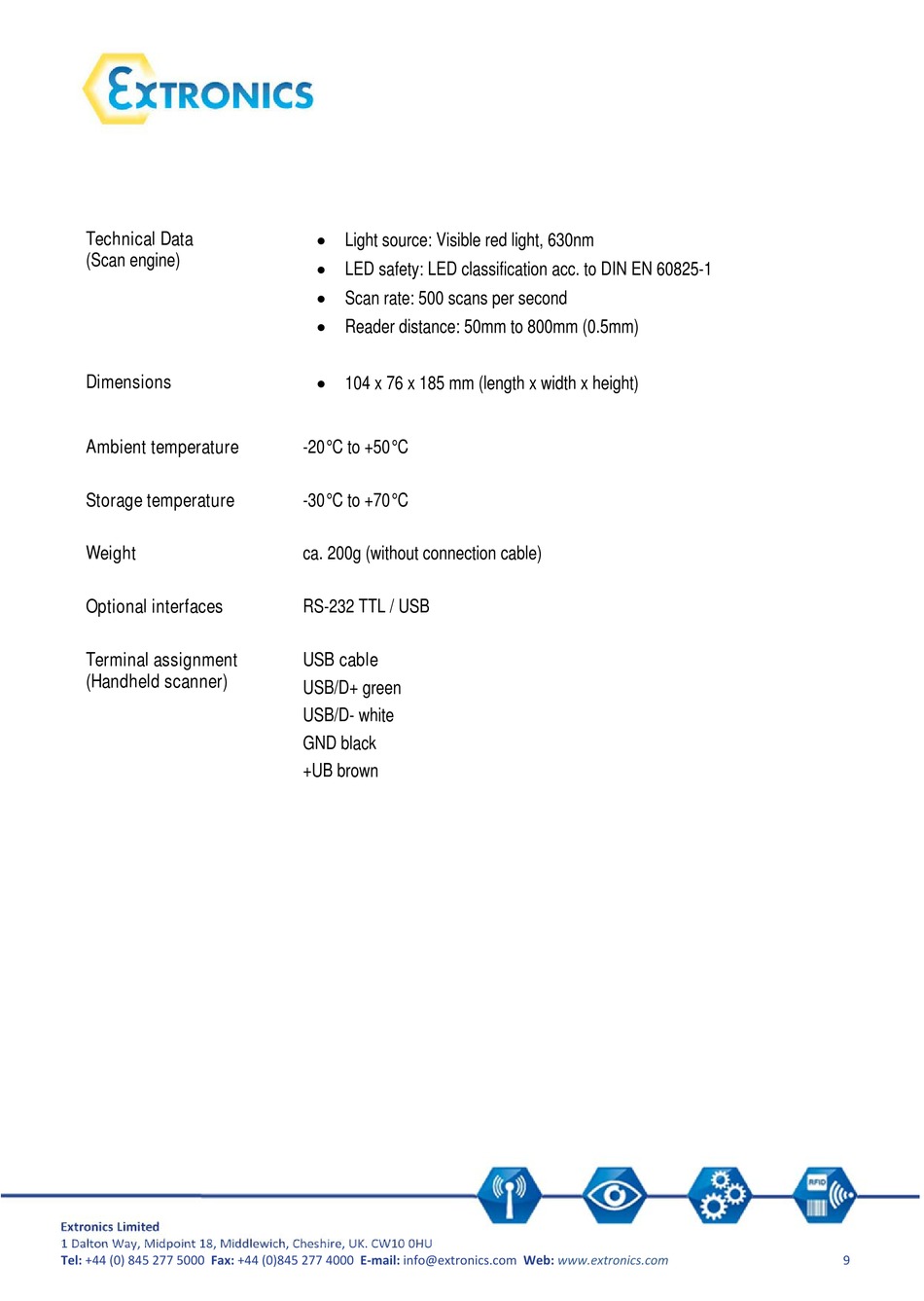

extronics iSCAN101 Operating Instructions Manual page 10

Technical Data
(Scan engine)
Dimensions
Ambient temperature
Storage temperature
Weight
Optional interfaces
Terminal assignment
(Handheld scanner)
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E‐mail: info@extronics.com Web: www.extronics.com
 Light source: Visible red light, 630nm
 LED safety: LED classification acc. to DIN EN 60825-1
 Scan rate: 500 scans per second
 Reader distance: 50mm to 800mm (0.5mm)
 104 x 76 x 185 mm (length x width x height)
-20°C to +50°C
-30°C to +70°C
ca. 200g (without connection cable)
RS-232 TTL / USB
USB cable
USB/D+ green
USB/D- white
GND black
+UB brown
