i3 International M77R2 User Manual

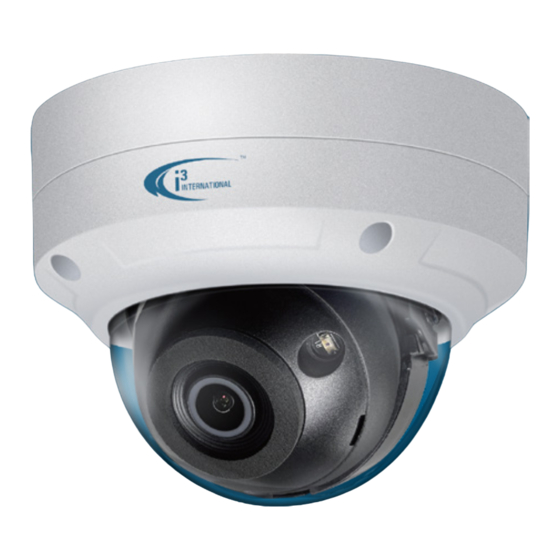

5MP Infrared Mini Outdoor IP Dome Camera
Thank you for purchasing i3 International's M77R2 mini IP dome camera.
M77R2 is equipped with a fixed 2.8mm @ F1.6 lens and true WDR, and supports
h.265 codec compression.
Note: h.265 codec is supported by SRX-Pro v7 and above only. For backwards
compatibility and for web streaming compatibility, the camera is pre-set to h.264.
To switch between h.264 and h.265 compressions in the camera's web settings,
go to Config > Image > Video/Audio > Video Compression.

SAFETY

When installing your M77 camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light and unstable light sources
• temperatures below -30° C (-22° F) and above 50° C (122° F
To avoid electrical shock and to preserve the product warranty, DO NOT
disassemble the camera. Refer servicing to qualified personnel only.

POWER SUPPLY

This camera accepts PoE power.
Ensure the supplied voltage meets the power consumption requirements of this
camera (6W) before powering the camera on. Incorrect voltage may cause irrepa-
rable damage to the video camera and will effectively void the camera warranty.

CLEANING

• For maximum optical clarity, the camera dome or lens must remain clean. Use a
soft, dry cloth to remove finger prints or dust from the dome cover.
• Use a blower to remove dust from the lens.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finishes.

PACKAGE CONTENTS

Ensure that the items received match those listed on the order form and the packing
slip. In addition to this manual and a fully assembled
camera, the dome camera packing box includes:
A. Surface Mount template x1
B. Round Head Screw (Tapping Type) x4
C. Plastic Anchor x4
D. Standard RJ45 Connector x2
E. Hex bit x1
F. Rubber plug x1 (block the camera's
side cable opening in surface installations
where the cable is routed upwards instead
of through the side).
B
C
Scan this QR code or visit
https://i3international.com/support/documentation
to view additional documentation.
Contact our Technical Support team at: 1.877.877.7241 or
support@i3international.com if you have any questions
or concerns regarding camera installation or if you require
software services or support.
i3-TRNG-CAMS-M77R.indd
).
D E
F
User Manual

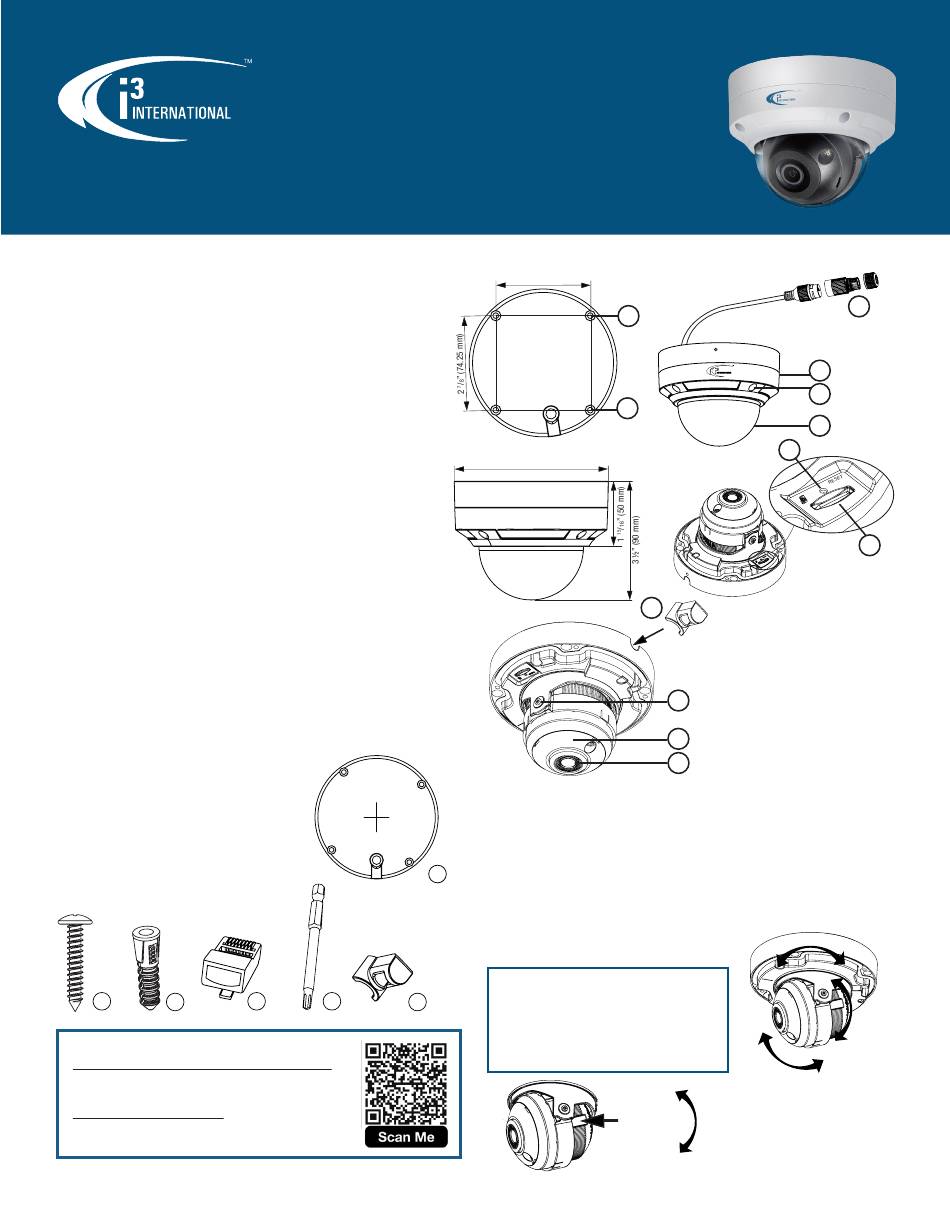

CAMERA PARTS AND DEFINITIONS

2 7 / " (74.25 mm)
8
4 / " (117 mm)
9
16
4. Screws securing the dome cover to camera module (x4, hex, silver)
5. Dome bubble
6. Reset pinhole. Press for 10 seconds to restore camera settings to factory defaults.
7. MicroSD Card slot for on-camera video storage. (MicroSD card sold separately).
8. Cable side opening for surface installations. Block with the provided rubber plug (F)
A
if not using.
9. Tilt bracket with two locking screws. Tilt to adjust lens angle and re-tighten screws
as needed when done.
10. IR board (covered by the black masking plate)
11. Camera lens.

3-AXIS LENS POSITIONING

Important: Do not over-rotate the camera
lens assembly beyond the stop point to prevent
twisted, disconnected, or broken internal cables/
components.
Note: To rotate the lens, tilt the lens assembly
first and use the finger grooves to rotate the
assembly.
M77R2
1
1
6
8
Rubber plug
1. Mounting holes (x4)
(not to scale)
2. RJ45 Ethernet PoE Port with
waterproof RJ45 connector
assembly.
9
Insert an Ethernet cable into
the port for network connection
as well as PoE (Power over
10
Ethernet) power. To maintain
water-resistant rating in outdoor
11
installations, make sure to use
the included waterproof RJ45
Connector assembly.
3. Dome cover
Pan
Tilt
3-axis Range
Limitations:
FINGER
Pan range: 355°
GROOVES
Rotate range: 355°
Tilt range: 67°
Rev. 240202
2
3
4
5
7
Rotate
