OWNER'S INSTALLATION AND OPERATION MANUAL

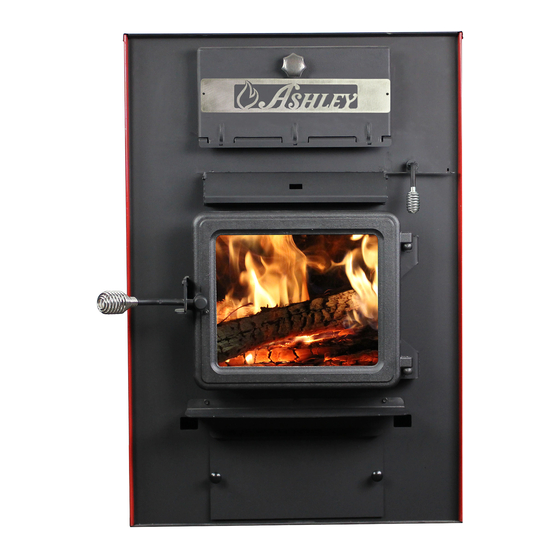

MODEL AF700
THIS MANUAL INCLUDES INSTALLATION AND OPERATION INSTRUCTIONS FOR THE MODEL AF700
FURNACE UTILIZING THE LISTED OPERATIONAL TYPES:
1. WOOD ADD-ON
2. WOOD ONLY
Installation is to be preformed by a
qualifi ed installer.
SAVE THESE INSTRUCTIONS
This unit is certifi ed UL 391
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions
standards.
United States Stove Company
227 Industrial Park Rd.
852426C-3203E
South Pittsburg, TN 37380
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ashley AF700
Summary of Contents for Ashley AF700
- Page 1 OWNER’S INSTALLATION AND OPERATION MANUAL MODEL AF700 THIS MANUAL INCLUDES INSTALLATION AND OPERATION INSTRUCTIONS FOR THE MODEL AF700 FURNACE UTILIZING THE LISTED OPERATIONAL TYPES: 1. WOOD ADD-ON 2. WOOD ONLY Installation is to be preformed by a qualifi ed installer.
- Page 2 CAUTION: The warm air supply outlet of the supplementary furnace shall not be connected to the cold-air return inlet of the central furnace because a possibility exists of components of the central furnace overheating and causing the central furnace to operate other than as intended. ...
-
Page 3: Specifications
SPECIFICATIONS CONGRATULATIONS! You’ve purchased a heater from North America’s oldest manufacturer of wood burning products. By heating with wood you’re helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year. - Page 4 SAFETY Do not operate with fuel loading or ash removal doors open. Do not connect this unit to a chimney fl ue serving another appliance. Danger: Risk of fi re or explosion. Do not burn garbage, gasoline, naphtha, motor oil, or other inappropriate materials.
-
Page 5: Unpacking And Pre-Assembly
UNPACKING AND PRE-ASSEMBLY UNPACKING 1) Remove all packaging from the furnace. 2) Remove the supplied tools and parts from the furnace. A) The supplied ash shovel and poker from the heat exchanger tube, behind the heat exchanger door at the top of the unit. BRICK ALIGNMENT Inspect for any damage. -
Page 6: Furnace Installation
FURNACE INSTALLATION INSTALLATION OPTIONS The installation of this furnace includes supplying electrical power, return (fresh air) ductwork, and supply air ductwork. This furnace may be installed in two different confi gurations. 1) Stand alone wood furnace 2) Add-on wood furnace See kit installation section in this manual to ensure proper assembly, installation and operation of your new furnace. -
Page 7: Floor Protector Requirements
MAINTENANCE CLEARANCES Your furnace has recommended minimum maintenance clearance requirements. These clearances insure that there is adequate room to preform maintenance and service your furnace. DO NOT store fuel within the specifi ed clearances. The clearances will change depending on what kits are installed with your furnace. See the tables and diagram below to determine the clearances for your furnace. -
Page 8: Ductwork Installation
DUCTWORK INSTALLATION We strongly recommend that the hot air ductwork be installed by a home heating specialist. If doing the installation yourself, before you decide which installation will best suit your needs, consult a qualifi ed heating technician and follow his recommendations as to the safest and most effi cient method of installation. This furnace can be installed in three ways, as a stand alone unit, parallel, and in series with an existing furnace. -
Page 9: Stand Alone Installation
STAND ALONE INSTALLATION If installing this furnace as a stand alone unit, ensure all local codes and all instructions in this manual are followed, including clearance to combustibles, fl oor protector specifi cations and safety warnings. PARALLEL FURNACE INSTALLATION To install the new furnace in parallel with an existing furnace follow the instructions for series installation with a few additional requirements listed below. -
Page 10: Add-On Installation
CENTRAL INSTALLATION ADD-ON INSTALLATION... - Page 11 INSTALLATION A TO EXISTING DUCT WORK COLD AIR RETURN WARM AIR EXISTING FURNACE FILTER BOX SOLID FUEL FURNACE INSTALLATION B TO EXISTING DUCT WORK PLENUM COLLECTOR WARM AIR COLD AIR RETURN EXISTING FURNACE FILTER BOX SOLID FUEL FURNACE...
- Page 12 INSTALLATION D INSTALLATION E...
-
Page 13: Top View
INSTALLATION F INSTALLATION G INSTALLATION H TOP VIEW FRONT VIEW... -
Page 14: Accessory Installation
ACCESSORY INSTALLATION ASSEMBLY OF FURNACE Your furnace requires the following items to be assembled or installed by the service person: Blowers and Blower Controls Electrical Connections 1) Remove all parts from inside the furnace and inspect for damage, including the fi rebrick as some breakage could occur during shipment. -
Page 15: Electrical Installation
ELECTRICAL INSTALLATION All electrical connections should be done by a qualifi ed electrician It is recommended to connect the furnace to its own 15 amp 120 Volt circuit from the house power supply NOTE: Wire leads from the distribution blower are usually BOTH BLACK. Makes no difference which leads from the motor(s) connects to the corresponding leads coming out of the conduit. -
Page 16: Chimney Installation
CHIMNEY INSTALLATION CHIMNEY Your wood furnace may be hooked up with a factory built or masonry chimney, matching the diameter of the exhaust. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). -
Page 17: Masonry Chimney
MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the furnace is installed and operated. When connecting the furnace through a combustible wall to a masonry chimney, special methods are needed as explained in the “Combustible Wall Chimney Connector Pass-Throughs”... -
Page 18: Combustible Wall Chimney Connector Pass-Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specifi... -
Page 19: Chimney Connector
CHIMNEY CONNECTOR Your chimney connector and chimney must have the same diameter as the furnace outlet. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft. The furnace pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... -
Page 20: Factory Built Chimney
FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer. -
Page 21: Wood Heat Utilization
WOOD HEAT UTILIZATION The top down method of fi re building is recommended for this appliance. After making sure that the stove air intake controls are fully open (completely pull-out towards you), Place the largest pieces of wood on the bottom, laid in parallel and close together. - Page 22 TYPE WEIGHT PER CORD EFFICIENCY SPLITS MILLIONS (LBS. CU. FT., DRY) RANKING BTU’s/CORD Hickory 4500 Well 31.5 White Oak 4100 Fair 28.6 Red Oak 3900 Fair 27.4 Beech 3800 Hard 26.8 Sugar 3700 Fair 26.2 Maple Black Oak 3700 Fair 25.6 3600 Well...
-
Page 23: Operation
OPERATION NOTICE: To minimize the risk of smoke spillage when opening the door with a fi re in your furnace, crack the door open no more than 1” and wait for at least 10 seconds before opening it more to allow pressure stabilization inside the furnace. Smaller pieces of wood will dry faster. - Page 24 HEATING WITH YOUR WOOD FURNACE 1) Spread the fi re and coals evenly towards the center of the combustion chamber before loading your furnace fully or adding more wood. 2) Avoid overfi lling the combustion chamber. Air must be allowed to circulate freely through the upper portion of the combustion chamber for the stove to perform best.
-
Page 25: Ash Disposal
If a chimney or creosote fi re occurs, close all dampers immediately. Wait for the fi re to go out and the heater to cool, then inspect the chimney for damage. If no damage results, perform a chimney cleaning to ensure there is no more creosote deposits remaining in the chimney. -
Page 26: Over Firing
SMOKE AND CO MONITORS Burning wood naturally produces smoke and carbon monoxide(CO) emissions. CO is a poisonous gas when exposed to elevated concentrations for extended periods of time. While the modern combustion systems in heaters drastically reduce the amount of CO emitted out the chimney, exposure to the gases in closed or confi ned areas can be dangerous. -
Page 27: Maintenance
MAINTENANCE Your wood furnace is a high effi ciency furnace and therefore requires little maintenance. It is important to perform a visual inspection of the furnace every time it is emptied, in order to insure that no parts have been damaged, in which case repairs must be performed immediately. -
Page 28: Replacement Parts
REPLACEMENT PARTS Part No. Description Part No. Description 27312 Side Panel 40627 Heat Exchange Door 891214 Stub Collar, 8” 892351 Exchange Handle 27322 Top Panel 27327 Air Damper 27329 Cabinet Back 26866 Door Latch 26761 Hearth Plate 892503 Damper Handle 26765 Air Wash Plate 891987... - Page 29 REPLACEMENT PARTS Part No. Description 891135 HANDLE, SPRING (LG-NICKEL) 892347 DOOR HANDLE 40603 CAST DOOR 88082 THERMOCORD 3/4” 50” 88087 GLASS GASKET (1 x 1/8) 892346 DOOR GLASS 26848 WINDOW CLAMP 26856 DOOR COVER PLATE IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER.
- Page 30 REPLACEMENT PARTS Part No. Description 27312 Side Panel 891414 Half Firebrick 26596 Firebrick Notched (4-1/2 X 9) 88213 Side Blanket 89066 Firebrick (4-1/2 X 9) 24103 Firebrick, Half (4-1/2 X 4-1/2) 88212 Base Blanket 40561 Ash Plug 88210 Baffl e Board 86757 Tube, Air Secondary (.125 Holes) 83874...
- Page 31 REPLACEMENT PARTS Part No. Description 68234 ASSY, BLOWER/T’STAT BRKT. 68231-1 FAN CNTRL CORD ASSY 80131 4 x 4 JUNCTION BOX 80232 SUPPLY CORD 68231-2 FAN CNTRL CORD ASSY 80230 BLOWER ASSEMBLY 89319 BLOWER GASKET 68231-3 FAN CNTRL CORD ASSY 22140 CONTROL MOUNTING BRACKET 80314 F120 THERMODISC...
- Page 32 NOTES...
- Page 33 NOTES...
-
Page 34: How To Order Replacement Parts
HOW TO ORDER REPLACEMENT PARTS This manual will help you obtain effi cient, dependable service from your stove, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. When writing, always give the full model number which is on the nameplate attached to the stove. When ordering repair parts, always give the following information as shown in this list: The part number _________________________________ The part description _______________________________... - Page 35 WARRANTY INFORMATION CARD Name__________________________________________ Telephone #: (_____)_____________ City____________________________________________ State_______ Zip_________________ Email Address __________________________________________________________________ Model # of Unit________________________________ Serial #___________________________ Fuel Type: Wood Coal Pellet Gas Other _________________________ Place of Purchase (Retailer)______________________________________________________ City____________________________________________ State_______ Zip_________________ If internet purchase, please list website address___________________________________ Date of Purchase _______________________________________________________________ Alternative Heat Main Heat Source...
- Page 36 Fold Here Fold Here Fold Here PLACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380...
