CAUTION!
Please read this entire manual before you install or
use your new room heater.
tions may result in property damage, bodily injury,
or even death.
Improper Installation Could Void
Your Warranty!
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-
DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
French version is available for download from the U. S. Stove website: http://www.usstove.com/
La version française est disponible pour téléchargement à partir du site U. S. Stove: http://www.usstove.com/

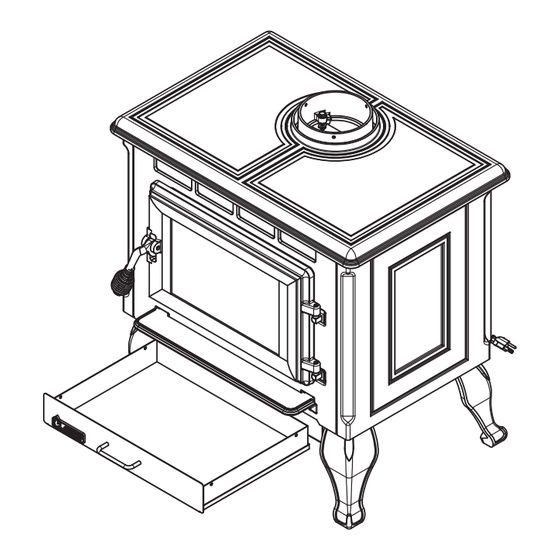

MODEL: AC2000
CONFORMS TO UL STD 1482 and CERTIFIED TO ULC STD S627
WASHINGTON STATE APPROVED
MOBILE HOME APPROVED (U.S. ONLY)
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards.
Failure to follow instruc-
SAVE THESE INSTRUCTIONS
United States Stove Company
227 Industrial Park Road
South Pittsburg, TN 37380
800-750-2723
If this heater is not properly installed, a house fi re may
result. For your safety, follow the installation instruc-
tions. Never use make-shift compromises during the
installation of this heater. Contact local building or
fi re offi cials about permits, restrictions and installa-
tion requirements in your area.
P.O. Box 151
SAFETY NOTICE:
SAFETY NOTICE:
852087E-1904E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ashley AC2000
Summary of Contents for Ashley AC2000
- Page 1 MODEL: AC2000 CONFORMS TO UL STD 1482 and CERTIFIED TO ULC STD S627 WASHINGTON STATE APPROVED MOBILE HOME APPROVED (U.S. ONLY) U.S. Environmental Protection Agency Certified to comply with 2015 particulate emissions standards. CAUTION! SAFETY NOTICE: SAFETY NOTICE: Please read this entire manual before you install or If this heater is not properly installed, a house fi re may use your new room heater.
- Page 2 Th e instructions pertaining to the installation of your wood stove comply with UL-1482 and ULC-S627 standards. Th is manual describes the installation and operation of the Ashley, AC2000 wood heater. Th is heater meets the 2015 U.S. Environ- mental Protection Agency’s crib wood emission limits for wood heaters sold aft er May 15, 2015. Under specifi c test conditions this heater has been shown to deliver heat at rates ranging from 11,817 to 31,713 Btu/hr.
-
Page 3: Tools And Materials Needed For Installation
TOOLS AND MATERIALS NEEDED FOR INSTALLATION You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install pedestal trim, room air defl ector, and blower assembly described below. A 1/2” socket/wrench to install fl ue collar. A non-combustible fl oor protector as specifi ed in this manual. - Page 4 ASSEMBLY INSTRUCTIONS Blower Assembly THE BLOWER ASSEMBLY MUST BE DISCONNECTED FROM THE SOURCE OF ELECTRICAL SUPPLY BEFORE ATTEMPTING THE INSTALLATION. THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY WITH A STOVE THAT IS MARKED TO INDICATE SUCH USE. DO NOT ROUTE THE SUPPLY CORD NEAR OR ACROSS HOT SURFACES! Step 1.
-
Page 5: Installation
INSTALLATION SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. • CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA. •... -
Page 6: Floor Protector
FLOOR PROTECTOR Your wood stove should be placed on a 1 inch, non-combustible surface with a k factor of 0.84. For multiple layers, add R-values of each layer to determine the overall R-value. Th e R value for the required board is 1.03. If there is a horizontal section of chimney connector, the fl oor protector should go under it and 2 inches beyond each side To calculate R-Values for alternative methods, see ALTERNATE FLOOR PROTECTOR CALCULATIONS section in this manual. -
Page 7: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation of the stove. Refer to the tables below : Dimension Inch Backwall to Stove Sidewall to Stove Wall to corner (Angled Installation) Backwall to Flue 21.5 Sidewall to Flue... -
Page 8: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft . Th e stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... - Page 9 CHIMNEY Your wood stove may be hooked up with a 6” factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifi cations.
-
Page 10: Factory Built Chimney
FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. -
Page 11: Masonry Chimney
MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 12: Combustible Wall Chimney Connector Pass-Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) mini- mum wall thickness clay liner, construct a wall pass-through. Th e clay liner must conform to ASTM C315 (Standard Specifi cation for Clay Fire Linings) or its equivalent. -
Page 13: Outside Combustion Air
OUTSIDE COMBUSTION AIR Your wood stove is approved to be installed with an outside air intake which is necessary for a mobile home. Th is type of installation is also required in air tight houses and houses with negative pressure problems. You can purchase this option through your heater dealer. - Page 14 WOODSTOVE UTILIZATION This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: Garbage; Manure or animal remains; Lawn clippings or yard waste;...
-
Page 15: Testing Your Wood
Once the updraft movement is initiated, you are ready to ignite the stove by lighting the paper and kindling wood inside the combustion chamber. When you have achieved a good bed of hot embers, we recommend the following burn procedures: AC2000 Primary Air Settings Electric Blower Speed Setting... - Page 16 WARNINGS • NEVER OVERFIRE YOUR STOVE. IF ANY PART OF THE STOVE STARTS TO GLOW RED, OVER FIRING IS HAPPENING. READJUST THE AIR INTAKE CONTROL AT A LOWER SETTING. • THE INSTALLATION OF A LOG CRADLE or GRATES IS NOT RECOMMENDED IN YOUR WOOD STOVE.
-
Page 17: To Prevent Creosote Build Up
TO PREVENT CREOSOTE BUILD UP • Always burn dry wood. Th is allows clean burns and higher chimney temperatures, therefore less creosote deposit. • Leave the air control full open for about 5 min. every time you reload the stove to bring it back to proper operating temperatures. Th e secondary combustion can only take place if the fi rebox is hot enough. -
Page 18: Maintenance
MAINTENANCE Your wood stove is a high effi ciency stove and therefore requires little maintenance. It is important to perform a visual inspection of the stove every time it is emptied, in order to insure that no parts have been damaged, in which case repairs must be performed immediately. -
Page 19: Repair Parts
REPAIR PARTS Part No. Description Qty. Part No. Description Qty. 69768 Weldment, Ash Pan Housing 891373 Pad, Door Hinge (Threaded) 69767 Ash Pan Weldment 69738 Weld., Damper Slide 40566 Leg, Cast Iron 40292A 6" Flue Collar 40587 25080 Latch, Door 40569 Door Retangular Large 891137... - Page 20 REPAIR PARTS Feed Door Assembly Feed Door Assembly Part No. Description Qty. 40569 Door, Rectangular-Large 40515 Handle 83506 3/8 x 1-1/4 Roll Pin 88057 1/2” Rope Gasket 5 FT 891813 Door Glass (40564) 88174 Gasket-Flat, Glass (3/16T x 3/8W) 6 FT Joint Tape 25465 Retainer, Bottom Glass...
- Page 21 ALTERNATE FLOOR PROTECTOR CALCULATIONS Alternate materials may be rated with C-factor (Thermal Conductance) or k-factor (Thermal Conductivity) ratings which must be converted to R-value to determine if the alternate material meets the tested requirements. The following instructions provide the proper information and formulas for conversion to R-value. To determine if alternate materials are acceptable follow this sequence.
-
Page 22: How To Order Repair Parts
HOW TO ORDER REPAIR PARTS THIS MANUAL WILL HELP YOU OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM YOUR HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. WHEN WRITING, ALWAYS GIVE THE FULL MODEL NUMBER WHICH IS ON THE NAMEPLATE ATTACHED TO THE HEATER. - Page 23 WARRANTY INFORMATION CARD Name__________________________________________ Telephone #: (_____)_____________ City____________________________________________ State_______ Zip_________________ Email Address __________________________________________________________________ Model # of Unit________________________________ Serial #___________________________ Fuel Type: Wood Coal Pellet Gas Other _________________________ Place of Purchase (Retailer)______________________________________________________ City____________________________________________ State_______ Zip_________________ If internet purchase, please list website address___________________________________ Date of Purchase _______________________________________________________________ Alternative Heat Main Heat Source...
- Page 24 Fold Here Fold Here Fold Here PLACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380...
