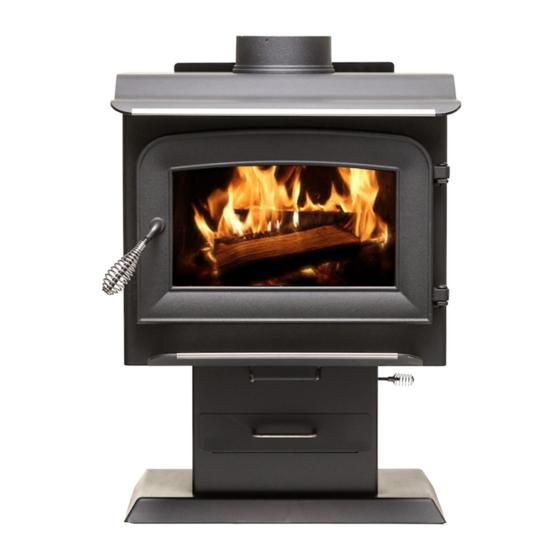

Ashley AW1120E-P Owner’s Instruction And Operation Manual

Hide thumbs Also See for AW1120E-P:

Owner’s instruction and operation manual (45 pages)

Table Of Contents

Table of Contents

Quick Links

Owner's Instruction and Operation Manual

Model Numbers:

AW1120E-P • AW1120E-BP

AW1120E-L • AW1120E-BL

Report Number: F19-473

Tested Per EPA Methods ALT-125, ASTM

E2515, ASTM E3053 and CSA B415

Certified to UL 1482-2011 (R2015) and

ULC-S627-00-REV1

Mobile home approved USA & Canada

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

Save These Instructions In A Safe Place For Future Reference.

SAFETY NOTICE: If this heater is not properly installed, a house fire may result.

For your safety, follow the installation instructions. Never use make-shift

compromises during the installation of this heater. Contact local building or

fire officials about permits, restrictions and installation requirements in your

area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury,

or even death. Improper Installation Will Void Your Warranty!

U.S. Environmental Protection Agency

Certified to comply with 2020 particulate

emissions standards.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to

853573H-1805K

www.P65warnings.ca.gov

Ph. 800-750-2723

Table of Contents

Need help?

Do you have a question about the AW1120E-P and is the answer not in the manual?

Questions and answers

Summary of Contents for Ashley AW1120E-P

Page 1 Owner’s Instruction and Operation Manual Model Numbers: AW1120E-P • AW1120E-BP AW1120E-L • AW1120E-BL Report Number: F19-473 Tested Per EPA Methods ALT-125, ASTM E2515, ASTM E3053 and CSA B415 Certified to UL 1482-2011 (R2015) and ULC-S627-00-REV1 Mobile home approved USA & Canada * All Pictures In This Manual Are For Illustrative Purposes Only.
Page 2 INTRODUCTION This manual describes the installation and operation of the Ashley, AW1120E wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 15,196 to 40,594 Btu/hr with 1.7 g/hr and 69% efficiency.
Page 3: Installation Checklist
INSTALLATION CHECKLIST Your Wood Stove should be installed by a qualified installer only. An NFI qualified Installer can be found at www.nficertified.org/public/find-an-nfi-pro/ CUSTOMER SERVICE 1-800-750-2723 ext 5050 Text to 423-301-5624 Email to: Customerservice@usstove.com COMMISSIONING CHECKLIST This Checklist is to be completed in full by the qualified person who installs this unit. Keep this page for future reference.
Page 4: Tools And Materials
ASSEMBLY INSTRUCTIONS For Customer Service Call: 800-750-2723 Ext 5050 TOOLS AND MATERIALS ASH PAN ASSEMBLY You will need a drill with a 1/8” bit to install sheet metal Remove ash pan from firebox. Under the firebox, screws into connector pipe. A 5/16” socket/wrench there are two brackets;...
Page 5: Installation
ASSEMBLY INSTRUCTIONS FIREBRICK CONFIGURATION AIR DEFLECTOR ASSEMBLY Replace the Firebrick as shown in the illustration. Use the provided screws to attach the air deflector to the rear of the unit. INSTALLATION SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
Page 6: Floor Protector
INSTALLATION FLOOR PROTECTOR • A flue pipe crossing a combustible wall must have a minimum clearance of 18” (458 mm). This heater must have a non-combustible floor protector (ember protection) installed beneath it if • To reduce flue clearances from combustible the floor is of combustible material.
Page 7 INSTALLATION SECURING APPLIANCE’S ON A Your stove does not draw steadily, smoke roll-out occurs, wood burns poorly, or back-drafts occur PEDESTAL TO THE FLOOR whether or not there is combustion present. Use the designated holes to secure the unit to the floor.
Page 8: Chimney Connector (Stove Pipe)
INSTALLATION In addition to the previously detailed installation of 0.021” or 0.53 mm. It is strictly forbidden to requirements, mobile home installations must use galvanized steel. The smoke pipe should be meet the following requirements: assembled to promote the male section (crimped end) of the pipe to be faced down.
Page 9: Factory Built Chimney
INSTALLATION Your wood stove may be hooked up with a 6” package or wall pass-through and “T” section factory-built or masonry chimney. If you are using package, firestops (where needed), insulation a factory-built chimney, it must comply with UL 103 shield, roof flashing, chimney cap, etc.
Page 10 INSTALLATION Concrete Cap Fireclay Flue Liner With Airspace 1” Clearance with Firestop Rafter Flashing Flashing Eave Combustible Wall 1” Clearance Thimble 12” of Brick METHOD 9” (228.6 mm) Clearance to Combustible Wall Member: Using a 6” (152.4 mm) inside diameter, listed, factory-built Solid-Pak Sheathing chimney section with insulation of 1”...
Page 11 INSTALLATION wall thimble, and cover its opening with a 24-gage plates at both ends of chimney section. Cover minimum sheet metal support. Maintain the 6” opening with and support chimney section on both (152.4 mm) space. There should also be a support sides with 24 gage minimum sheet metal supports.
Page 12 OPERATION INSTRUCTIONS NEVER OPERATE THIS PRODUCT WHILE UNATTENDED OPERATING SAFETY PRECAUTIONS CAUTIONS: HOUSE FIRE HAZARDS • NEVER OVERFIRE THIS APPLIANCE BY • DO STORE WOOD FLOOR BUILDING EXCESSIVELY HOT FIRES AS A PROTECTOR, UNDERNEATH STOVEPIPE(S) HOUSE/BUILDING FIRE MAY RESULT. YOU OR ANYWHERE WITHIN CLEARANCES TO ARE OVERFIRING THE APPLIANCE IF IT COMBUSTIBLE SURFACES SPECIFIED FOR...
Page 13: Testing Your Wood
OPERATION INSTRUCTIONS these materials does not prohibit the use of fire the number of logs burned at a time but make sure starters made from paper, cardboard, sawdust, the temperature never rises higher than 475 °F (246 wax, and similar substances to start a fire in an °C) on a magnetic thermometer for installation on affected wood heater.
Page 14: Fueling Instructions
OPERATION INSTRUCTIONS fire is established a lower burn rate may be a better cordwood. NOTE: Use smaller pieces of wood during option for efficient heating. A lower burn rate slows start-up and a high burn rate to increase the stove the flow of usable heat out of the home through temperature.
Page 15: Air Tubes
OPERATION INSTRUCTIONS VISIBLE SMOKE setting, follow the same procedure as a medium burn for loading and initial ignition. After 5 minutes The amount of visible smoke being produced can be of burning, slowing move your air to the fully closed an effective method of determining how efficiently position.
Page 16: Chimney Maintenance
CHIMNEY MAINTENANCE NEVER OPERATE THIS PRODUCT WHILE UNATTENDED • Leave the air control fully open for about 5 min. CAUTION: every time you reload the stove to bring it back DO NOT OVERFIRE APPLIANCE. YOU ARE to proper operating temperatures. The secondary OVERFIRING IF ANY PART OF THE APPLIANCE combustion can only take place if the firebox is GLOWS RED.
Page 17: Glass Care
CHIMNEY MAINTENANCE SMOKE & CO MONITORS the stores where wood stoves are sold. The glass should be washed only when cold. Burning wood naturally produces smoke and carbon monoxide(CO) emissions. CO is a poisonous GASKET CARE gas when exposed to elevated concentrations for extended periods.
Page 18 OPTIONAL B36 BLOWER WIRING DIAGRAM DANGER: SHOCK HAZARD DISCONNECT POWER SOURCE BEFORE INSTALLATION AND WHENEVER SERVICING BLOWER ASSEMBLY. CAUTION: MOVING PARTS CAN CAUSE INJURY. DO NOT OPERATE WITH COVER REMOVED. WHITE / BLACK / BLACK / BLANC NOIR NOIR BLACK / BLACK / BLACK / NOIR...
Page 19: Repair Parts
REPAIR PARTS Part# Description 29139 Air Deflector 891824 Heatshield Weldment 40292A 6” Flue Collar 88042 1/4” Rope Gasket 892292 Hearth Trim 891137 Brushed Nickel Handle 29035 Ashpan 610923 Pedestal Weldment (AW1120E-BP) 610928 Damper Weldment 610918 Access Panel 86709 Damper Rod 891331 Spring Handle - Brushed 29034...
Page 20 REPAIR PARTS Part# Description 893241-AW Complete Door Handle 40883 Medium Arched Door 88324 1” Rope Gasket 893159 Clear Glass 29227 Top Glass Retainer 29229 Side Glass Retainer 29230 Gasket Clamp 29228 Bottom Glass Retainer 892294 Hinge Pin To order parts: Call 1-800-750-2723 Ext 5051 or Email to: parts@usstove.com Part#...
Page 21: Service Record
SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary.
