SAVE THESE INSTRUCTIONS THIS MANUAL WILL HELP YOU TO
OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER,
AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY.
KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
SAFETY NOTICE: If this heater is not properly installed, a
house fire may result. For your safety, follow the installation
instructions. Never use make shift compromises during
the installation of this heater. Contact local building or
fire officials about permits, restrictions and installation
requirements in your area.
CAUTION! Please read this entire manual before you install
or use your new room heater. Failure to follow instructions
may result in property damage, bodily injury, or even
death. Improper Installation Could Void Your Warranty!
ALL PICTURES SHOWN ARE FOR ILLUSTRATIVE PURPOSES
ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT
ENHANCEMENT.
This manual is subject to change without notice.
U.S. Environmental Protection Agency
Certified
to
comply
Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de
particulate emissions standards.
carbone, lesquels sont reconnus dans l'État de la Californie comme causant le cancer et
des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de
renseignements, veuillez consulter le site www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov

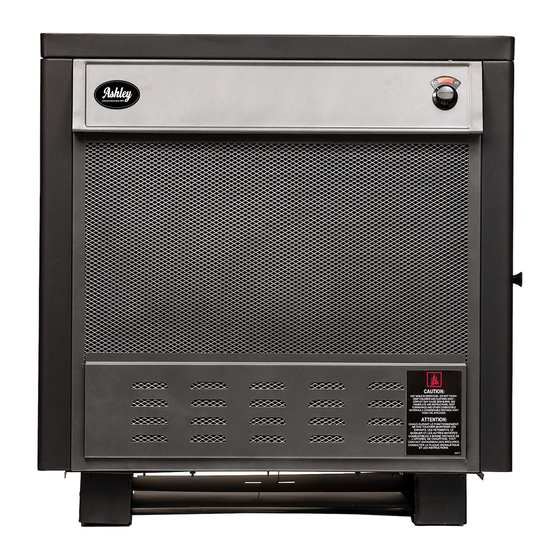

MODEL: AW40
with
2020
United States Stove Company
227 Industrial Park Rd.,
South Pittsburg, TN 37380
PH: (800) 750-2723
www.usstove.com
Report #: F20-596
Tested to ALT-125, ASTM E2515,
ASTM E3053 and CSA B415.1-10
Certified to: UL 1482-11 (R2015) and
Certified to: ULC-S627-00
Room Heater, Solid Fuel Type, Also
For Use In Mobile Homes (USA Only)
853757B-2404J
R
Advertisement
Table of Contents
Related Manuals for Ashley AW40
Summary of Contents for Ashley AW40
- Page 1 MODEL: AW40 SAVE THESE INSTRUCTIONS THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. SAFETY NOTICE: If this heater is not properly installed, a house fire may result.
- Page 2 The instructions pertaining to the installation of your wood stove comply with UL-1482 (R2015) and ULC-S627-00 (R2016) standards. This manual describes the installation and operation of the Ashley, AW40 wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s cordwood emission limits for wood heaters sold after May 15, 2020.
- Page 3 Assembly Instructions UNPACK AND INSPECT 2. Place the knob on the outside of the cabinet door, re-install the machine screw and tighten. Be Remove the packing from the appliance and inspect careful not to strip out the threads in the handle. for any damage.
-
Page 4: Installation
SMOKE CURTAIN INSTALLATION 3. Slide the smoke curtain through the fire door and hook into place. Note: the smoke curtain has a 1. Open the cabinet door and the fire door. bend at the bottom. When placing the smoke Cabinet Door curtain into place ensure the bend it facing toward the fire door as shown. -
Page 5: Floor Protector
FLOOR PROTECTOR This heater must have a non-combustible floor protector with a minimum type 1 ember protection extending beneath the heater if the floor is constructed of combustible material. If a floor pad is used, it should be UL listed or equal. The floor protector should be large enough to extend under the stove and beyond each side as indicated. - Page 6 SPECIAL MOBILE HOME REQUIREMENTS (APPROVED FOR USE IN MOBILE HOMES (USA ONLY) WARNING - DO NOT INSTALL IN A SLEEPING ROOM. CAUTION - THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED. In addition to the previously detailed installation requirements, mobile home installations must meet the following requirements: •...
- Page 7 2. Slide the tail portion of the weather hood through the hole. Secure the weather hood with the provided screws at each of the four corners. Caulk around the edges of the hood and screws to seal. This task should be done after the stove has been installed and the exhaust piping routed.
-
Page 8: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the case, we recommend you contact your dealer in order to ensure there will be no problem with the draft. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... -
Page 9: Factory Built Chimney
FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass- through and “T” section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. -
Page 10: Combustible Wall Chimney Connector Pass-Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 11: Fuel Recommendations
Fuel Recommendations WOODSTOVE UTILIZATION Your heating appliance was designed to burn wood only; no other materials should be burned. Waste and other flammable materials should not be burned in your stove. Any type of wood may be used in your stove, but specific varieties have better energy yields than others. -
Page 12: Operating Safety Precautions
Operating Instructions CAUTIONS: HOUSE FIRE HAZARDS • Do not store wood on floor protector, underneath stovepipe(s) if applicable, or anywhere within clearances to combustible surfaces specified for this appliance. • Never operate with secondary tubes, fiber board, or insulation removed. OPERATING SAFETY PRECAUTIONS •... -
Page 13: Fueling Instructions
TAMPER WARNING This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. EFFICIENCIES Efficiencies can be based on either the lower heating value (LHV) or the higher heating value (HHV) of the fuel. -
Page 14: Adding Fuel
For a low burn setting once the high burn (or medium) fuel load is burned down to an established coal bed, load the unit with 27-28 lbs of cordwood and keep the door slightly open for 5 minutes. Leave the air control fully open (in the “HI”... -
Page 15: Chimney Maintenance
BLOWER OPERATION The variable speed blower circulates air warmed by the firebox into the living area to distribute the heat more evenly. The blower control knob is located on the side of the blower housing. Turn the knob clockwise to turn the blower on. -
Page 16: Blower Wiring Diagram
CAUTIONS: • ASHES COULD CONTAIN HOT EMBERS EVEN AFTER TWO DAYS WITHOUT OPERATING THE STOVE. • THE ASH PAN CAN BECOME VERY HOT. WEAR GLOVES TO PREVENT INJURY. • NEVER BURN THE STOVE WITH THE ASH TRAP OPEN. THIS WOULD RESULT IN OVER FIRING THE STOVE. DAMAGE TO THE STOVE AND EVEN HOUSE FIRE MAY RESULT. -
Page 17: Repair Parts
67859 Base Weldment 27466 Top Back Spacer 22110 Heat Shield IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. -17-... - Page 18 Ash Door Hinge 88032 1” Rope Fiber 2.5 ft 40764 Cast Door IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. -18-...
-
Page 19: Service Provider
Service Record It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary. -
Page 20: How To Order Repair Parts
How To Order Repair Parts This manual will help you obtain efficient, dependable service from your heater, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. When writing, always give the full model number which is on the nameplate attached to the heater. When ordering repair parts, always give the following information as shown in this list: 1. - Page 22 -22-...
- Page 23 -23-...
- Page 24 -24-...
