THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
U.S. Stove
227 Industrial Park Road P.O. Box 151 South
Pittsburg, TN 37380
(800) 750-2723 • www.usstove.com
MODEL: AWC21
Approved for installation in the U.S.A.
CONFORMS TO UL 1482, AND CERTIFIED TO ULC-S627
ALSO SUITABLE FOR MOBILE HOME INSTALLATION.
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards
SAVE THESE INSTRUCTIONS
Please read this entire manual before you install or use
your new room heater. Failure to follow instructions may
result in property damage, bodily injury, or even death.
I m p r o p e r I n s t a l l a t i o n C o u l d Vo i d Yo u r Wa r r a n t y !
SAFETY NOTICE:
If this heater is not properly installed, a house fire may result.
For your safety, follow the installation instructions. Never
use make-shift compromises during the installation of this
heater. Contact local building or fire officials about permits,
restrictions and installation requirements in your area.
CAUTION!
852327D-2501G
Advertisement
Table of Contents
Related Manuals for Ashley AWC21
Summary of Contents for Ashley AWC21
- Page 1 MODEL: AWC21 CAUTION! Please read this entire manual before you install or use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. I m p r o p e r I n s t a l l a t i o n C o u l d Vo i d Yo u r Wa r r a n t y ! SAFETY NOTICE: If this heater is not properly installed, a house fire may result.
-
Page 2: Specifications

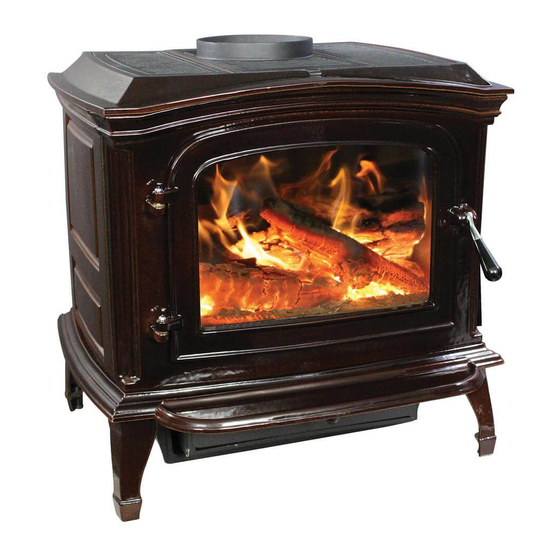

Future generations will thank you. This manual describes the installation and operation of the Ashley, AWC21 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 10,925 to 24,900 Btu/hr. -
Page 3: Pre-Assembly
PRE-ASSEMBLY UNPACK AND INSPECT Remove the packing from the appliance and inspect for any damage. Ensure that the bricks are positioned correctly and not broken (see illustration for proper brick arrangement). Make sure that the baffle board, above the air tubes, is in place and undamaged. DO NOT remove the baffle board. -
Page 4: Floor Protector
INSTALLATION FLOOR PROTECTOR The stove must be placed on solid concrete, solid masonry, or when installed on a combustible floor, on a floor protector. The floor protector is required to provide heat, live ember, and ash protection and must be of a non-combustible, continuous solid surface to protect against infiltration of live embers and ash. - Page 5 VENTILATION COMBUSTION AIR ASSEMBLY INSTRUCTIONS This appliance requires a source of combustion air. If your home is of tight construction or has negative pressure problems, you will need an outside source of air. Below is a list of possible indicators that a source of outside combustion air may be required. 1.
- Page 6 VENTILATION CHIMNEY Your wood stove may be hooked up with a factory built or masonry chimney, matching the diameter of the stove exhaust. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifications.
-
Page 7: Masonry Chimney
VENTILATION MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 8: Combustible Wall Chimney Connector Pass-Throughs
VENTILATION COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent. -
Page 9: Chimney Connector (Stove Pipe)
VENTILATION CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet. If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft. The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... -
Page 10: Installation
INSTALLATION SAFETY NOTICE ¾ IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. ¾ CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA. ¾... -
Page 11: Factory Built Chimney
VENTILATION FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. - Page 12 WOODSTOVE UTILIZATION WOODSTOVE UTILIZATION This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: Garbage;...
-
Page 13: Testing Your Wood
WOODSTOVE UTILIZATION CAUTIONS: ¾ ASHES COULD CONTAIN HOT EMBERS EVEN AFTER TWO DAYS WITHOUT OPERATING THE STOVE. ¾ THE ASH PAN CAN BECOME VERY HOT. WEAR GLOVES TO PREVENT INJURY. ¾ NEVER BURN THE STOVE WITH THE STOVE DOOR OR ASH CLEAN OUT OPENING UNSEALED . THIS WOULD RESULT IN OVER FIRING THE STOVE. -
Page 14: Operational Tips
WOODSTOVE UTILIZATION OPERATION Controlled combustion is the most efficient technique for wood heating because it enables you to select the type of combustion you want for each given situation. The wood will burn slowly if the wood stove air intake control is adjusted to reduce the oxygen supply in the combustion chamber to a minimum. -
Page 15: Maintenance
WOODSTOVE UTILIZATION thermometer will indicate the temperature of your gas exhaust fumes within the smoke exhaust system. The ideal temperature for these gases is somewhere between 275°F and 500°F. Below these temperatures, the build-up of creosote is promoted. Above 500 degrees, heat is wasted since a too large quantity is lost into the atmosphere. -
Page 16: Secondary Air Tubes
SECONDARY AIR TUBES The secondary air tubes must be cleaned with a wire brush. If debris remains in holes lightly tap with a wooden stick to remove. FIREBRICK The firebrick should be cleaned and inspected as necessary. Replace any damaged or broken brick. AIR TUBES The air tubes assembled in this unit are designed to provide an accurate mix of secondary air to insure the highest efficiency. -
Page 17: Troubleshooting
TROUBLESHOOTING High Fuel Consumption Possible Cause Possible Remedies (Unplug blower first if equipped) Improper regulation of draft or air inlet Close air inlet control as much as possible to maintain desired heat output. Check all gaskets, reinstall if necessary (see maintenance for gasket replacement procedure). -
Page 18: Repair Parts
REPAIR PARTS Key Part Description Qty. 89066 Firebrick (4-1/2 X 9) 891492 Blower Assembly (B36) 891414 Half Firebrick 86656 Secondary Air Tubes 86655 Secondary Air Tube, Rear 69942 Heatshield Weldment 891095 Firebrick (60 X 8-1/4) 891987 Plastic Knob 69945 Weldment, Ash Pan 86668 Damper Rod 83614... - Page 19 REPAIR PARTS Part Description Qty. 40675 Glass Brace 88087 Fiberglass Gasket 892342 Door Glass 88057 1/2” Fiberglass Rope Gasket 3.5Ft 40674 Cast Door 40626 Door Latch 892352 Plastic Handle IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL MANUFACTURERS PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM THE APPLIANCE MANUFACTURER.
- Page 20 Limited Warranty Plate Steel Heaters (Inserts, Freestanding, and Pedestal) The operation of this heater in a manner inconsistent with the owner’s manual will void the warranty and is also against federal regulations. United States Stove Company warrants to the original purchaser its products against premature failure of any component due to workmanship, quality, or materials as follows: TIME PERIOD: Firebox ............................
- Page 21 REPAIR PARTS It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
-
Page 22: How To Order Repair Parts
HOW TO ORDER REPAIR PARTS This manual will help you obtain efficient, dependable service from your stove, and enable you to order repair parts correctly. Keep this manual in a safe place for future reference. When writing, always give the full model number which is on the nameplate attached to the stove. When ordering repair parts, always give the following information as shown in this list / Ce manuel vous aidera à...
