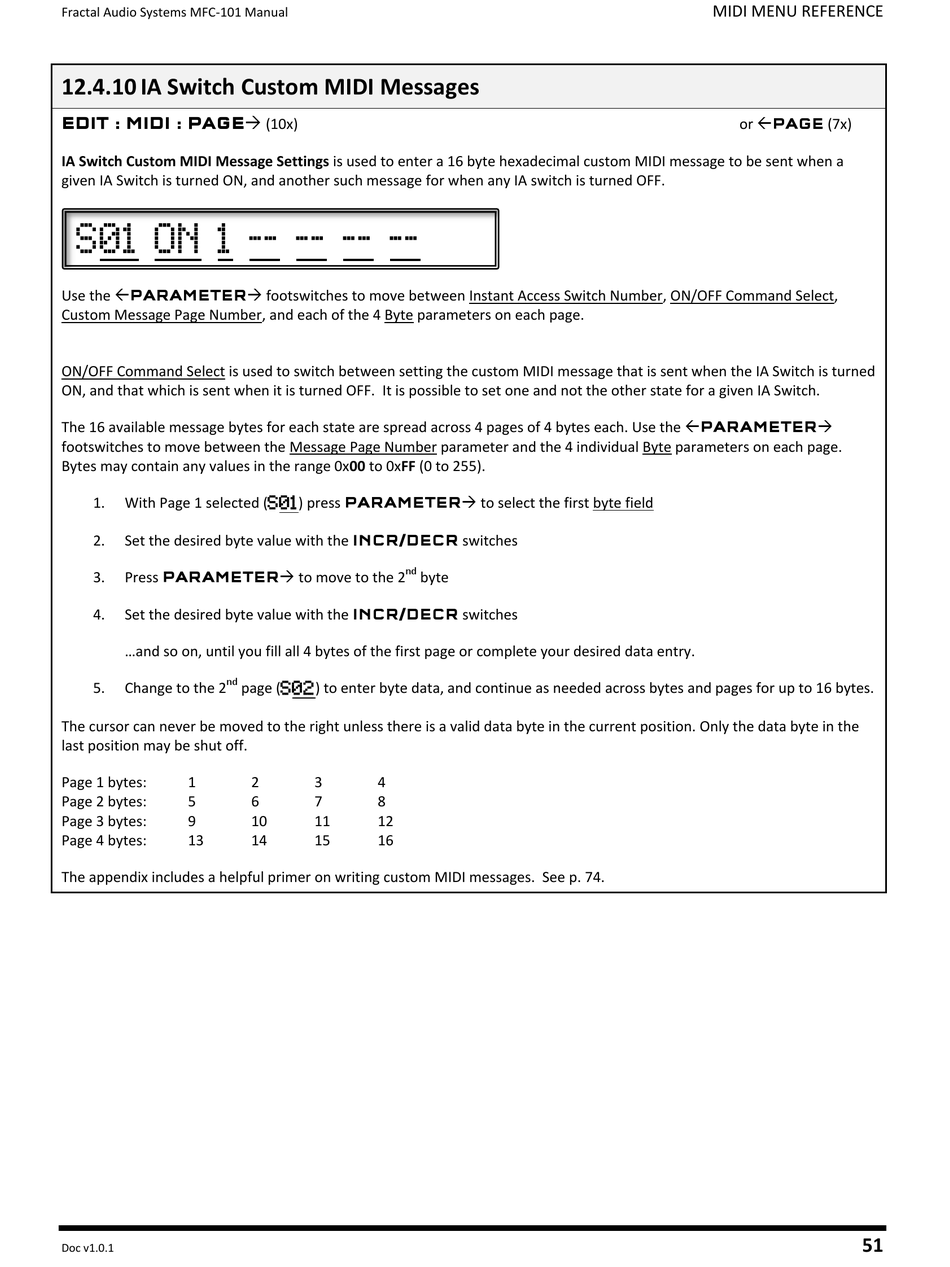

12.4.10 IA Switch Custom MIDI Messages

EDIT : MIDI : PAGE
IA Switch Custom MIDI Message Settings is used to enter a 16 byte hexadecimal custom MIDI message to be sent when a
given IA Switch is turned ON, and another such message for when any IA switch is turned OFF.
Use the PARAMETER footswitches to move between Instant Access Switch Number, ON/OFF Command Select,
Custom Message Page Number, and each of the 4 Byte parameters on each page.
ON/OFF Command Select is used to switch between setting the custom MIDI message that is sent when the IA Switch is turned
ON, and that which is sent when it is turned OFF. It is possible to set one and not the other state for a given IA Switch.
The 16 available message bytes for each state are spread across 4 pages of 4 bytes each. Use the PARAMETER
footswitches to move between the Message Page Number parameter and the 4 individual Byte parameters on each page.
Bytes may contain any values in the range 0x00 to 0xFF (0 to 255).
1. With Page 1 selected ( S01 ) press PARAMETER to select the first byte field
2. Set the desired byte value with the INCR/DECR switches
3. Press PARAMETER to move to the 2
4. Set the desired byte value with the INCR/DECR switches
...and so on, until you fill all 4 bytes of the first page or complete your desired data entry.
nd
5. Change to the 2
The cursor can never be moved to the right unless there is a valid data byte in the current position. Only the data byte in the
last position may be shut off.
Page 1 bytes: 1
Page 2 bytes: 5
Page 3 bytes: 9
Page 4 bytes: 13
The appendix includes a helpful primer on writing custom MIDI messages. See p. 74.
Doc v1.0.1
(10x)
nd
page ( S02 ) to enter byte data, and continue as needed across bytes and pages for up to 16 bytes.
2 3 4
6 7 8
10 11 12
14 15 16
byte
