1.3 Software Map

PERFORMANCE MODE is always running while the MFC-101 is used normally as a MIDI foot controller. Depending
on the desired function, it may be placed into one of three "Operating Modes": PRESET, SONG or SET MODE.
AXE-FX MODE may be switched ON or OFF "on top" of the above modes to provide enhanced Axe-Fx control.
EDIT MODE is separate from PERFORMANCE MODE and is used to access to the MENUS which are used to
configure the MFC-101. These menus are numbered 1 –5 below for the footswitches which access them.
Each menu contains a number of PAGES (listed below in columns). Each page has one or more parameters detailed
throughout this manual.
• Select Preset
• Preset Name
• Preset Program Changes
• Preset IA Switch States
• Preset Internal CC States
• Preset Custom MIDI Msg.
• Preset Ext. Switch Settings
• Preset Ext. Sw. On/Off Vals.
• Preset Exp. Pedal Settings
• Preset Exp. Pdl. Min/Max Vals.
The footswitch for the currently selected menu returns to the top level of the EDIT menu.
Doc v1.0.1
• Song Edit
• Copy Preset
• Song Name
• Copy Bank
• Set Edit
• Copy Song
• Set Name
• Copy Set
• Copy IA Switch
• Copy Internal CC

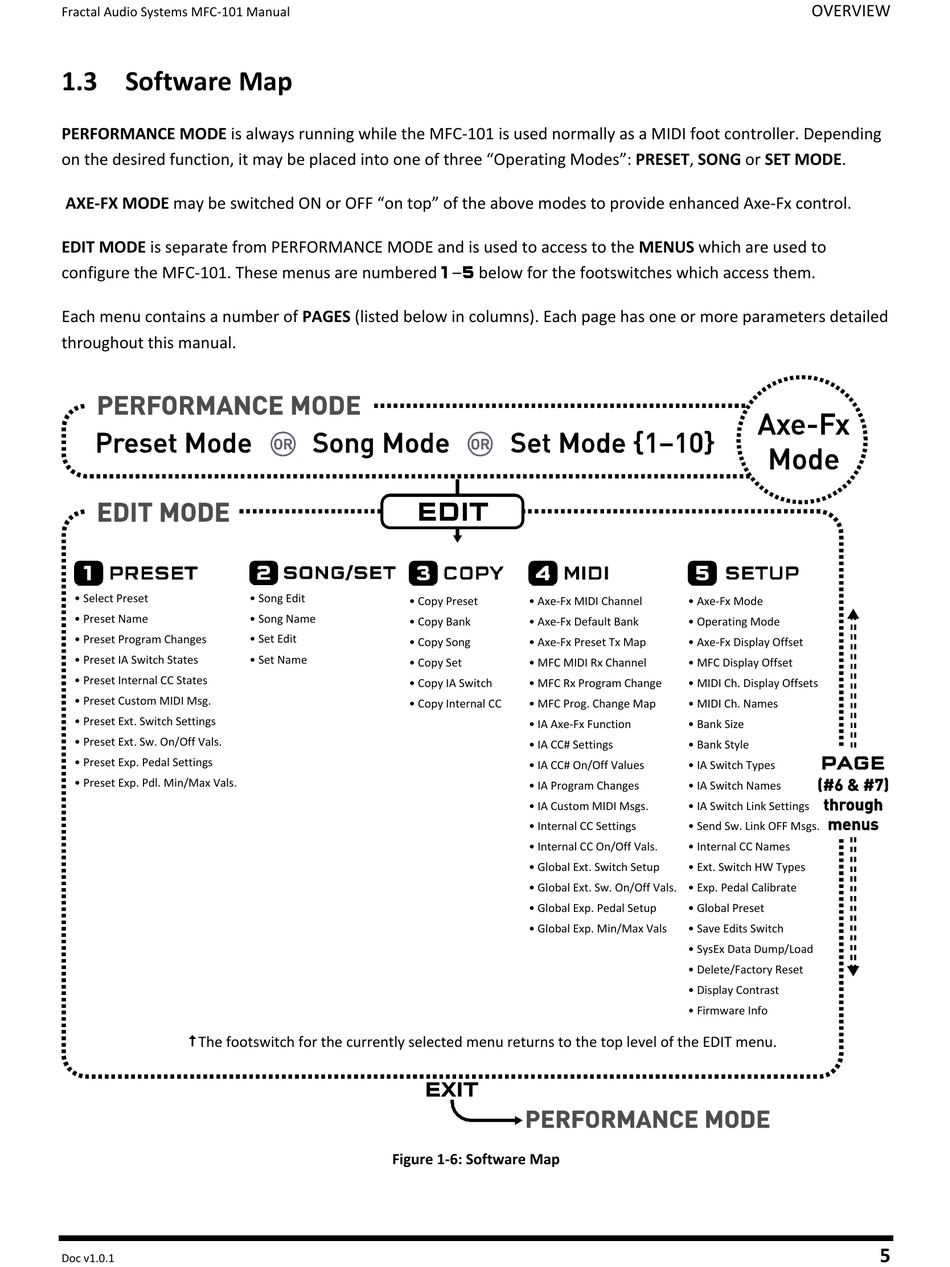

Figure 1-6: Software Map

• Axe-Fx MIDI Channel • Axe-Fx Mode
• Axe-Fx Default Bank • Operating Mode
• Axe-Fx Preset Tx Map • Axe-Fx Display Offset
• MFC MIDI Rx Channel • MFC Display Offset
• MFC Rx Program Change • MIDI Ch. Display Offsets
• MFC Prog. Change Map • MIDI Ch. Names
• IA Axe-Fx Function • Bank Size
• IA CC# Settings • Bank Style
• IA CC# On/Off Values • IA Switch Types
• IA Program Changes • IA Switch Names
• IA Custom MIDI Msgs. • IA Switch Link Settings
• Internal CC Settings • Send Sw. Link OFF Msgs.
• Internal CC On/Off Vals. • Internal CC Names
• Global Ext. Switch Setup • Ext. Switch HW Types
• Global Ext. Sw. On/Off Vals. • Exp. Pedal Calibrate
• Global Exp. Pedal Setup • Global Preset
• Global Exp. Min/Max Vals • Save Edits Switch
• SysEx Data Dump/Load
• Delete/Factory Reset
• Display Contrast
• Firmware Info
