BASIC SETTINGS
Fractal Audio Systems MFC-101 Manual
3.5 Starting Up
PRESET MODE+AXE-FX MODE ON

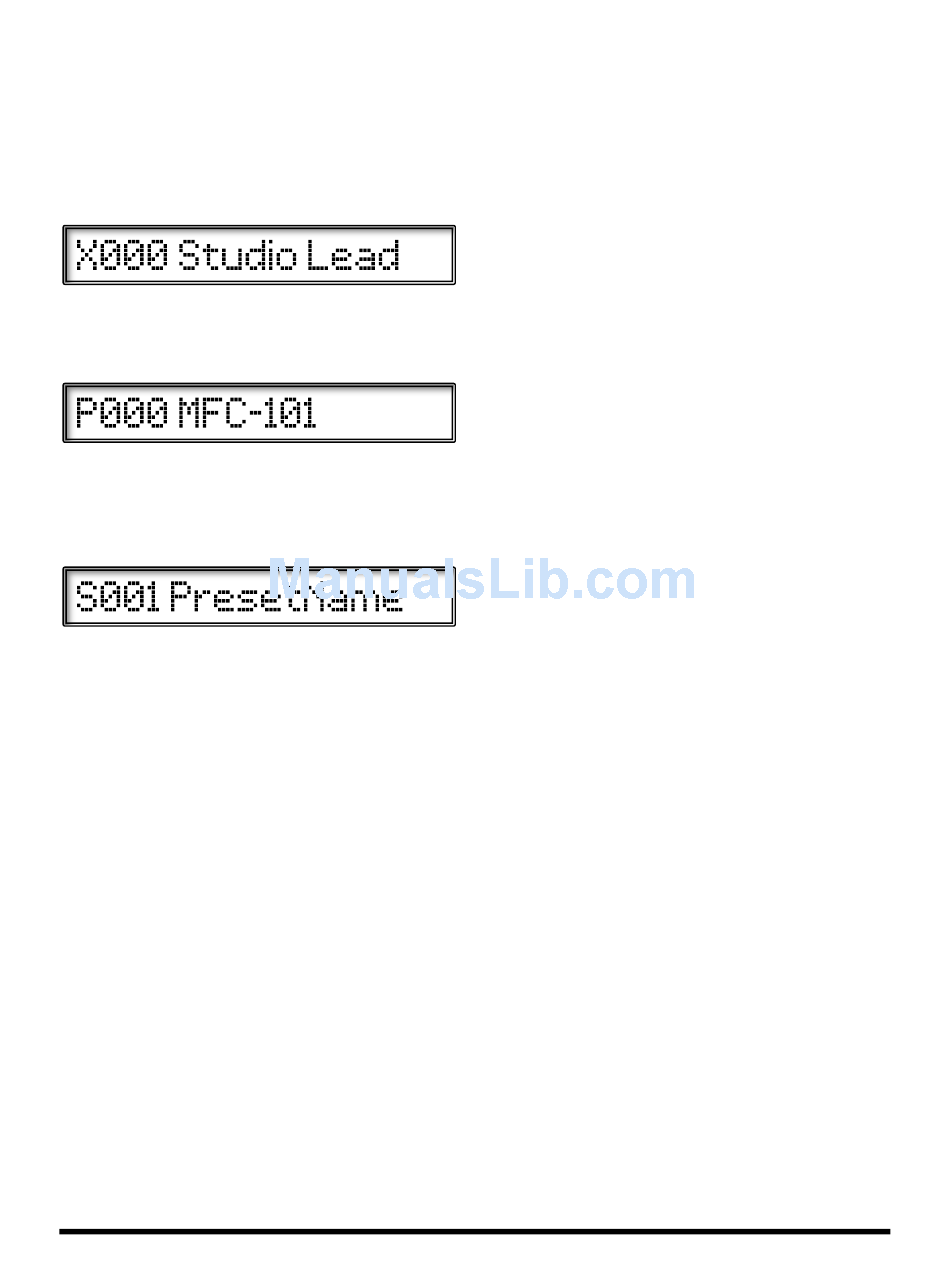

When the MFC-101 is used with an Axe-Fx, it will power up, query the Axe-Fx, and load whichever MFC-101 preset
was loaded when the unit was last powered off. The MFC-101 preset number and the Axe-Fx preset name will be
shown in the display, preceded by an "X" in the first character to indicate AXE-FX MODE running on PRESET MODE:
PRESET MODE+AXE-FX MODE OFF
With Preset Mode ON but AXE-FX MODE turned OFF, the internal MFC-101 preset name and number are shown in
the display, preceded by a "P" in the first character to indicate PRESET MODE:
SONG OR SET MODE, AXE-FX MODE ON OR OFF
SONG or SET MODES (see p. 30) behave similarly to PRESET MODE above, showing the name of the Axe-Fx or MFC
preset and the number of the current MFC Preset. Whether Axe-Fx mode is ON or OFF, however, the first
character of the display will always show an "S" in these modes:
NOTE: Though calibrated by the factory for optimal viewing, it is possible to adjust the MFC-101 display contrast if
necessary. See Display Contrast, on p. 65.
12
Doc v1.0.1
