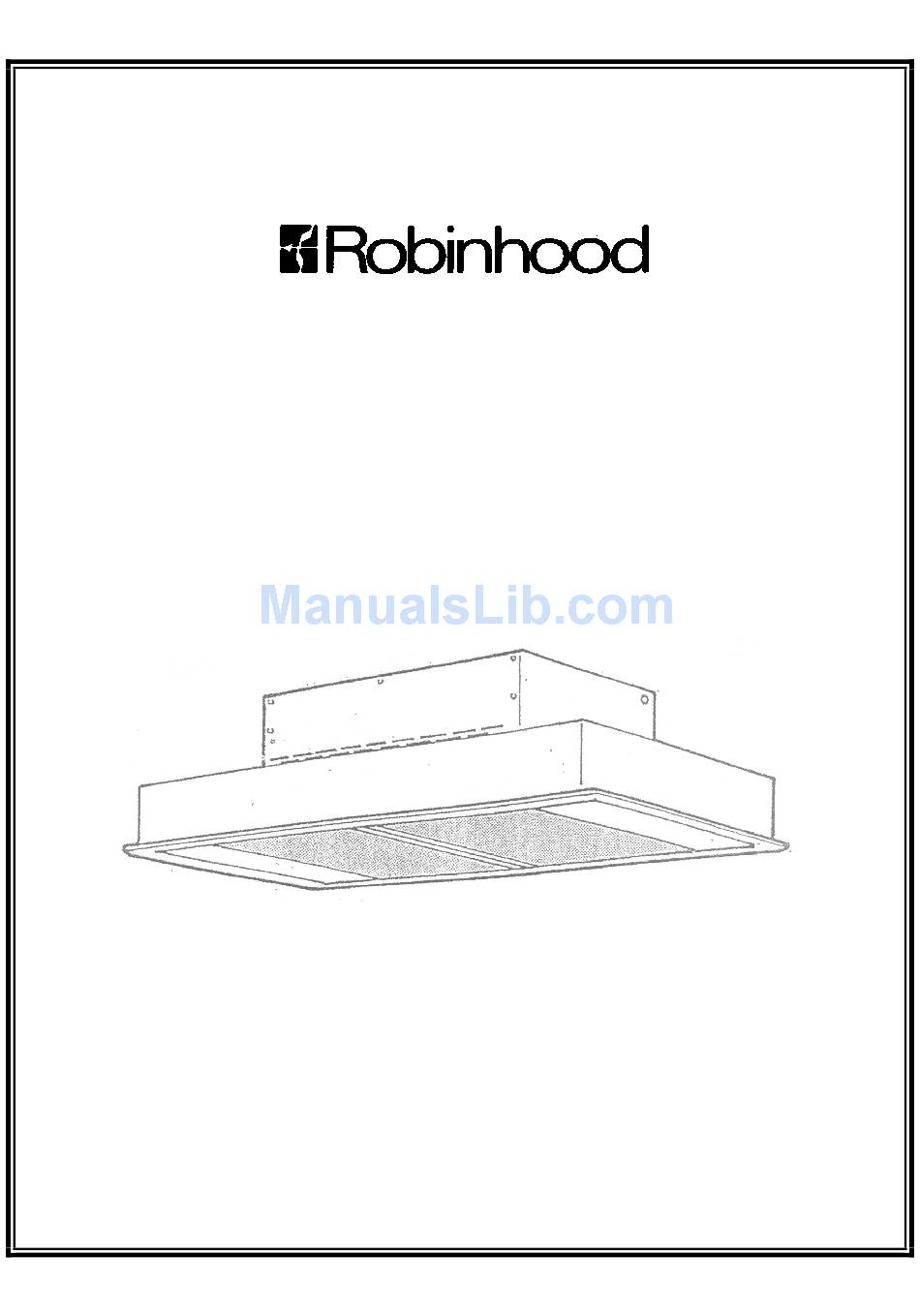

- Page 1 6F -SERIES POWERPACK RANGE HOOD MODEL 6F6WH, 6F8WH SERVICE MANUAL APPROVED Page 1 of 7 ISSUE: C ECN2802...
- Page 2 6F -SERIES APPROVED Page 2 of 7 ISSUE: C ECN2802...
- Page 3 6F -SERIES POWERPACK ITEM DESCRIPTION 6F6WH 6F8WH PART No. PART No. Filter Fan Unit Fan Box Motor E.B.M.R2E220 102767 Power Cord 103821 Rotary Switch Assy. 102908 Switch 770 MEC 102909 PCB Heat Alarm 102746 Capacitor 102793 Resistor PW50 102690 Lamp Holder Assy.
- Page 4 6F -SERIES POWERPACK TO REPLACE MOTOR DISCONNECT UNIT FROM POWER SUPPLY REMOVE UNIT TO SUITABLE WORK AREA REMOVE FILTERS REMOVE GLASS DISFFUSERS BY UNDOING SCREWS AND REMOVING RETAINERS, THEN SLIDE DIFFUSERS IN TOWARD CENTRE OF UNIT TO CLEAR REMOVE LAMPS UNSCREW AND REMOVE LAMP HOLDER ASSEMBLYS REMOVE 7 SMALL SCREWS TO RELEASE FAN BOX AND LIFT IT SUFFICIENT TO CLEAR MOTOR MOUNTING...
- Page 5 6F -SERIES TO REPLACE POWER CORD DISCONNECT FROM POWER SUPPLY REMOVE UNIT TO SUITABLE WORK AREA REMOVE FILTERS REMOVE GLASS DISFFUSERS BY UNDOING SCREWS AND REMOVING RETAINERS, THEN SLIDE DIFFUSERS IN TOWARD CENTRE OF UNIT TO CLEAR REMOVE LAMPS UNSCREW AND REMOVE LAMP HOLDERS REMOVE 7 SMALL SCREWS TO RELEASE FAN BOX AND LIFT IT CLEAR OF BODY DISCONNECT POWER CORD WIRES (TAKE NOTE OF...
