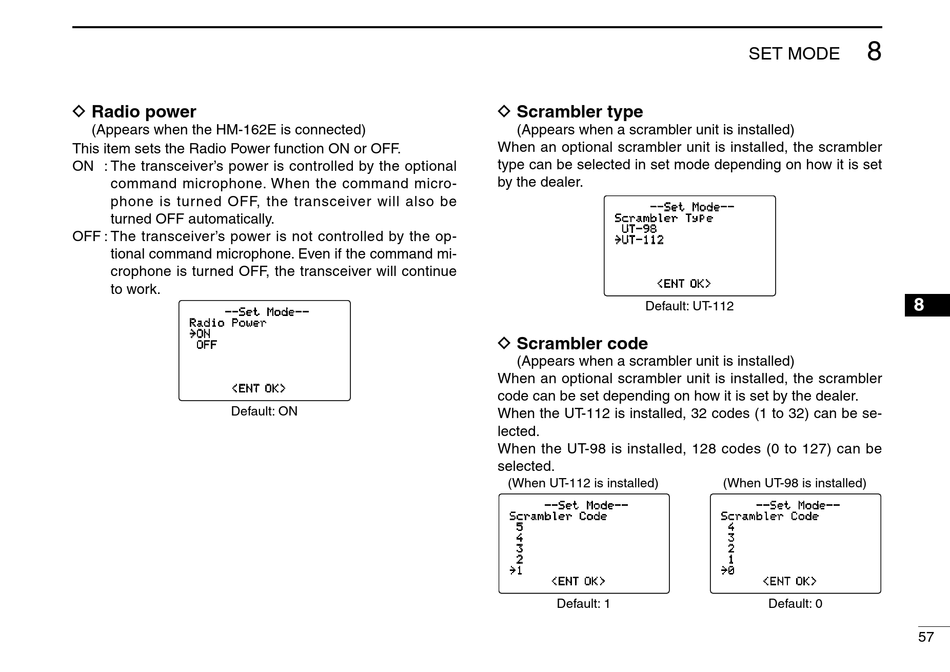

D Radio power
(Appears when the HM-162E s connected)
Ths tem sets the Rado Power functon ON or OFF.
ON : The transcever's power s controlled by the optonal
command mcrophone. When the command mcro-
phone s turned OFF, the transcever wll also be
turned OFF automatcally.
OFF : The transcever's power s not controlled by the op-
tonal command mcrophone. Even f the command m-
crophone s turned OFF, the transcever wll contnue
to work.
--Set Mode--
Radio Power
˘ON
OFF
<ENT OK>
Default: ON
D Scrambler type
(Appears when a scrambler unt s nstalled)
When an optonal scrambler unt s nstalled, the scrambler
type can be selected n set mode dependng on how t s set
by the dealer.
--Set Mode--
Scrambler Type
UT-98
˘UT-112
<ENT OK>
Default: UT-112
D Scrambler code
(Appears when a scrambler unt s nstalled)
When an optonal scrambler unt s nstalled, the scrambler
code can be set dependng on how t s set by the dealer.
When the UT-112 s nstalled, 32 codes (1 to 32) can be se-
lected.
When the UT-98 s nstalled, 128 codes (0 to 127) can be
selected.
(When UT-112 is installed)
--Set Mode--
Scrambler Code
5
4
3
2
˘1
<ENT OK>
Default: 1
8
SET MODE
(When UT-98 is installed)
--Set Mode--
Scrambler Code
4
3
2
1
˘0
<ENT OK>
Default: 0
