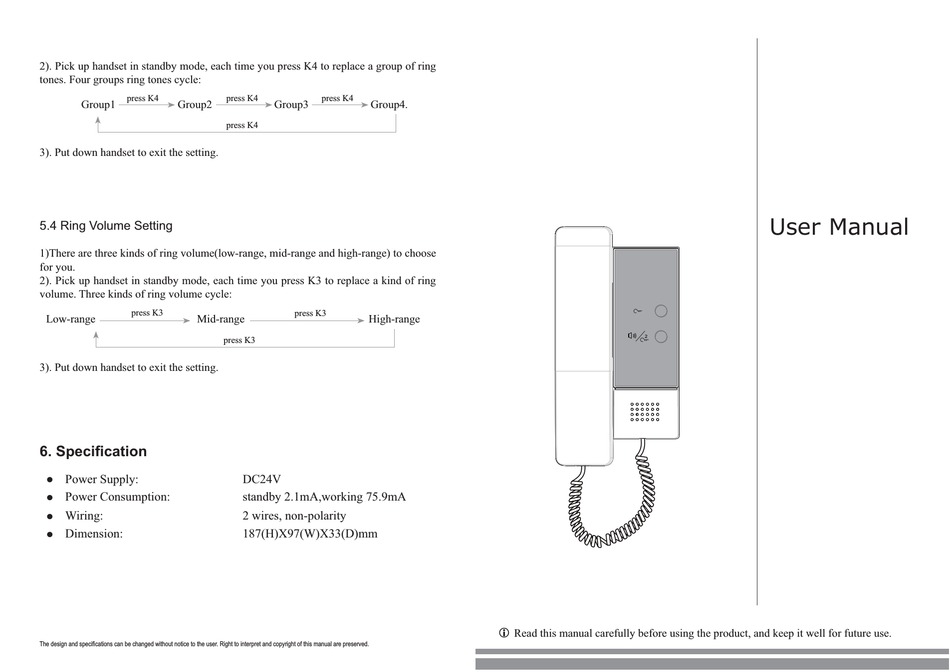

XtendLan DPP-D202 User Manual

2). Pick up handset in standby mode, each time you press K4 to replace a group of ring
tones. Four groups ring tones cycle:
press K4
Group1 Group2
3). Put down handset to exit the setting.
5.4 Ring Volume Setting
1)There are three kinds of ring volume(low-range, mid-range and high-range) to choose
for you.
2). Pick up handset in standby mode, each time you press K3 to replace a kind of ring
volume. Three kinds of ring volume cycle:
press K3
Low-range Mid-range
3). Put down handset to exit the setting.
 6SHFL¿FDWLRQ
Power Supply:
Power Consumption:
Wiring:
Dimension:
7KH GHVLJQ DQG VSHFL¿FDWLRQV FDQ EH FKDQJHG ZLWKRXW QRWLFH WR WKH XVHU 5LJKW WR LQWHUSUHW DQG FRS\ULJKW RI WKLV PDQXDO DUH SUHVHUYHG
press K4 press K4
Group3 Group4.
press K4
press K3
High-range
press K3
DC24V
standby 2.1mA,working 75.9mA
2 wires, non-polarity
187(H)X97(W)X33(D)mm
DT-DJ4A
2
L
Read this manual carefully before using the product, and keep it well for future use.

User Manual
