Altronix Pace1PTM Installation Manual

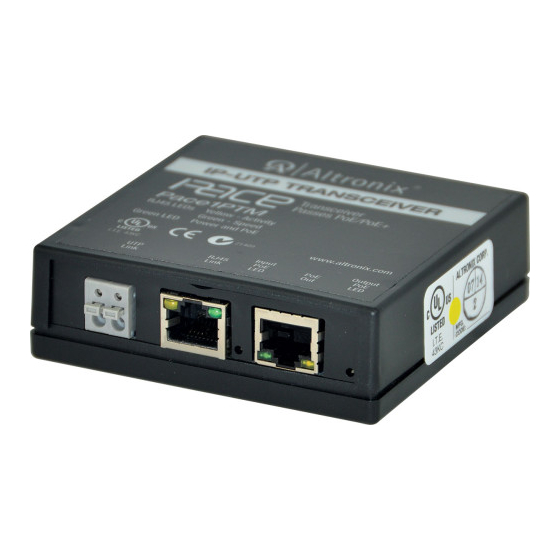

Pace1PTM is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM, and
Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via CAT5e or higher cable in a
PoE(+) compliant format or a single twisted pair (UTP) (when paired with Pace1PRM). Pace1PTM will not deliver
power to non-compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The
receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this
power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices
that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog
products with new IP devices over single twisted pair (UTP) (when paired with Pace1PRM) or structured cable.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
• C-Tick compliant.
Input:
• PoE (15W) IEEE 802.3af compliant or
PoE+ (30W) IEEE 802.3at compliant
from Pace1PRM, Pace4PRM,
Pace8PRM, or Pace16PRM.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e or
a single twisted pair UTP.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
delivered to camera by Pace1PTM.
• Throughput is rated to pass 100Mbps of data.
CAT5e or Higher from Pace Receiver:
• Distance: up to 500m @ 100Mbps
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4)
UTP (Single Twisted Pair) from Pace1PRM:
• Distance: up to 152m @ 100Mbps
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
Pace1PTM
IP and PoE+ Transceiver
Over Extended Distance
UTP or CAT5e
Installation Guide
Overview:
Features:
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED IP Link status,
Environmental:
• Operating Temperature:
• Storage Temperature:
• Relative humidity:
Functions:
• Auto detection and protection of legacy
Applications:
• Retrofit digital IP cameras in an analog
• Extend Network link distance in an
• Works with Megapixel, HD720, HD1080
Mechanical:
• Dimensions (W x L x H approx.):
10/100Base-T/active.
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 25W: – 40ºC to 70ºC (– 40ºF to 158ºF).
For 30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
20 to 85%, non-condensing.
non-PoE cameras/devices.
CCTV CAT5e or UTP installations.
industrial environment over 610m.
and VGA (SD) cameras with proper
headend equipment.
3.5" x 3.5" x 1"
(88.9mm x 88.9mm x 25.4mm).
I.T.E. 43KC
Z1409
