Altronix eBridge PLUS eBridge100ST Installation Manual

Altronix eBridge100ST EoC hardened transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a
paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The
eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver
passes PoE/PoE+ power over the same coax cable to the eBridge100ST transceiver, which, in turn, passes this
power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace
legacy analog products with new IP devices over existing coax up to 300m.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
Compatible Receivers:
• eBridge100RM, eBridge400PCRM,
eBridge800PCRM, and eBridge1600PCRM.
• eBridge800E
Visit www.altronix.com for the latest
compatibility list.
Input:
• Operating power provided by PSE
(power sourcing equipment).
• Current draw: 1.5W
• PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
from eBridge receivers.*
Coax link:
• Throughput is rated to pass 100Mbps of
data at distances up to 300m.
(Maximum Length of Coax Type vs.
Camera Power/PoE Class, pg. 4)
for power delivery.
• Connectivity: BNC, RG-59/U or similar.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
*See note on Page 3.

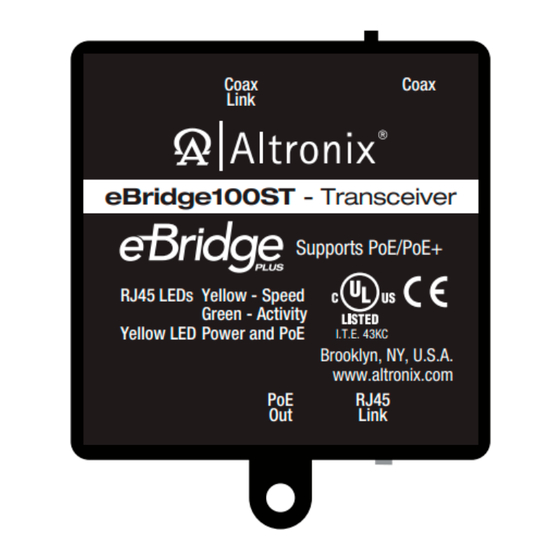

eBridge100ST
EoC Hardened
Mini-Transceiver
PLUS
Installation Guide
Overview:
Features:
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) IP Link
status, 10/100Base-T/active.
• Blue: Coax Link is active.
Environmental:
• Operating Temperature:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
• Storage Temperature:
– 40ºC to 75ºC (– 40ºF to 167ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 2).
• Extend Network link distance in an industrial
environment over 610m (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports,
Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
2.27" x 2.645" x 1.12"
(57.7mm x 67.2mm x 28.4mm).
I.T.E. 43KC
