2.2

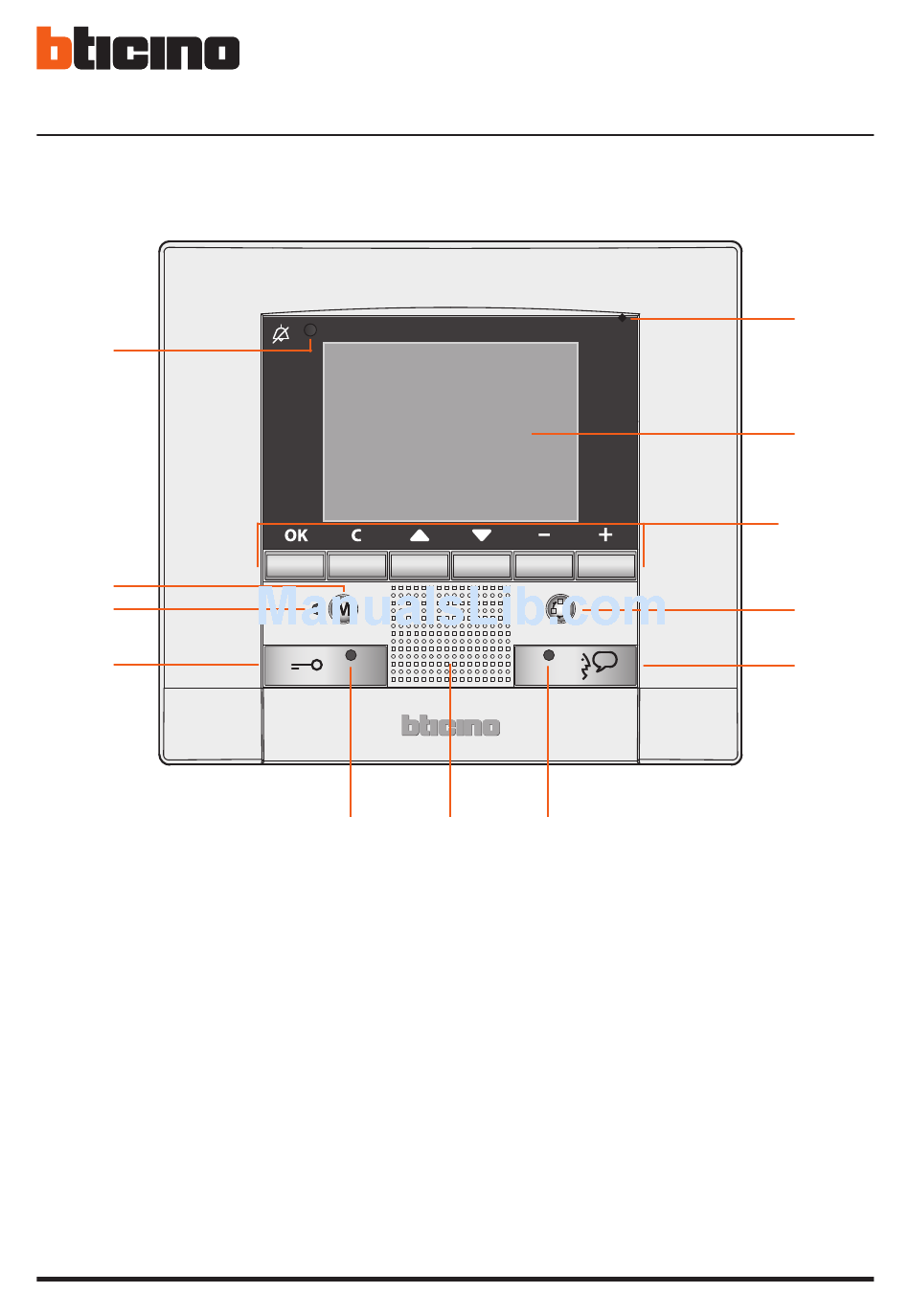

Front view

12
11
10
9
1 - Microphone.
2 - Colour LCD display; displays the menus which guide the use and programming operation, shows
the pictures taken by the entrance panel or other cameras.
3 - Navigation keypad; navigates inside the menus, confirms (OK key) or cancels (C key) the program-
ming operations.
4 - Switch ON entrance panel and cycling key.
5 - Connection key; activates/deactivates the sound connection.
6 - Connection LED.
7 - Loudspeaker.
8 - Door lock LED.
9 - Door lock key; activates the electric door lock of the associated or connected entrance panel.
10 - Answering machine status notification LED.
11 - Pushbutton for enabling/disabling the answering machine function.
12 - Call bell exclusion LED.
28
8 7
2 Description
6
1
2
3
4
5
