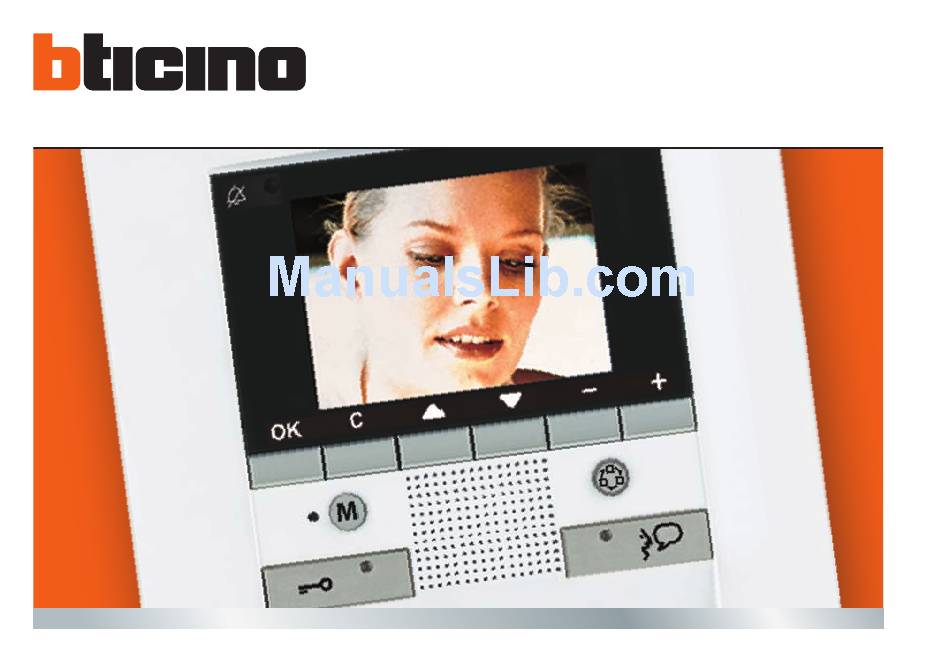

- Page 1 344163 Polyx Memory Display User guide 09/10-01 PC...
-
Page 3: Table Of Contents
Polyx Memory Display 1 Introduction and basic functions 3 Video door entry system functions 1.1 General information 3.1 Activation 1.2 Your Polyx Memory Display: use it now! 3.2 Intercommunication 3.3 Camera 1.2.1 Video door entry function keys 1.2.2 Navigation keys 3.4 Cycle cameras 1.2.3 Key for answering machine functions 3.5 Staircase lights... - Page 4 – legislation regarding the protection of personal data; – data security obligations; – picture and portrait rights, as well as the regulations on copyright and intellectual and industrial property. • BTicino is not responsible for the illegitimate use of its equipment by its customers.
- Page 5 Polyx Memory Display Introduction and basic functions General information Your Polyx Memory Display: use it now! Menu functions Answering Machine...
-
Page 6: Introduction And Basic Functions
Signals the last alarm events which have occurred and the division of the system. • Sound system: Manages the BTicino digital sound system. • Temperature control: Displays and adjusts the temperature in the various zones of the home and the state of the control unit. -
Page 7: Video Door Entry Function Keys
Polyx Memory Display 1.2.1 Video door entry function keys 1.2.2 Navigation keys Activation Entrance Panel/Cycling OK key It activates the switching on of the associated Allows access to the menu; confirms the selection Entrance Panel and, if present, allows the cycling dis- made. -
Page 8: Menu Functions
1 Introduction and basic functions Menu functions COMMUNICATION Use the OK key to access the main menu: Main menu example with programming of just the communication commands. Answering machine Intercommunication Staircase lights Settings SETTINGS ANSW. MACHINE HOME AUTOMATION Use the keys to select the functions from those available: Main menu example with communication and home automation Submenu and commands... - Page 9 Polyx Memory Display CUSTOMISED MENU The customised menu allows more intuitive use of the Polyx Memory The installer has given the exact configuration of your Polyx Memory Display functions. In fact the menu only displays the functions in your Display the tables below; if he has not filled it in ask for it. My Home system and the text of each command can be customised in the installation phase.
-
Page 10: Volume Adjustment
1 Introduction and basic functions 1.3.1 Volume adjustment NOTE: During a video door entry call you can access the Adjustments menu directly by pressing the key. Inside the menu Select select one of the Adjustments items (e.g. Bells) Press OK to access Adjust the volume the menu to the level required. -
Page 11: Monitor Adjustment (Day/Night)
Polyx Memory Display 1.3.2 Monitor adjustment (day/night) It is possible to select two different adjustments, one for day viewing and one for night viewing; to switch from one mode to the other press C during the video door entry call NOTE: During a video door entry call you can access the Adjustments menu directly by pressing the key. -
Page 12: Date/Time
1 Introduction and basic functions 1.3.3 Date/Time Sets the current date and time. Press OK; the first Select > TIME :17:36:50 two numbers flash Adjustments DATE :12:03:10 Press OK to access Set the hour the menu ADJUSTMENTS Press OK to confirm Select Set the minutes TIME... -
Page 13: Camera Swing
Polyx Memory Display 1.3.4 Camera swing NOTE: This menu can only be accessed during the connection with the entrance panel, if this is set up for the camera swing. Select Adjustments Adjust the correct camera angle Press OK to access the menu ADJUSTMENTS Select... -
Page 14: Bells Adjustment
1 Introduction and basic functions 1.3.5 Bells adjustment You can associate one of sixteen tunes to each call event. Choose the tune Select Adjust the volume Bells Select Confirm and then OK to save the selection and return to TUNE Press OK to access the previous page the menu... -
Page 15: Paging
Polyx Memory Display 1.3.6 Paging The page function can be activated directly by pressing the key the installer has configured it). Once the communication is activated the voice will be played on the whole system. -
Page 16: Answering Machine
1 Introduction and basic functions Answering Machine With this function it is possible to save and play back any audio and video messages left from visitors in case of absence; an audio mes- sage can also be saved directly from the Polyx Memory Display (Memo function). -
Page 17: Record A "Memo" Message
Polyx Memory Display 1.4.2 Record a "Memo" message This function can be used to record an audio message directly from the Polyx Memory Display. Press OK. The video Select the function is paused. RECORD MEMO Press OK to confirm It will now be pos- A BEEP will mark the start of sible to delete the recording... -
Page 18: Record A Welcome Message
1 Introduction and basic functions 1.4.3 Record a Welcome message To record a Welcome message: It is now possible to play back the recorded message, to ensure that it has recorded correctly Select the function Select the function RECORD WELCOME LISTEN TO WELCOME Press OK to confirm Press OK to confirm... -
Page 19: Delete All Messages
Polyx Memory Display 1.4.4 Delete all messages 1.4.5 Settings To delete all messages at once: This function can be used to enable/disable the Welcome message and select the message recording mode Select the function Select the function DELETE MESSAGES SETTINGS Press OK to confirm Select Quit to return enable/disable... - Page 20 1 Introduction and basic functions The following screen appears: Select Quit to return DELETE MESSAGES ? to the menu select > QUIT message recording CONFIRM mode select corresponding icon Select Confirm to delete all messages 1 PHOTO MODE Two modes are available. If the memory is full, 1 photo mode: the message Polyx Memory Display...
- Page 21 Polyx Memory Display Trouble shooting Push to Talk mode...
-
Page 22: Trouble Shooting
2 Trouble shooting Push to Talk mode Receiving a call from the entrance panel. Press the Connection key to answer the call. The connection LED lights up. During the conversation you can activate the PUSH TO TALK function. Press the Connection key for at least 2 seconds to talk to the entrance panel. - Page 23 Polyx Memory Display Release the key to hear from the entrance panel. The LED becomes red. To end the connection press the connection key briefly. The LED goes out.
- Page 24 2 Trouble shooting PROBLEM SOLUTION On pressing the Entrance panel Activation/Cycling key ( ) no - the audio/video channel may be busy, wait for it to become free picture appears. (from 1 to 3 minutes) and try again. On pressing the OK key the menu does not switch on and the hand- - the audio/video channel is busy, wait for it to become free (from 1 to set gives a busy sound 3 minutes) and try again.
- Page 25 Polyx Memory Display Video door entry system functions Activation Intercommunication Camera Cycle cameras Staircase lights Call exclusion...
-
Page 26: Video Door Entry System Functions
3 Video door entry system functions Intercommunication Activation This function activates an actuator or an entrance panel. As an example This function allows conversation with other video handsets/ handsets you can activate the opening of a secondary gate. installed in your home or in other apartments. Press OK to Press OK to access access... -
Page 27: Camera
Polyx Memory Display Camera Cycle cameras This function lets you monitor your home, activating one of the cameras This lets you display the pictures taken by all the cameras installed one in the apartment and in the common areas (e.g. garage or garden). after the other. -
Page 28: Staircase Lights
3 Video door entry system functions Staircase lights Call exclusion Lets you switch on the lights at the entrance or on the stairs. This lets you enable/disable the call bell. If the bell is disabled the call exclusion LED lights up. Press OK to access the Main menu Select the Staircase... - Page 29 Polyx Memory Display Home automation functions Scenarios Alarms Sound system Temperature control...
-
Page 30: Home Automation Functions
4 Home automation functions Scenarios Your Polyx Memory Display communicates with the BTicino automation The installer has given a brief description of the scenarios set in the tables below, if he has not filled it in ask for it. system, activating the scenarios. -
Page 31: Alarms
Polyx Memory Display Alarms Your Polyx Memory Display communicates with the BTicino burglar- Alarms icons key: alarm system, in particular giving information on the system state, the active zones and the last 3 alarms given. ARMED ANTIPANIC Inside the Main... -
Page 32: Sound System
4 Home automation functions Sound system The information in the screen is read as indicated below: If your Polyx Memory Display is connected to the BTicino sound system you can check it. Inside the Main menu select Sound system Press OK to access... -
Page 33: Temperature Control
Polyx Memory Display Temperature control Your Polyx Memory Display lets you control and adjust the tem- perature inside the home, interacting with the BTicino temperature control system. Inside the Main menu select Temperat. control SOUND SYSTEM system Press OK to access the menu TEMPERAT. - Page 34 4 Home automation functions You can set the temperature on different levels in the various system zones. TEMP. CONTROL UNIT ZONES: 01 20.5 °C 20.5 °C 22.5 (+2) 18.5°C Press the keys to select Temperature control unit/Zones Press the keys to select Temperature control unit/Zones To set the manual mode and adjust the temperature use the To set the manual mode and adjust the temperature use the keys and then press OK to confirm...
- Page 35 Polyx Memory Display Services The “Settings” menu Services Messages...
-
Page 36: Services
5 Services The “Settings” menu The main menu always has the SETTINGS icon. Selecting it gives access to a wide range of customisations which let you get the most from your Polyx Memory Display. SETTINGS VOLUME MONITOR ADJUSTMENT Inside the Main DATE/TIME menu select SWING... -
Page 37: Services
Polyx Memory Display Services 5.2.1 Professional studio 5.2.2 Hands free The Professional Studio function lets you set the automatic opening of The Hands Free function automatically activates the microphone and the door lock when there is a call from the Entrance Panel. It cannot be loudspeaker when there is a call, avoiding having to press the Connection activated at the same time as the Door State function. -
Page 38: Door State
5 Services 5.2.3 Door state 5.2.4 Alarm messages This function tells you about the door lock state. If it is open the “door f it is activated the Polyx Memory Display tells you if the antintrusion system has detected an alarm. The three LED flash alternately until a lock LED”... -
Page 39: Messages
Polyx Memory Display Messages Select Messages Press OK to confirm MESSAGES - 1 + Select the message Me s s a g e f r om you want to display s w i t c h b o a r d Press C to return to the previous page There are messages, the menu can be selected. - Page 40 BTicino SpA Via Messina, 38 20154 Milano - Italy www.bticino.com BTicino SpA reserves at any time the right to modify the contents of this booklet and to comunicate in any form and modality, the charges brought to the same.
