Bticino PIVOT Technical Data

PIVOT

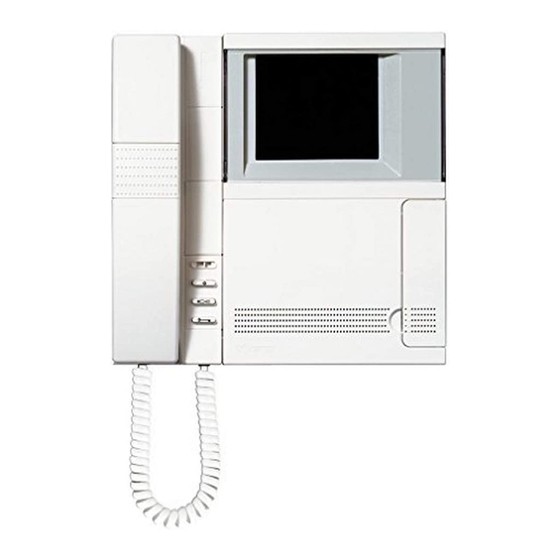

colour video handset

Description

2 WIRE PIVOT video handset for wall mounted, flush mounted, or table top installation.
TFT colour 4" flat monitor. It has door lock release, staircase light, and entrance panel
activation keys.
The device offers the possibility of selecting among 16 already programmed bells for
floor call, main entrance panel, intercom call, and secondary entrance panel. The call
volume can be set on three levels: high, medium and disabled (this condition is signalled
by a flashing red LED).
It also has a call secrecy function. It is connected to the system using
the removable clamp supplied.
Wall mounting bracket supplied as standard.

Related items

346812 4 key small block for auxiliary functions - white
337122 table-top support - white
NOTE: for flush mounted installation refer to the specific accessories of the MULTIBOX
range.
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Stand by absorption: 5 mA
Max. operating absorption: 290 mA
Operating temperature: 5 - 40°C

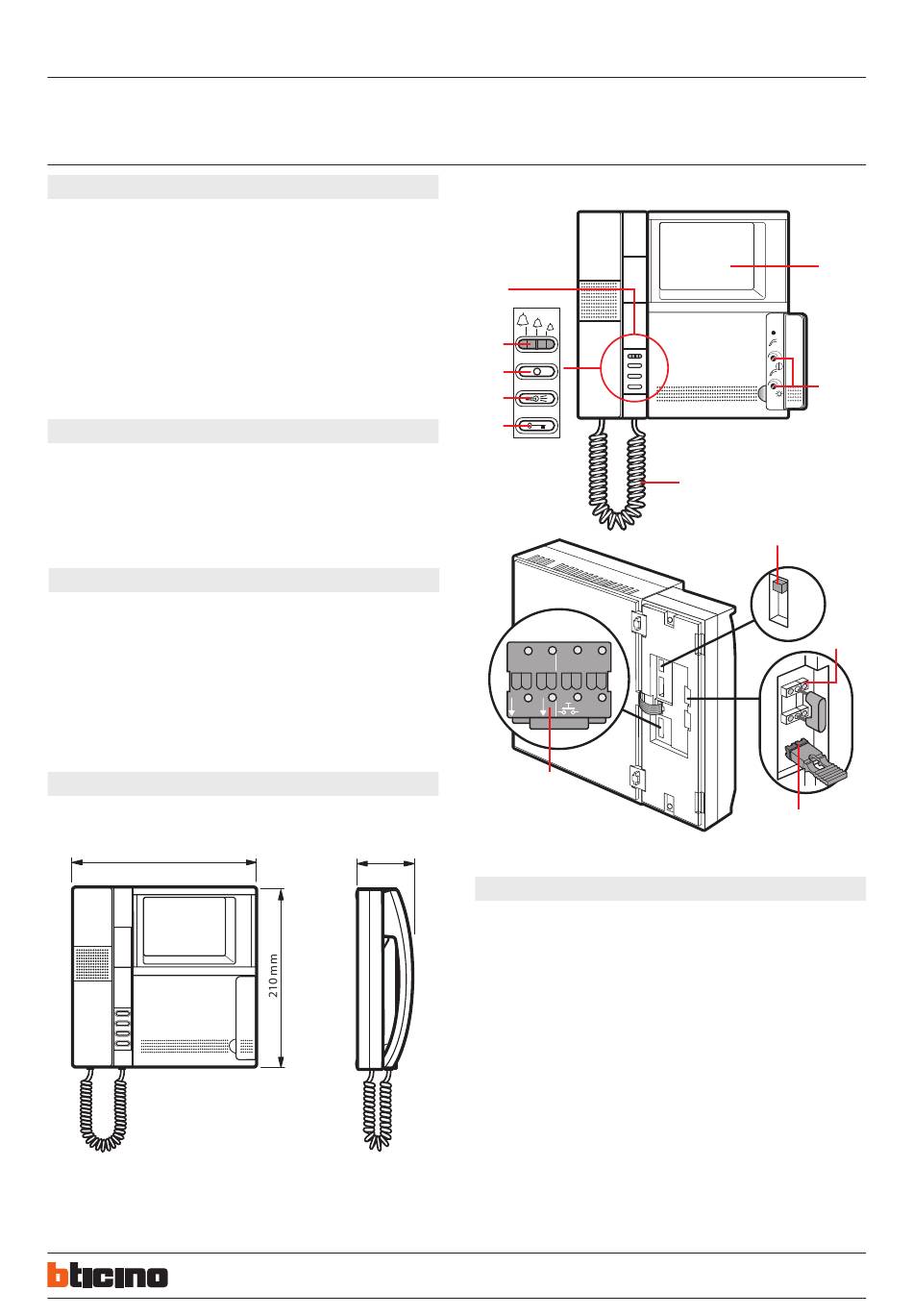

Dimensional data

210 mm
2 WIRE Video Door Entry system
8
7
6
5
4
5
BUS
68,5 mm

Legend

1. 4" TFT colour monitor
2. Monitor colour, contrast, and brightness adjustment
3. Extensible cord capped on both ends with RJ connectors
4. Door lock key
5. Staircase light key
6. Entrance panel activation/cycling
7. Electronic call with volume adjustable on 3 levels: high, medium, disabled (the
excluded call is signalled by a flashing red LED)
8. 4-key block housing (optional)
9. Line termination ON/OFF micro-switch
10. Configurator socket
11. MASTER-SLAVE Jumper (remove to enable SLAVE)
12. Plug-in clamp for the connection of the 2 WIRE BUS, additional power supply,
and auxiliary floor call function, as well as extra bell.
BT00652-a- EN 14/10/2013
