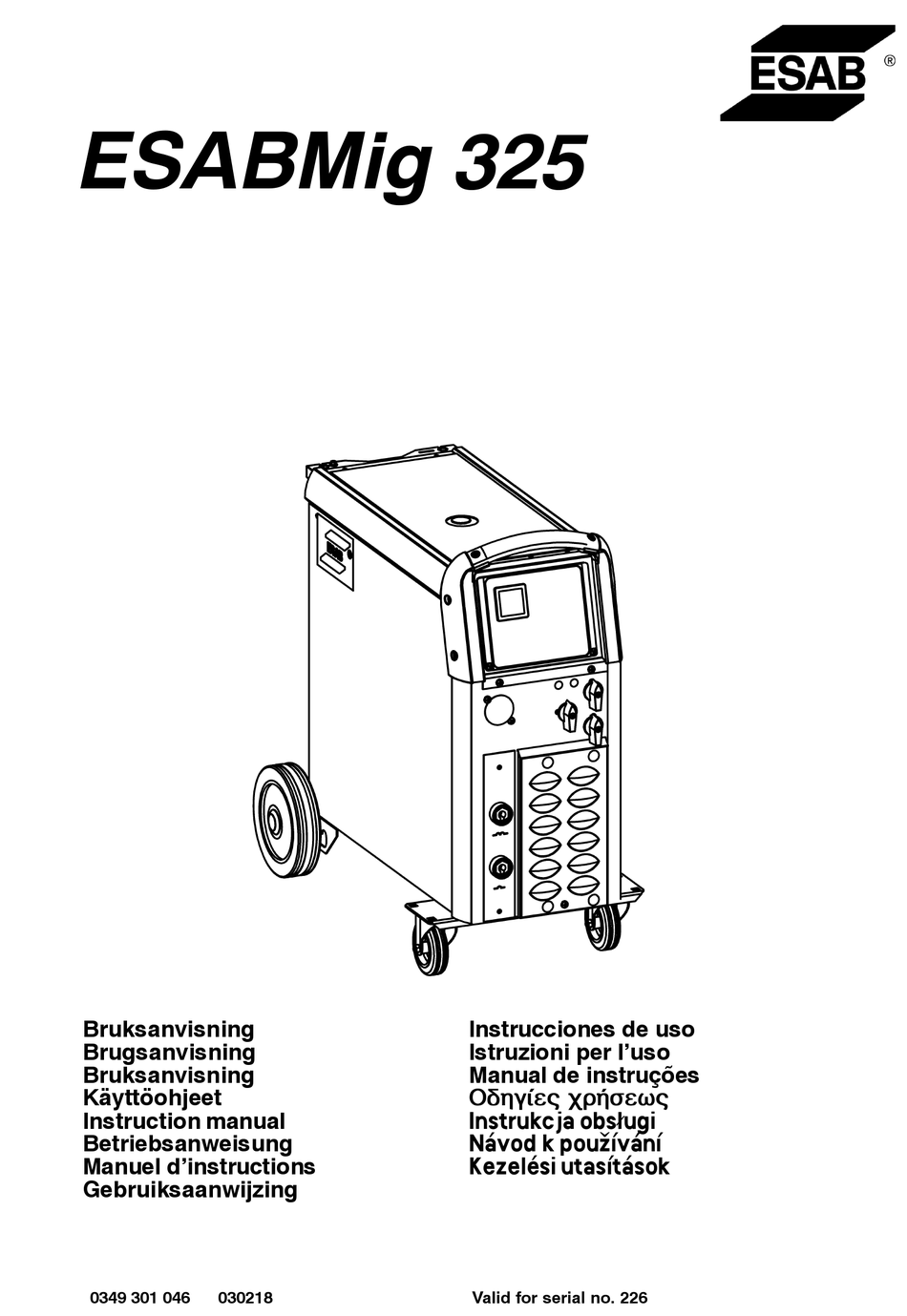

  • Page 1 ESABMig 325 Bruksanvisning Instrucciones de uso Brugsanvisning Istruzioni per l’uso Bruksanvisning Manual de instruções Käyttöohjeet Ïäçãßåò ÷ñÞóåùò Instruction manual Instrukcja obs³ugi Betriebsanweisung Návod k pou¾ívání Manuel d’instructions Kezelési utasítások Gebruiksaanwijzing 0349 301 046 030218 Valid for serial no. 226...
  • Page 2 SVENSKA ..........DANSK .

  • Page 3: Table Of Contents

    ENGLISH 1 DIRECTIVE ............2 SAFETY .

  • Page 4: Directive

    DIRECTIVE DECLARATION OF CONFORMITY ESAB Welding Equipment AB, S–695 81 Laxå, Sweden, gives its unreserved guarantee that welding power source ESABMig 325 from serial number 226 complies with standard IEC/EN 60974–1, in ac- cordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with stan- dard EN 50199 in accordance with the requirements of directive (89/336/EEC) and addendum (93/68/EEC).
  • Page 5 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK – Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

  • Page 6: Introduction

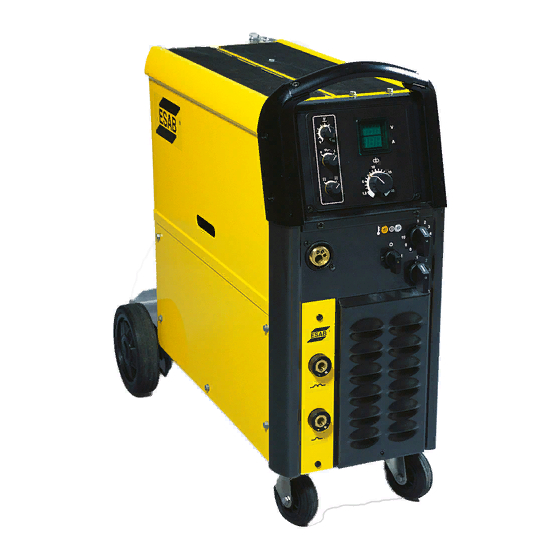

    INTRODUCTION The ESABMig 325 are step switched power sources designed for MIG/MAG–welding together with wire feed units ESABFeed 30 and the most of ESAB wire feeders. The power units are fan–cooled and equipped with thermal overload protection. The machines can be fitted with an instrument for display of current and voltage. It incorporates a hold function and can be calibrated.

  • Page 7: Installation

    INSTALLATION The installation must be executed by a professional. WARNING! This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user’s responsibility to take adequate precautions. Placing Position the welding power source such that its cooling air inlets and outlets are not obstructed.

  • Page 8: Assembly Of Stabilizer

    Assembly of stabilizer Assemble the stabilizer if counter balance is to be installed on machine. The stabilizer is an accessory. Ordering number you can find on page 142. Attention! Utilization of counter balance without stabilizer may cause the machine tipping over. Electrical installation –...

  • Page 9: Mains Power Supply

    Mains power supply Check that the unit is connected to the correct mains power supply voltage, and that it is protected by the correct fuse size. A protective earth connection must be made, in accordance with regulations. Rating plate with supply connection data ESABMig 325 3∼...

  • Page 10: Operation

    OPERATION General safety regulations for the handling of the equipment can be found on page 40. Read through before you start using the equipment! WARNING – TIPPING RISK! There is a risk of tipping while transportation and operation, if the welding machine leans more than 10 .

  • Page 11: Maintenance

    Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. – 47 –...

  • Page 12: Diagram

    Schema Skema Skjema Johdotuskaavio Diagram Schaltplan Schéma Schema Esquema Schema Esquema á óýíäåóçò Schema Ó÷Þì Schemat Kapcsolási rajz Ó×ÇÌÁ ÓÕÍÄÅÓÇÓ DIAGRAM 400V – 138 – 325diag...
  • Page 13 DIAGRAM 230–500V – 139 – 325diag...
  • Page 14 ESABMig 325 Edition 030225 Valid for serial no. 226–XXX–XXXX Ordering numbers for ESABMig 325 0349 302 676 ESABMig 325 400–415V 3~50Hz 0349 303 562 ESABMig 325 400–415V 3~50Hz with meter 0349 302 613 ESABMig 325 230/400–415/500 3~50Hz; 230/440–460V 3~60Hz – 140 – 325ord...

  • Page 15: Accessories

    ESABMig 325 Edition 030225 Tillbehör Tilbehør Tilbehør Lisävarusteet Accessories Zubehör Accessoires Accessoires Accesorios Accessori Acessórios Aîåóïõáñ Spotøební díly Wyposa¿enie Kopó alkatrészek ÁÎÅÓÏÕÁÑ WYPOSA¯ENIE NO TAG Feeder with capsulated bobbin ESABFeed 30–2 ......0459 116 781 ESABFeed 30–4 .
  • Page 16 ESABMig 325 Edition 030225 Connection sets Connection set 1,7m ..... . 0469 836 880 Connection set 8m ..... . . 0469 836 881 Connection set 16m .

  • Page 17: Nederlands

    ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna–Liesing Sofia Shanghai Fax: +47 33 11 52 03 Tel: +43 1 888 25 11...
