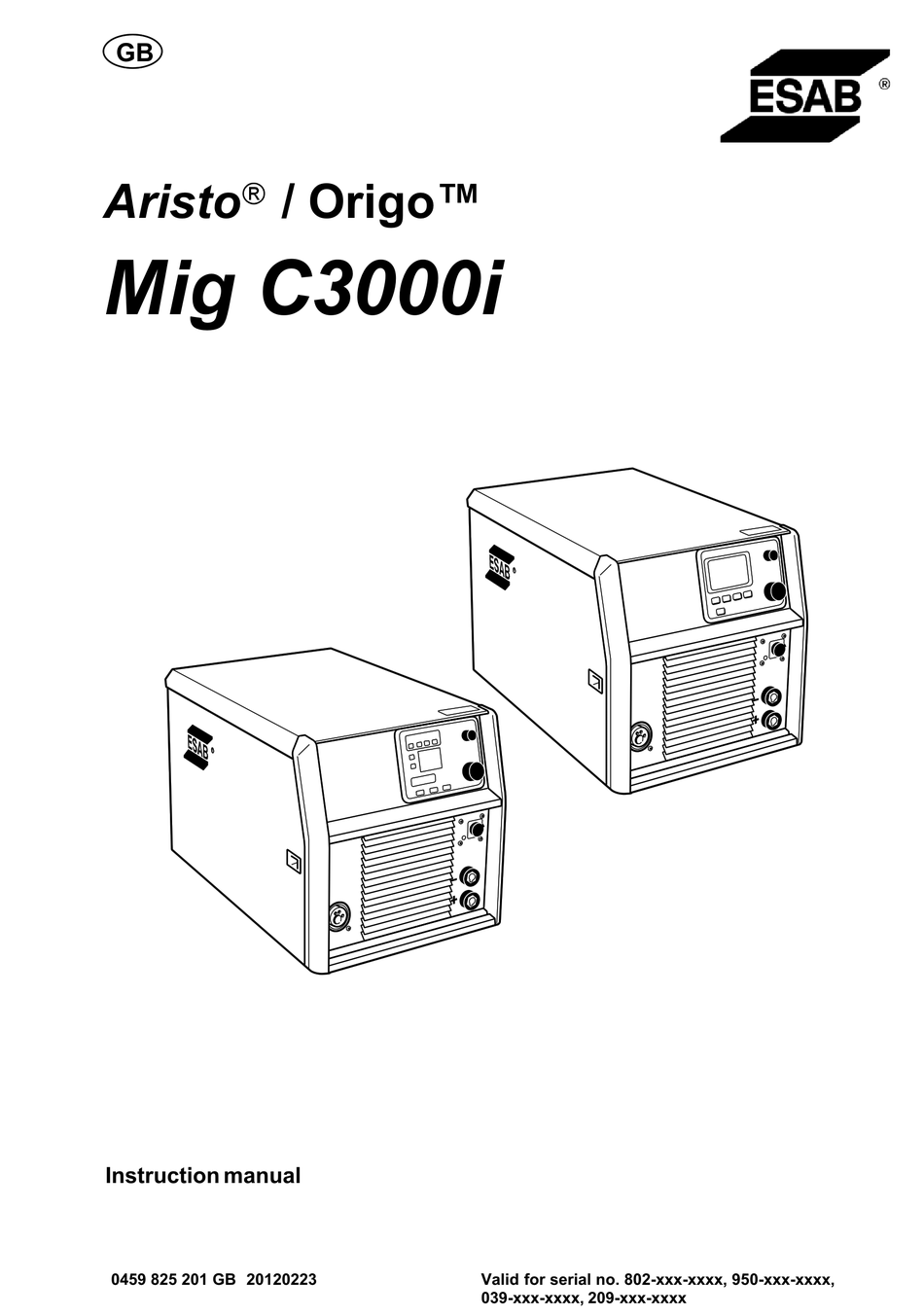

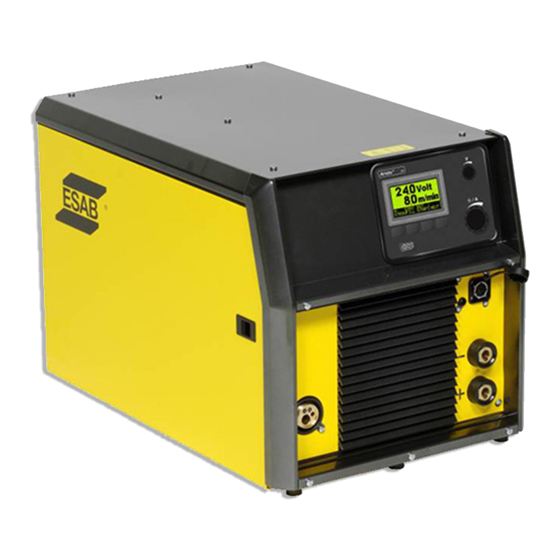

Aristo / Origo
Mig C3000i
Instruction manual
0459 825 201 GB 20120223
Valid for serial no. 802-xxx-xxxx, 950-xxx-xxxx,
039-xxx-xxxx, 209-xxx-xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aristo Mig C3000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB Aristo Mig C3000i

Summary of Contents for ESAB Aristo Mig C3000i

  • Page 1 Aristo / Origo Mig C3000i Instruction manual 0459 825 201 GB 20120223 Valid for serial no. 802-xxx-xxxx, 950-xxx-xxxx, 039-xxx-xxxx, 209-xxx-xxxx...
  • Page 2 - 98 -...

  • Page 3: Table Of Contents

    1 SAFETY ............2 INTRODUCTION .

  • Page 4: Safety

    SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob­...
  • Page 5 A equipment in those locations, due to conducted as well as radiated disturbances. CAUTION This product is solely intended for arc welding. CAUTION Read and understand the instruction manual before installing or operating. - 101 - © ESAB AB 2005 bc19d1ea...

  • Page 6: Introduction

    As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. ESAB can provide you with all necessary welding protection and accessories. INTRODUCTION Mig C3000i is a welding power source intended for MIG/MAG welding with solid wire made of steel, stainless steel, aluminium as well as cored wire with or without shielding gas.

  • Page 7: Technical Data

    Wire feed speed 0.8 - 25.0 m/min Max. diameter wire bobbin 300 mm Wire dimension 0.6 - 1.2 mm 0.6 - 1.2 mm 1.0 - 1.2 mm Cored wire 0.8 - 1.2 mm - 103 - © ESAB AB 2005 bc19d1ea...

  • Page 8: Installation

    Lifting instruction Location Position the welding power source such that its cooling air inlets and outlets are not obstructed. - 104 - © ESAB AB 2005 bc19d1ea...

  • Page 9: Mains Power Supply

    To prevent the reel from sliding off the hub: Lock the reel in place by turning the red knob as shown on the warning label attached next to the hub. WARNING Rotating parts can cause injury, take great care. - 105 - © ESAB AB 2005 bc19d1ea...
  • Page 10 WARNING Risk of crushing when replacing the wire bobbin! Do not use safety gloves when inserting the welding wire between the feed rollers. - 106 - © ESAB AB 2005 bc19d1ea...

  • Page 11: Connections And Control Devices

    When this occurs the welding current is interrupted and a fault code is displayed on the control panel. The overheating protection resets automatically when the temperature has fallen. - 107 - © ESAB AB 2005 bc19d1ea...

  • Page 12: Welding Without Gas

    When you hold the gun approx. 5 mm from the piece of wood (fig. 1) the feed rollers should slip. If you hold the gun approx. 50 mm from the piece of wood, the wire should be fed out and bend (fig. 2). - 108 - © ESAB AB 2005 bc19d1ea...

  • Page 13: Replacing And Inserting Wire

    It is normally sufficient to blow the dust out of the power source with dry compressed air (reduced pressure) once a year. Clogged or blocked air inlets and outlets otherwise result in overheating. - 109 - © ESAB AB 2005 bc19d1ea...

  • Page 14: Fault-Tracing

    Check that the welding current supply and return cables are correctly connected. Check that the correct current value is set. Check that the correct wire is being used. Check the mains power supply fuses. - 110 - © ESAB AB 2005 bc19d1ea...

  • Page 15: Ordering Spare Parts

    Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 111 - ©...

  • Page 16: Diagram

    Diagram - 112 - © ESAB AB 2005 bc19e...
  • Page 17 - 113 - © ESAB AB 2005 bc19e...

  • Page 18: Ordering Number

    0458 818 990 Spare parts list Control panel Aristo 0458 870 201 Instruction manual Welding gun PSF 305, 4,5 m Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 114 - © ESAB AB 2005 bc19o...
  • Page 19 - 115 -...

  • Page 20: Wear Parts

    In order to weld with aluminium wire, proper rollers, nozzles and liners for aluminium wire MUST be used, It is recommended to use 3 m long welding gun for aluminium wire, equipped with appropriate wear parts. - 116 - © ESAB AB 2005 ba40w...
  • Page 21 Mig C3000i - 117 - © ESAB AB 2005 ba40w...

  • Page 22: Accessories

    0.25 m ........0459 554 884 - 118 - © ESAB AB 2005 bc19a...

  • Page 23: Welding Torch

    PSF 410 W RS3 0458 400 898 0458 400 899 400A 100% 350A 100% 0.8 - 1.6 Self cooled Smoke exhausters, Centrovac Smaller, Light duty Water cooled 3-step program switch for selecting preset programs. - 119 - © ESAB AB 2005 bc19a...
  • Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
