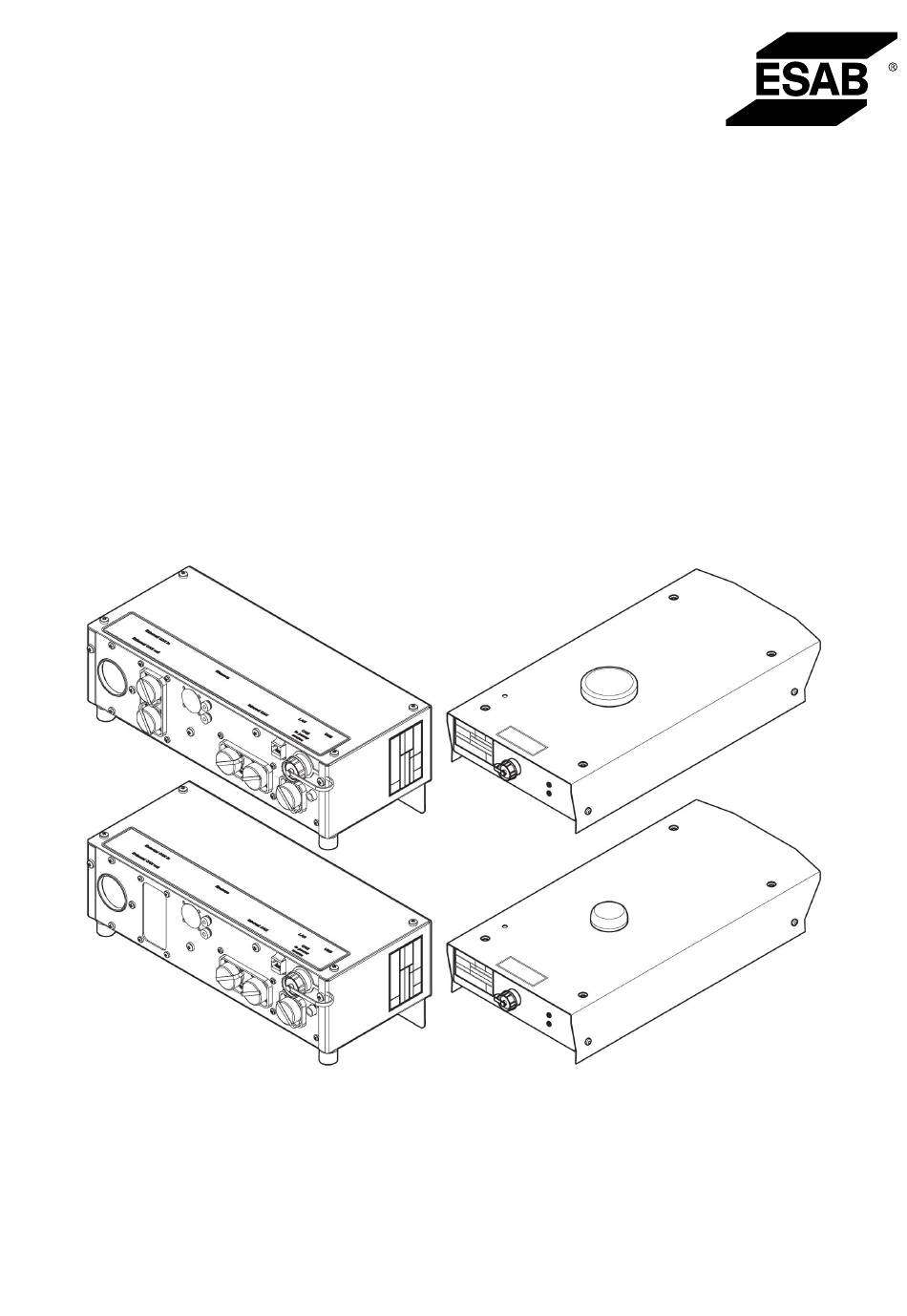

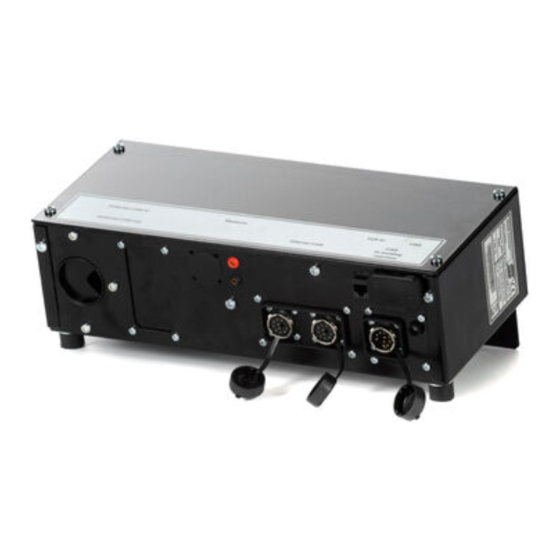

- Page 1 Aristo® W82, Retrofit Mig 4004i WeldCloud™ Instruction manual Valid for: W82 serial no. 544-, 628-xxx-xxxx Retrofit Mig 4004i WeldCloud™ serial no. 550-xxx-xxxx 0460 971 301 GB 20161014...
-
Page 3: Table Of Contents
Overheating protection ................. Arc voltage feedback ..................MAINTENANCE ....................16 Inspection and cleaning................ORDERING SPARE PARTS ................17 DIAGRAM ....................... 18 ORDERING NUMBERS ..................21 ACCESSORIES ...................... 22 Rights reserved to alter specifications without notice. 0460 971 301 © ESAB AB 2016... -
Page 4: Safety
1.2 Safety precautions NOTE! The unit is tested by ESAB in a general set-up. The responsibility for safety and function, of the specific set-up, lies with the integrator. Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. - Page 5 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0460 971 301 - 5 - © ESAB AB 2016...
- Page 6 As the person responsible for the equipment, it is your responsibility to obtain information on approved collection stations. For further information contact the nearest ESAB dealer. ESAB can provide you with all necessary welding protection and accessories. 0460 971 301 - 6 - © ESAB AB 2016...
-
Page 7: Introduction
Communication protocols: DeviceNet, Profibus, CANopen and Ethernet. is used together with ESAB CANbus equipped power sources for welding automation. For power source and wire feed unit handling, see the relevant instruction manual. -
Page 8: Technical Data
Enclosure class The IP code indicates the enclosure class, i.e. the degree of protection against penetration by solid objects or water. Equipment marked IP23 is intended for indoor and outdoor use. 0460 971 301 - 8 - © ESAB AB 2016... -
Page 9: Installation
For instructions on how to connect the Retrofit Aristo® Mig 4004i WeldCloud™, see the service manual for Aristo® W8 , Retrofit Mig 4004i WeldCloud™ or contact the nearest ESAB Service Center or distributor. Connection of Aristo® W82 to Mig 3001i, Mig 4001i, Mig 4002c, Mig 5002c and Mig 6502c power sources... -
Page 10: How To Set-Up The U82 For Use With W82
4.3.2 Convert the U82 stand alone unit to a presentation unit 1. Connect the enclosed USB memory to a PC. Make sure that the computer is set to show file extensions. 2. Rename: "update.txt_" to "update.txt" and "reset.txt_" to "reset.txt" 0460 971 301 - 10 - © ESAB AB 2016... -
Page 11: System Diagrams
Connection between welding power source and wire feed unit - “Internal CAN”. Connection between welding power source and control panel - “Internal CAN”. NOTE! If the ESAB wire feeder unit is not used, a separate arc voltage feedback is required to the measurement contact on the control unit. 0460 971 301 - 11 - ©... - Page 12 4 INSTALLATION 0460 971 301 - 12 - © ESAB AB 2016...
-
Page 13: Operation
Connection for measurement cable for arc voltage feedback and emergency stop signal, measurement kit Internal CAN Connections for communication with ESAB wire feed unit and control panel Connection to network, Ethernet CAN to welding power source Connection for communication with welding power source... -
Page 14: Overheating Protection
This method of measuring the arc voltage, compensates for the voltage drop in the welding cable to the wire feeder. With an ESAB torch supporting "TrueArcVoltage", the voltage drop all the way to the contact tip is compensated. - Page 15 ESAB service personnel. NOTE! To compensate the voltage drop in the return cable, the power source can be configured (by authorised ESAB service personnel) to use an external arc voltage sense wire from the workpiece. 0460 971 301 - 15 - ©...
-
Page 16: Maintenance
6.1 Inspection and cleaning Regularly check that the control unit is in electrical contact with the power source and that the connections are fault-free and correctly connected. 0460 971 301 - 16 - © ESAB AB 2016... -
Page 17: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back cover of this document. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 18: Diagram
DIAGRAM DIAGRAM Aristo® W8 0460 971 301 - 18 - © ESAB AB 2016... - Page 19 DIAGRAM 0460 971 301 - 19 - © ESAB AB 2016...
- Page 20 DIAGRAM Retrofit Mig 4004i WeldCloud™ 0460 971 301 - 20 - © ESAB AB 2016...
-
Page 21: Ordering Numbers
0459 839 038 Spare parts list W8 , Retrofit Mig 4004i WeldCloud™ 0740 800 203 Service manual W8 , Retrofit Mig 4004i WeldCloud™, WeldCloud™ Mobile Instruction manuals and the spare parts list are available on the Internet at: www.esab.com 0460 971 301 - 21 - © ESAB AB 2016... -
Page 22: Accessories
Robot Interface Kit Profibus WeldCloud™ 0445 501 882 Robot Interface Kit CANopen WeldCloud™ 0445 501 883 Robot Interface Kit EtherNet IP WeldCloud™ *Not applicable for Retrofit Aristo® W8 with ordering number 0465 826 881. 0460 971 301 - 22 - © ESAB AB 2016... - Page 23 ACCESSORIES 0460 971 301 - 23 - © ESAB AB 2016...
