29.5 Tuning – F5
You can tune the image of any computer screen from the Main window.
To adjust the screen image:
1. Navigate to the computer line you wish to adjust.
2. Press F5. The screen image of the selected computer appears, together with the
Image Tuning label, see Figure 42.
3. Adjust the image by using the Right and Left Arrow keys.
4. When the image is satisfactory, press Esc.
Note! Picture quality is relative to distance. The further away a remote computer is
from the Smart 216 / 232 IP, the lower the image quality, and the more tuning
needed. So place the higher resolution computers closer to the Switch.

29.6 The Settings window - F2

Press F2. The Settings window appears see Figure 43.
In the Settings window navigate downwards using the Tab key. At the bottom of
the window, press tab to go to the top of the window. Change settings by typing in
the selected area or by pressing the spacebar – whichever is relevant.
SMART 216 / 232 IP

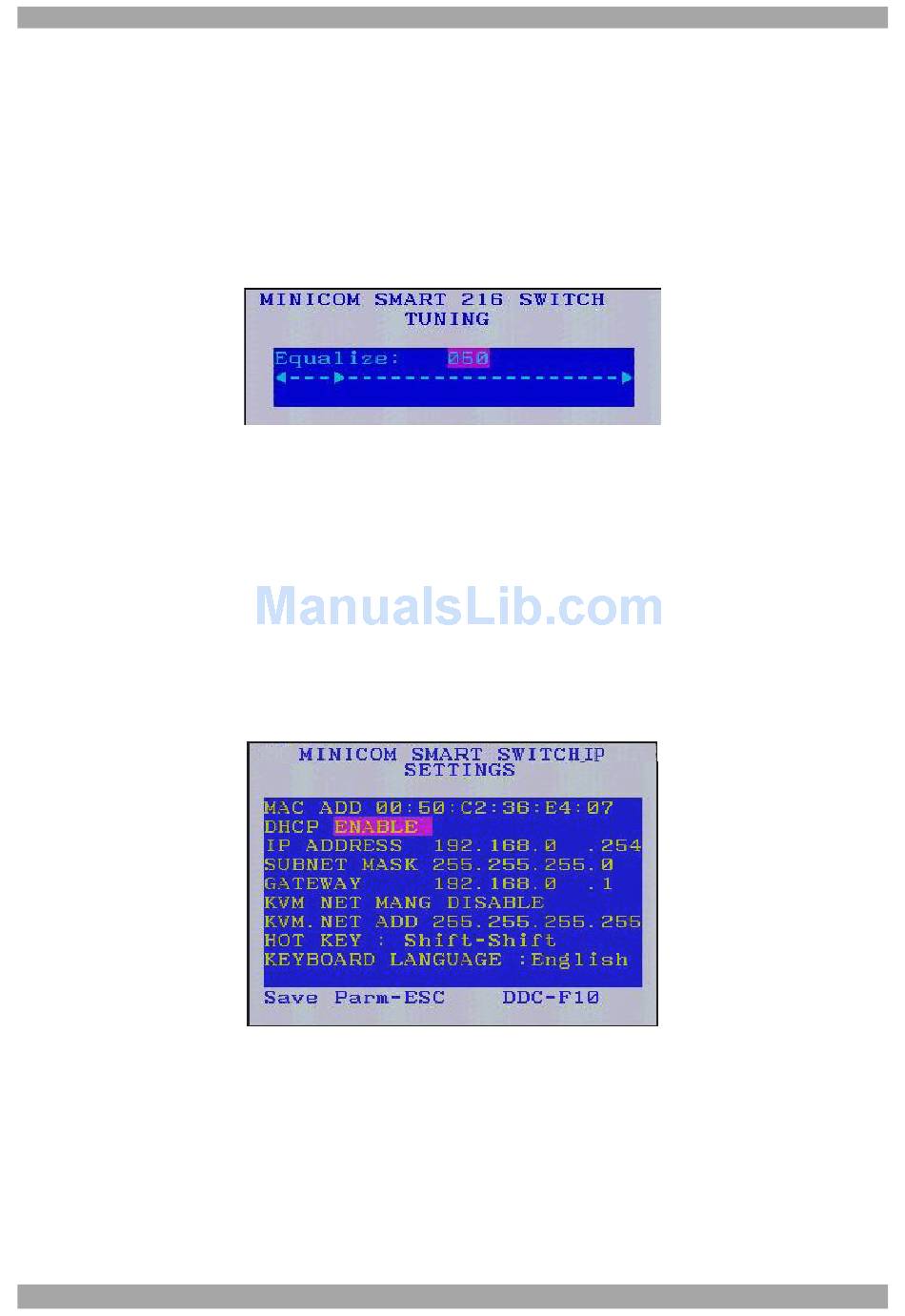

Figure 42 Image Tuning label
Figure 43 Settings window
