8.2 Rack mounting the Smart 216 / 232 IP
Rack mount the Smart 216 / 232 IP using the supplied Rack-mount kit. The
brackets can be placed in 2 possible positions, see Figure 4.
Front of unit
Place the brackets towards the front of the unit so that the unit can be mounted
front facing, or place the brackets towards the rear of the unit so that the unit can be
mounted rear facing. Figure 5 illustrates the bracket connected for rear facing.
Screw the bracket to the Smart 216 / 232 IP using the screws provided.
USER GUIDE
Position here for
front facing

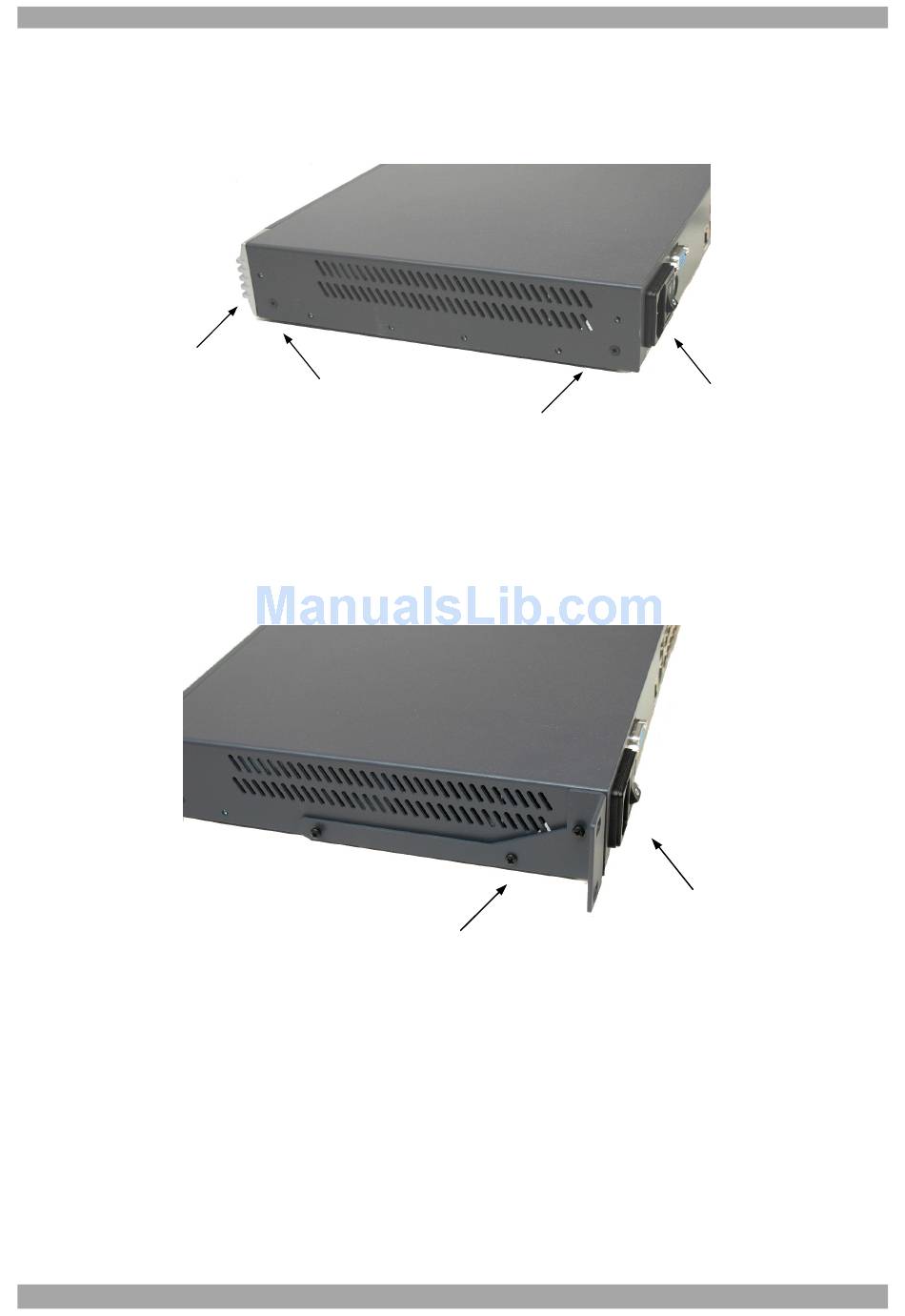

Figure 4 Bracket positions
Bracket connected for rear
facing rack mounting
Figure 5 Bracket connected
Position here
for rear facing
8
Rear of unit
Rear of unit
