Administration > Serial Settings - Minicom 232 IP User Manual

SMART 216 / 232 IP
16. Administration > Serial Settings
Where you have a Serial device connected to the system you must configure the
RS232 settings.
To do so:
From the menu click Serial Settings, the Serial Settings appear, see Figure 19.

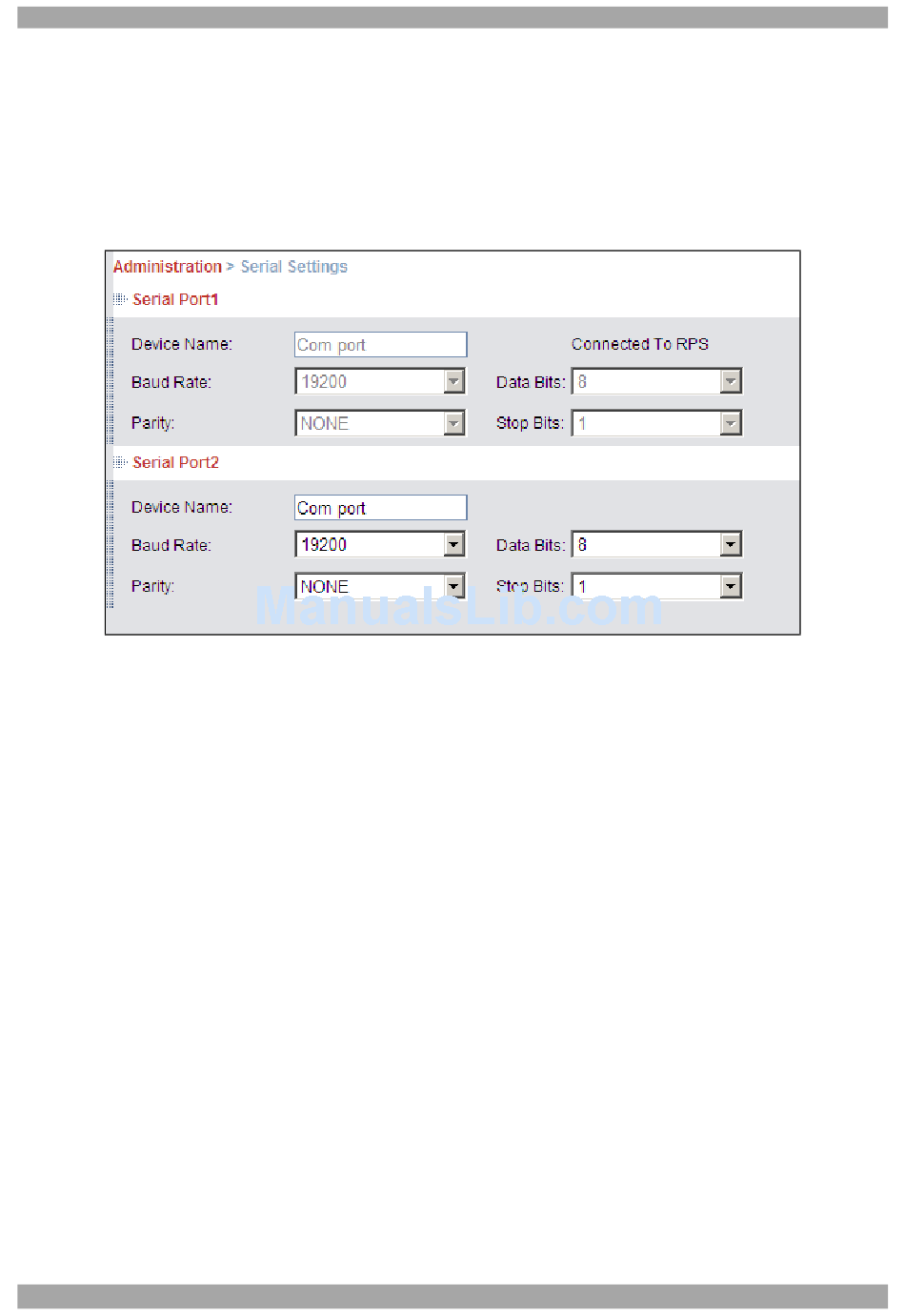

Figure 19 Serial Settings
Where you have a Minicom Serial Remote Power Switch, it must be connected to
Serial port 1.
For each Serial device connected, type a device name and choose the correct device
parameters.
21
