Section II explains how to operate the Smart 216 / 232 IP system locally via the
OSD.

29. The OSD

To display the OSD:
1. From the local keyboard, press the left Shift key twice. The OSD Main window
appears. See Figure 39. Lines with the sun icons in the PM column show
switched on active computers/servers. A switched off computer has no sun icon.
When a server is busy the entire line appears in red characters.
Port number
appears here
Instruction
keys

29.1 Navigating the OSD Main window

To navigate up and down use the Up and Down arrow keys.
To exit the OSD press Esc.

29.2 Selecting a computer

To select a computer:
1. Navigate to the desired computer line.
Or, type the two-digit port number of the desired computer.
2. Press Enter. The selected computer is accessed. A Confirmation label appears
showing which computer is accessed.
SMART 216 / 232 IP

Section II

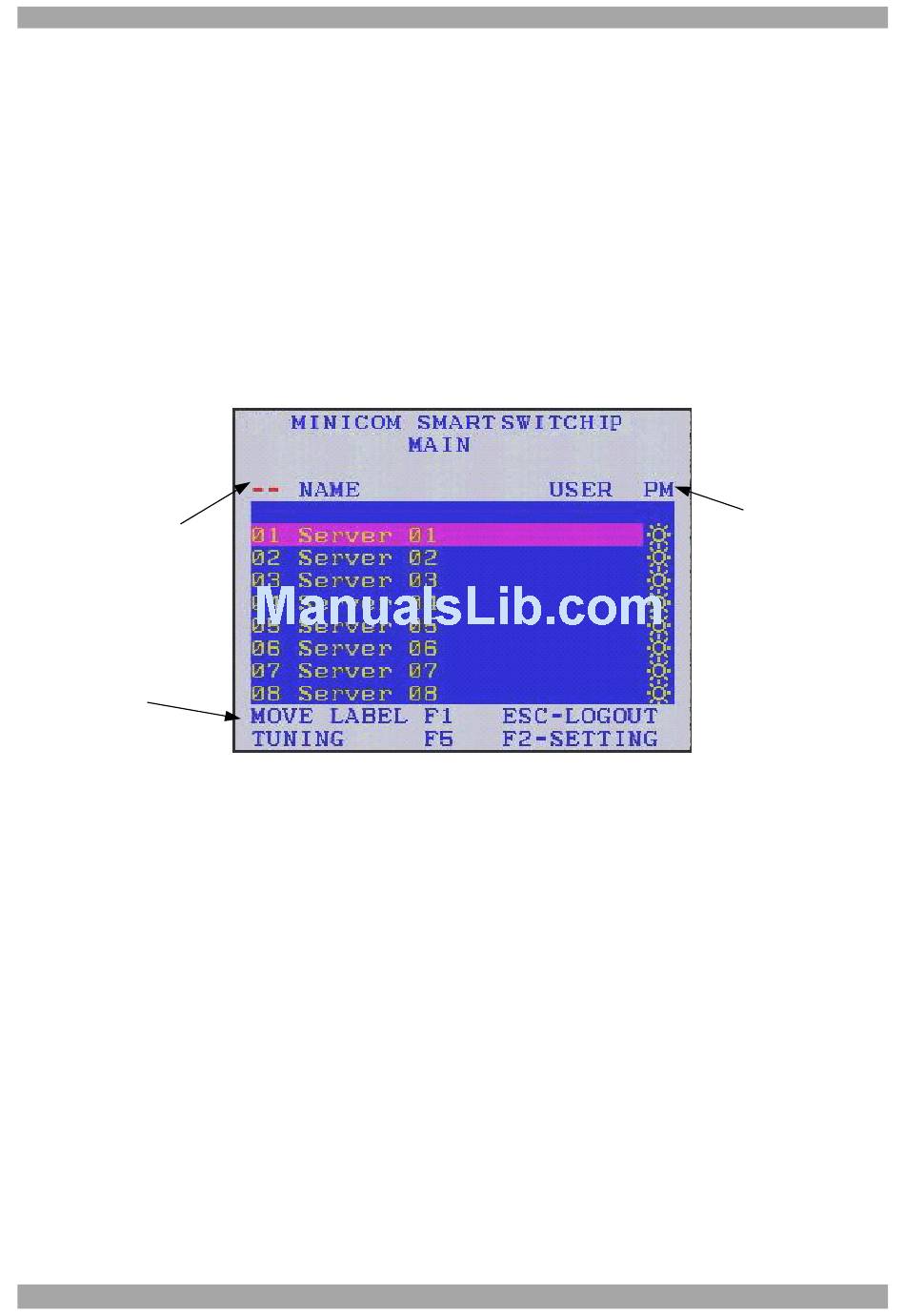

Figure 39 OSD Main window
41
PM=Power
management
