Fitting the front chassis
to the power pack
Items required:
• Front chassis

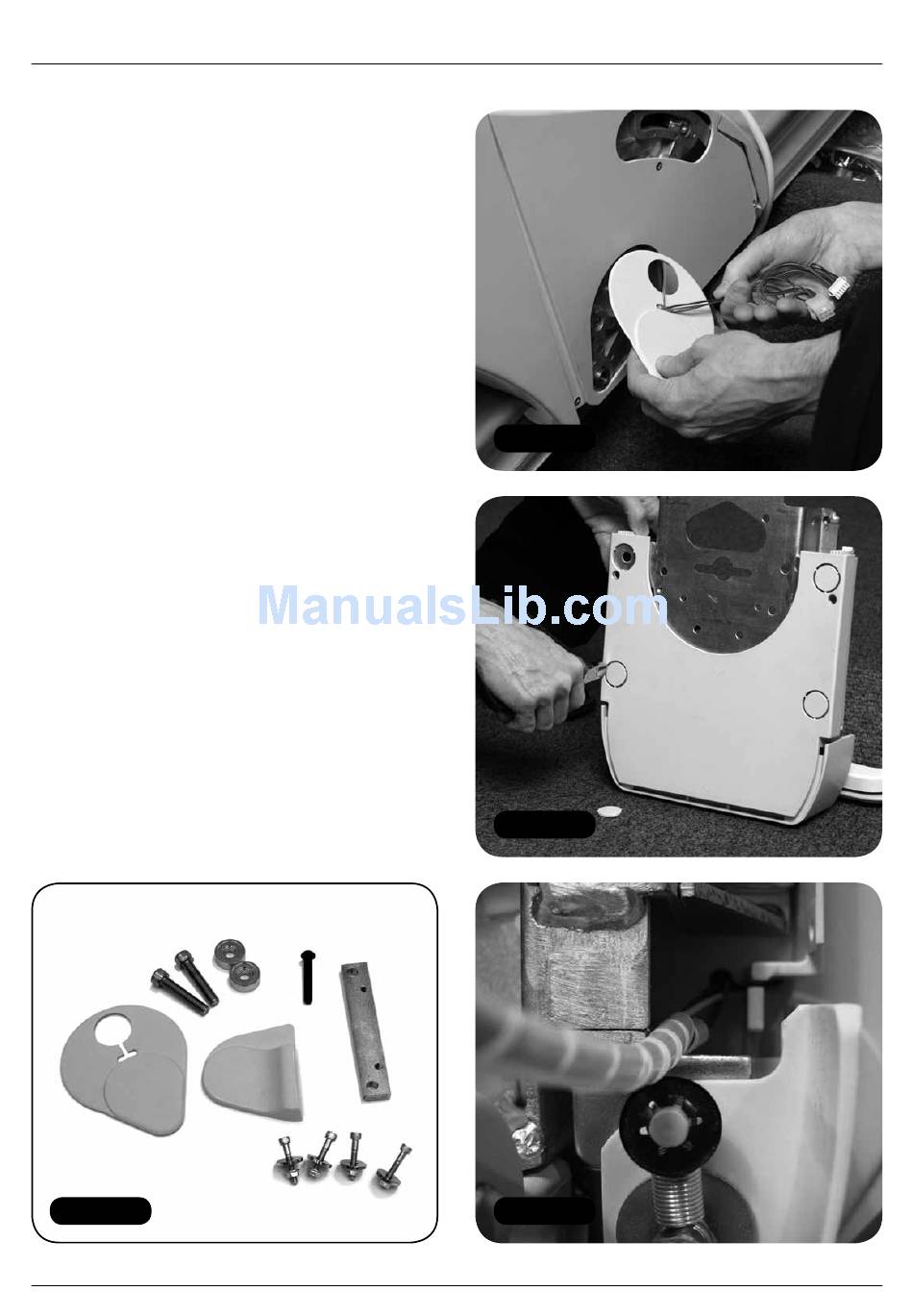

Two cover plates and various front chassis bolts
and fixings should be packed with the front
chassis assembly including the safety bolt and
four seat back bolts (Figure 32).
Before fitting the front chassis feed the loom
through the tear shaped cover plate and then
attach it to the power pack (Figure 33).
1 Depending upon the hand of the stairlift
being fitted, remove the appropriate pair of
knock-outs (Figure 34 – left hand shown).
2 Gently pull down the footplate to get access
to the panel.
3 Ensure that the loom from the pack is
correctly positioned and does not interfere
with the underpan safety edge (Figure 35).
4 Fit the fixing block, bolts and spacers to the
front chassis.

Figure 32

tools required:
• Side cutters
• 6mm Allen key
• 8mm Allen key
• Spirit level
Figure 33
Figure 34
Figure 35
MINIVATOR SIMPLICITY + INSTALLATION MANUAL 13
