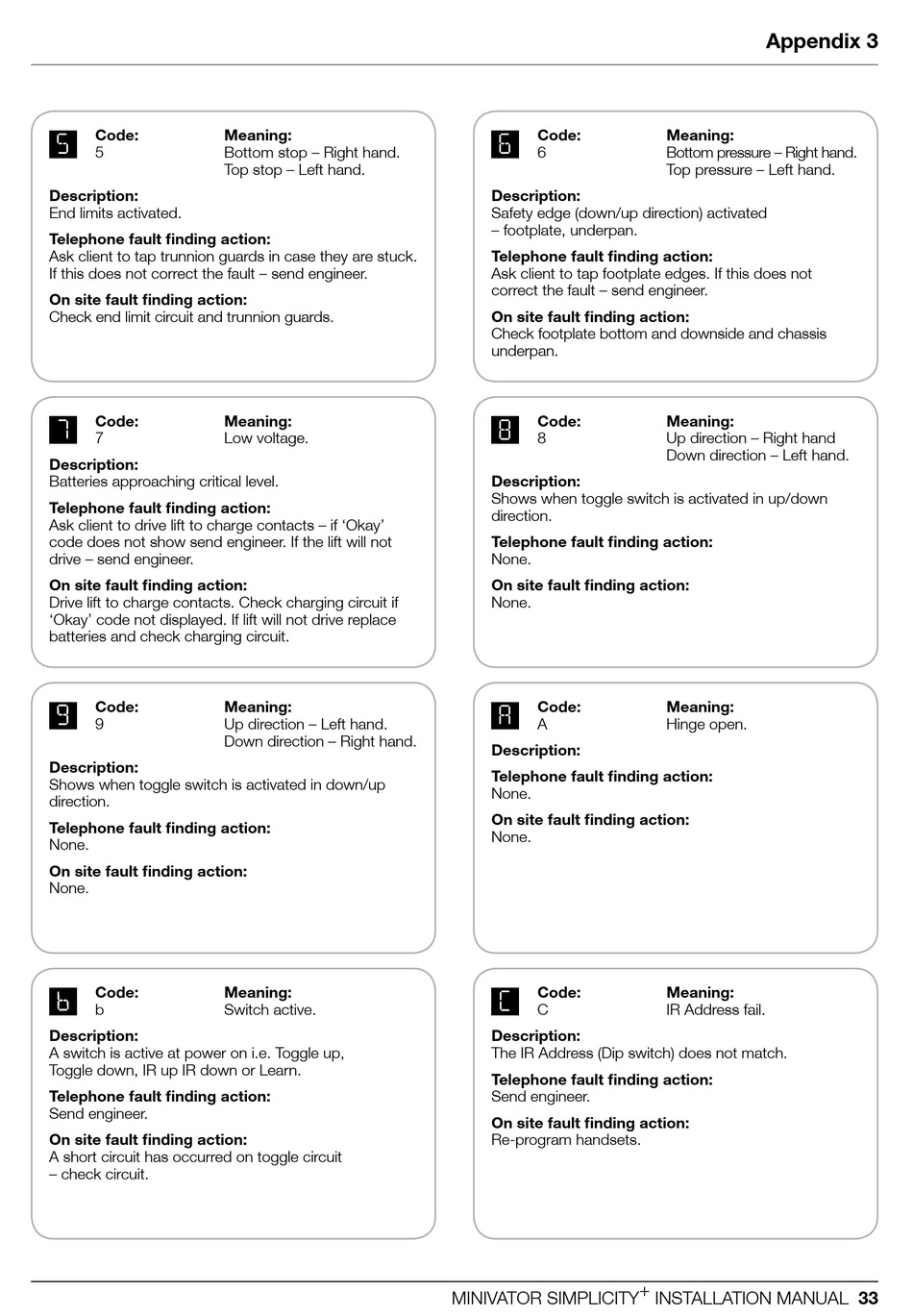

Handicare Simplicity+ Installation Manual page 33

code:
5
5
Description:
End limits activated.
telephone fault finding action:
Ask client to tap trunnion guards in case they are stuck.
If this does not correct the fault – send engineer.
On site fault finding action:
Check end limit circuit and trunnion guards.
code:
7
7
Description:
Batteries approaching critical level.
telephone fault finding action:
Ask client to drive lift to charge contacts – if 'Okay'
code does not show send engineer. If the lift will not
drive – send engineer.
On site fault finding action:
Drive lift to charge contacts. Check charging circuit if
'Okay' code not displayed. If lift will not drive replace
batteries and check charging circuit.
code:
9
Description:
Shows when toggle switch is activated in down/up
direction.
telephone fault finding action:
None.
On site fault finding action:
None.
code:
b
Description:
A switch is active at power on i.e. Toggle up,
Toggle down, IR up IR down or Learn.
telephone fault finding action:
Send engineer.
On site fault finding action:
A short circuit has occurred on toggle circuit
– check circuit.
meaning:
Bottom stop – Right hand.
Top stop – Left hand.
meaning:
Low voltage.
meaning:
Up direction – Left hand.
Down direction – Right hand.
meaning:
Switch active.
code:
6
6
Description:
Safety edge (down/up direction) activated
– footplate, underpan.
telephone fault finding action:
Ask client to tap footplate edges. If this does not
correct the fault – send engineer.
On site fault finding action:
Check footplate bottom and downside and chassis
underpan.
code:
8
8
Description:
Shows when toggle switch is activated in up/down
direction.
telephone fault finding action:
None.
On site fault finding action:
None.
code:
A
A
Description:
telephone fault finding action:
None.
On site fault finding action:
None.
code:
C
C
Description:
The IR Address (Dip switch) does not match.
telephone fault finding action:
Send engineer.
On site fault finding action:
Re-program handsets.
MINIVATOR SIMPLICITY + INSTALLATION MANUAL 33
Appendix 3
meaning:
Bottom pressure – Right hand.
Top pressure – Left hand.
meaning:
Up direction – Right hand
Down direction – Left hand.
meaning:
Hinge open.
meaning:
IR Address fail.
