Handicare Simplicity+ Installation Manual page 4

track assembly
Note: Ensure that the splice bars are positioned
in the track in the correct orientation. The splice
bar has three flat faces and one sloping face.
The sloping face MUST be positioned against
the sloping face on the extrusion (Figure 3).

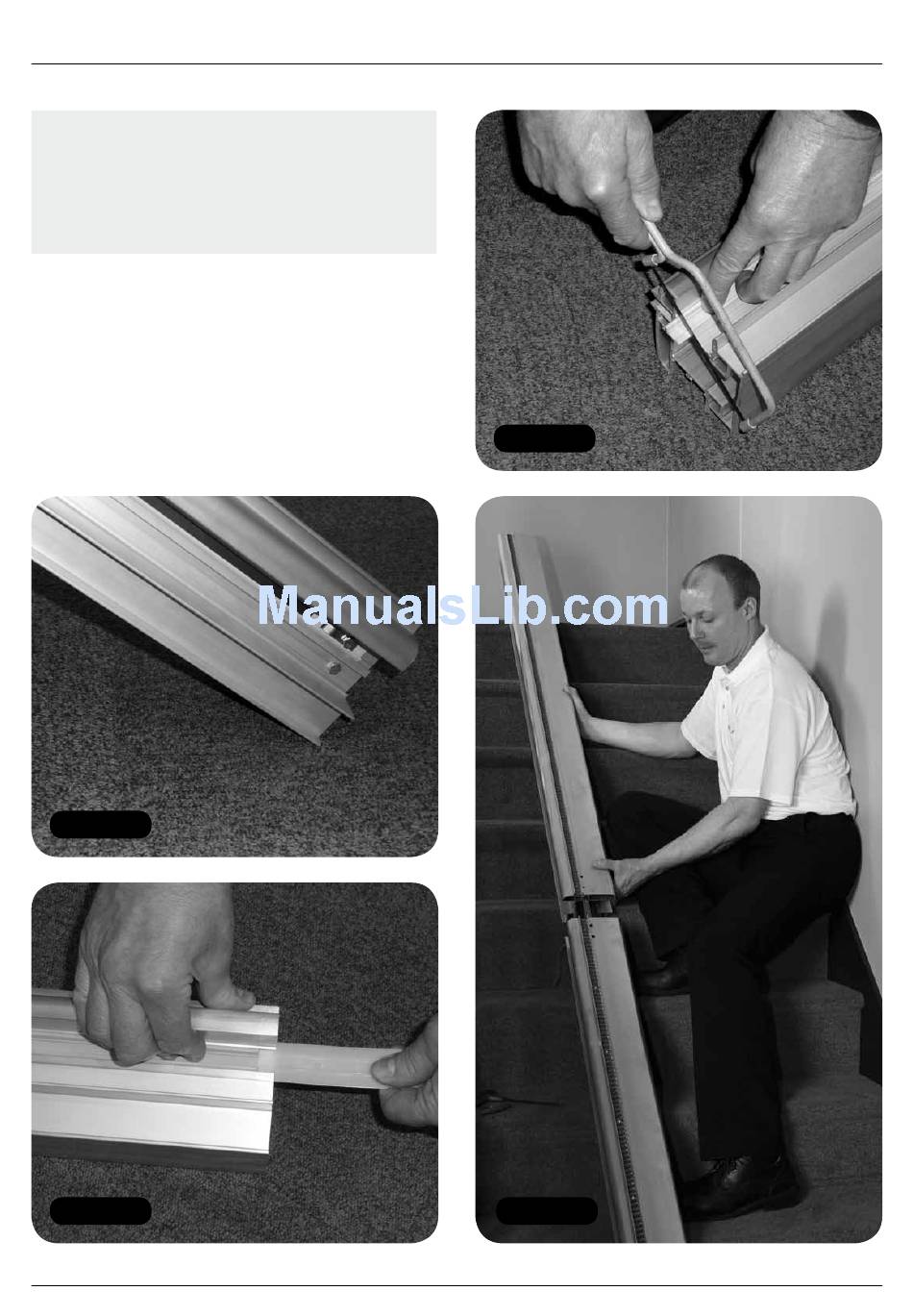

3 If the track is less than 2000mm and cutting
to length on site:
a Remove the charge spring contact
(Figure 4).
b Using the loading tool, push the plastic
carrier strip up the top section of track
(Figure 5).
Figure 4
Figure 5
4 MINIVATOR SIMPLICITY + INSTALLATION MANUAL
Figure 6
Figure 7
