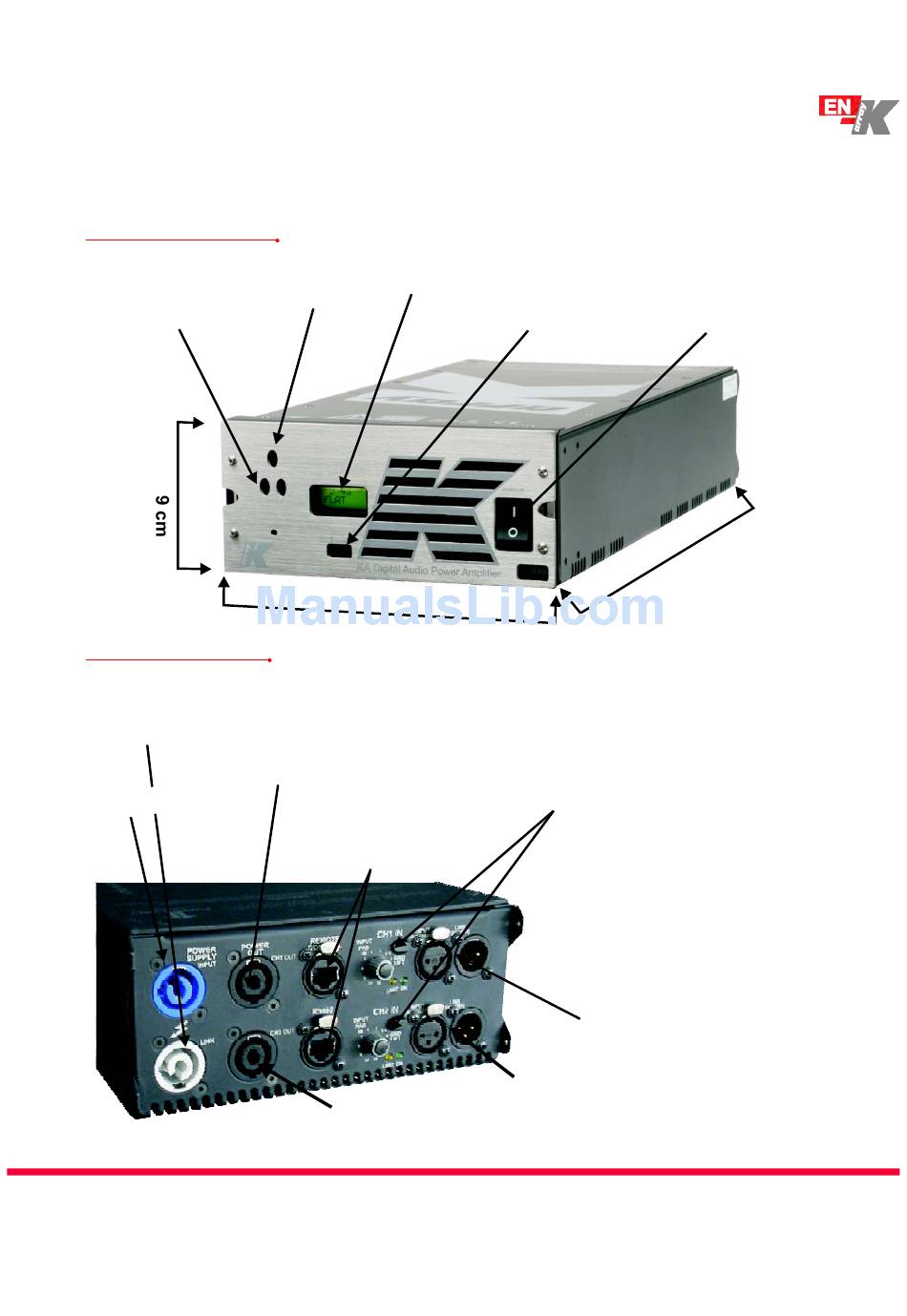

10. FRONT PANEL

Preset selector
(push one to change,
keep 10 sec to store)
Address selector
(rotary x10 - x1)

11. REAR PANEL

Powercon OUT
max 17A
Powercon IN
Display
(ID number -
Preset loaded)
20 cm
CH1 Speakon OUT
(1+ 1-)
CH2 Speakon OUT
(2+ 2-)
RS485 Remote control
(Parallel)
CH2 Speakon OUT
(1+ 1-)
Dual / Link switch
(Dual mode Stereo
independent channels /
Link CH1 & CH2 for Bridge Use*)
Input level PAD
Ground lift switch
CH1 XLR balanced
parallel connectors
CH2 XLR balanced
parallel connectors
*
The link mode is designed for Bridge applications,
the output signal of CH1 & CH2 is out of phase!
9
Power switch
44,5 cm
