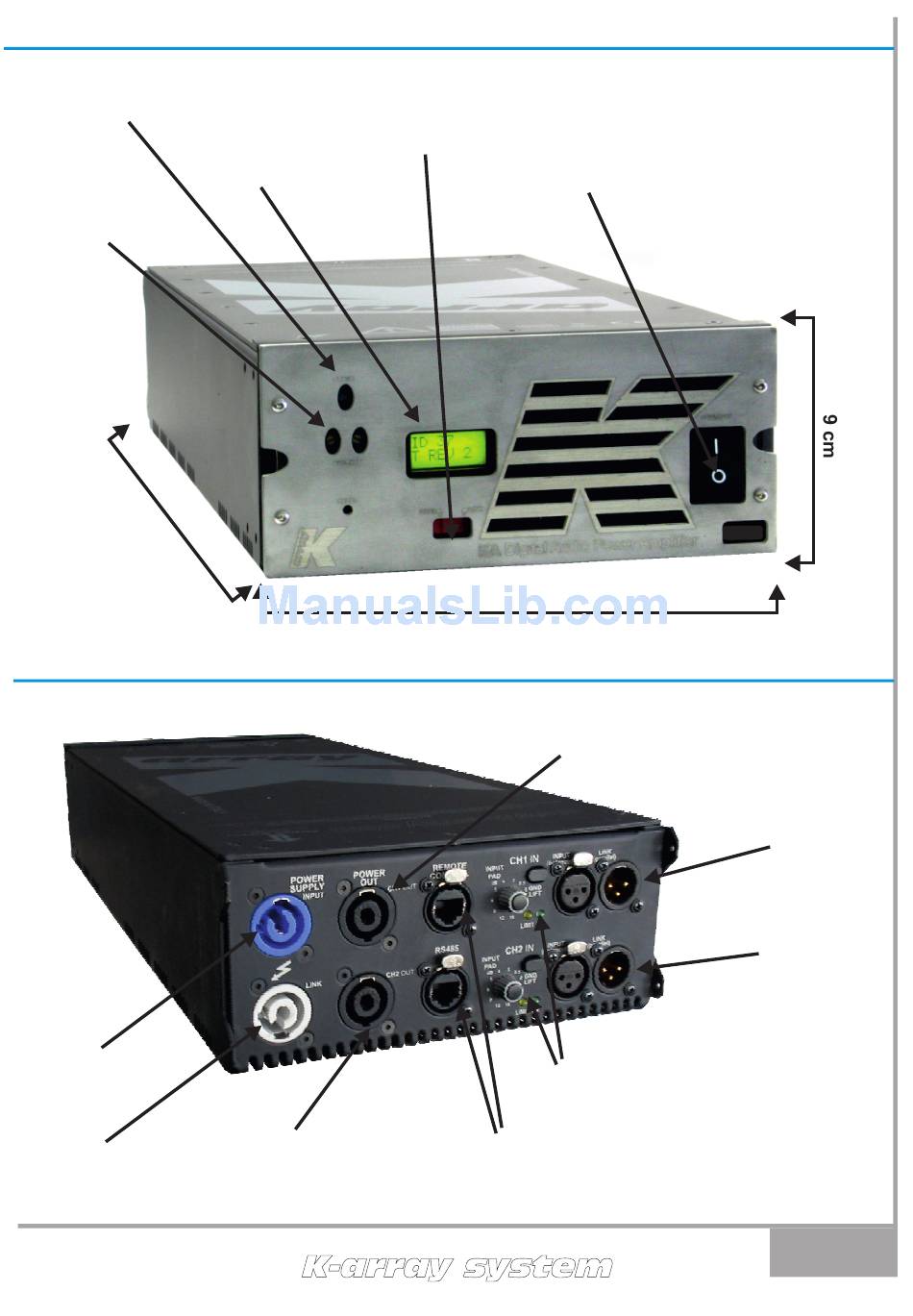

6. FRONT PANEL

Preset selector
(push one to change, keep 10 sec to store)
Address selector
(rotary x10 - x1)
44,5 cm

7. REAR PANEL

Powercon IN
Powercon OUT
max 15A
USER'S MANUAL
Display
(ID number - Preset load)
CH2 Speakon OUT
(1+ 1-)
Sub Speakon OUT
(2+ 2-)
Dual / Link switch
(Dual mode Stereo independent channels / Link CH1 IN to CH1 and CH2 OUT)
Power switch
20 cm
Input level PAD
Ground lift switch
RS485 Remote control
(Parallel)
CH1 Speakon OUT
(1+ 1-)
Sub Speakon OUT
(2+ 2-)
CH1 XLR balanced
parallel connectors
CH2 XLR balanced
parallel connectors
