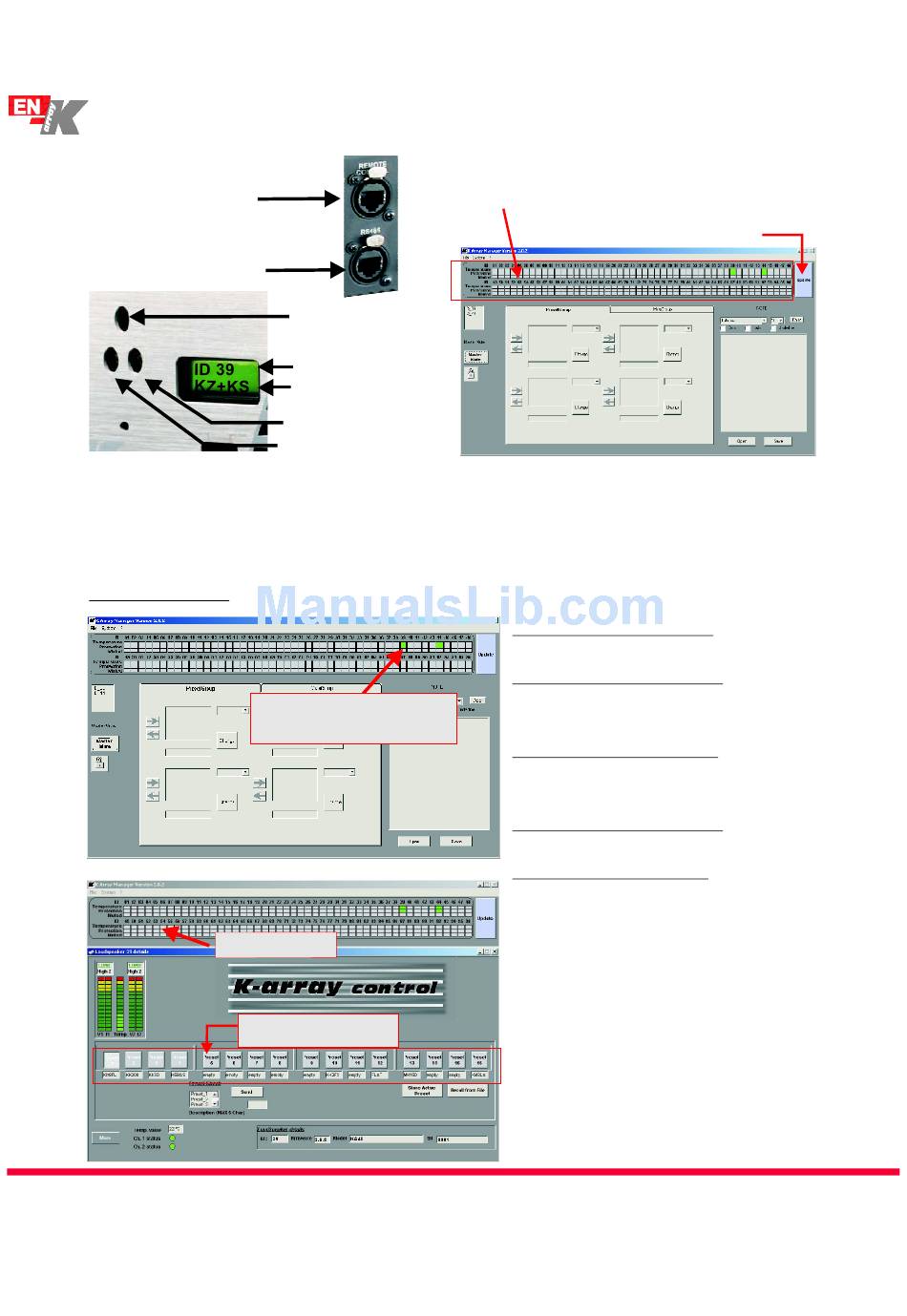

3 . ID setting
FROM PC
TO NEXT MODULE
4 . Single module control
This frame describes the state of all the loudspeakers on the net. The colour of the little rectangles into this
frame represents the status of the loudspeakers. Each loudspeaker has three rectangles. Here there is the
meaning of the rectangle's colour.
Two rectangles on top:
Both rectangles grey : the loudspeaker is not present on the net.
Click once on the ID module
that you want control.
M o d u l e s t a t u s
P r e s e t s l o t s o n t h e
On this bars you can see all the
modules connected in your net.
PRESET SELECTOR
ADDRESS
PRESET IN USE
ID X 1
ID X 10
12
Pressing this button you can have a
refresh of the modules connected.
Temperature rectangle red
inside that loudspeaker is over-temperature.
Temperature rectangle green
inside that loudspeaker have a good
temperature.
Protection/Fail rectangle red
module inside that loudspeaker is in
protection.
Temperature rectangle green
inside that loudspeaker are working properly.
Temperature rectangle black: if this rectangle
is black it means that the loudspeaker is not
responding.
The main causes of this malfunction are loss
of power supply and loss of serial connection
between the hub and the loudspeaker. Check
the hardware. If this rectangle is black will be
black also the Protection/Fail.
Protection/Fail rectangle black: see above.
The remaining rectangle: Is related to the
mute function; if red, the related loudspeaker
is in "mute" status.
: one module
: all modules
: at least one
: all modules
