KA24/KA84

9. AC PowER

KA24 and KA84 operate safely and without audio discontinuity if the AC voltage stays within an operating
range of 90 V to 264 V (nominal range: 100-240 V) at 50-60 Hz. Please verify that your AC main
connections are capable of satisfying the power rating for the device.
CAUTION. Do not connect the system to AC power mains exceeding 265 V. Doing
so will cause significant damage to the device and create serious risk for users!

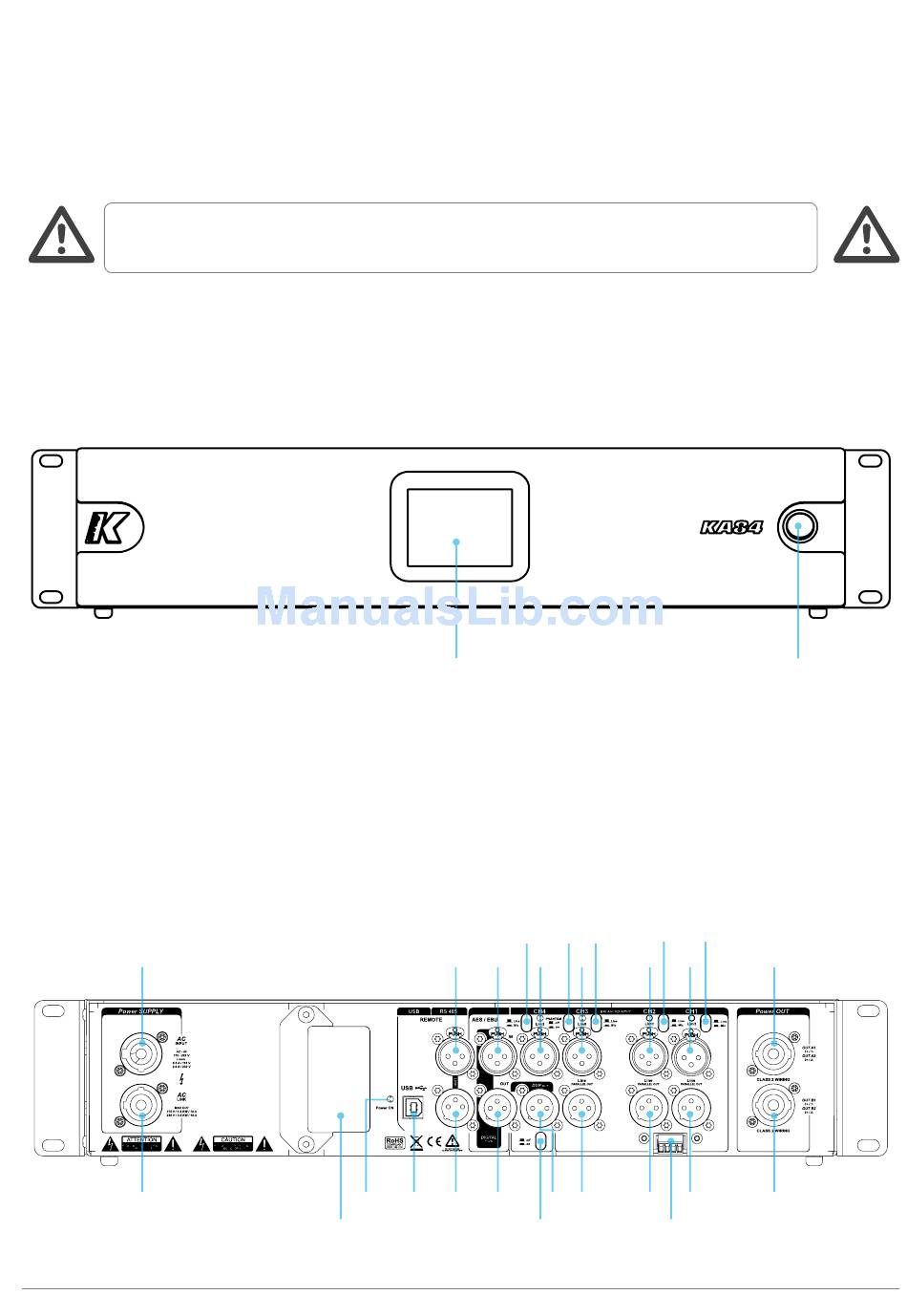

10. fRoNT PANEL

1. TOUCH SCREEN Control panel. Provides access to the main functions of the DSP on board
2. POWER SWITCH. Turns the amplifier on and off.

11. BACK PANEL

3
4
9
1
24 20
CH 5 - 6
5 26 25 21
27
13 14 12 11
9 8 7 6
16
18 17 16 15
19 28
Ver. 1.2
2
(see Section 12)
10
22
23
