Basic setup and operation instructions

Positioning the screen and projector

1. Install the screen, ensuring that it is in the best position for viewing by your audience.
2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill
the screen. Set the adjustable feet so that the projector is level, and perpendicular to the screen.

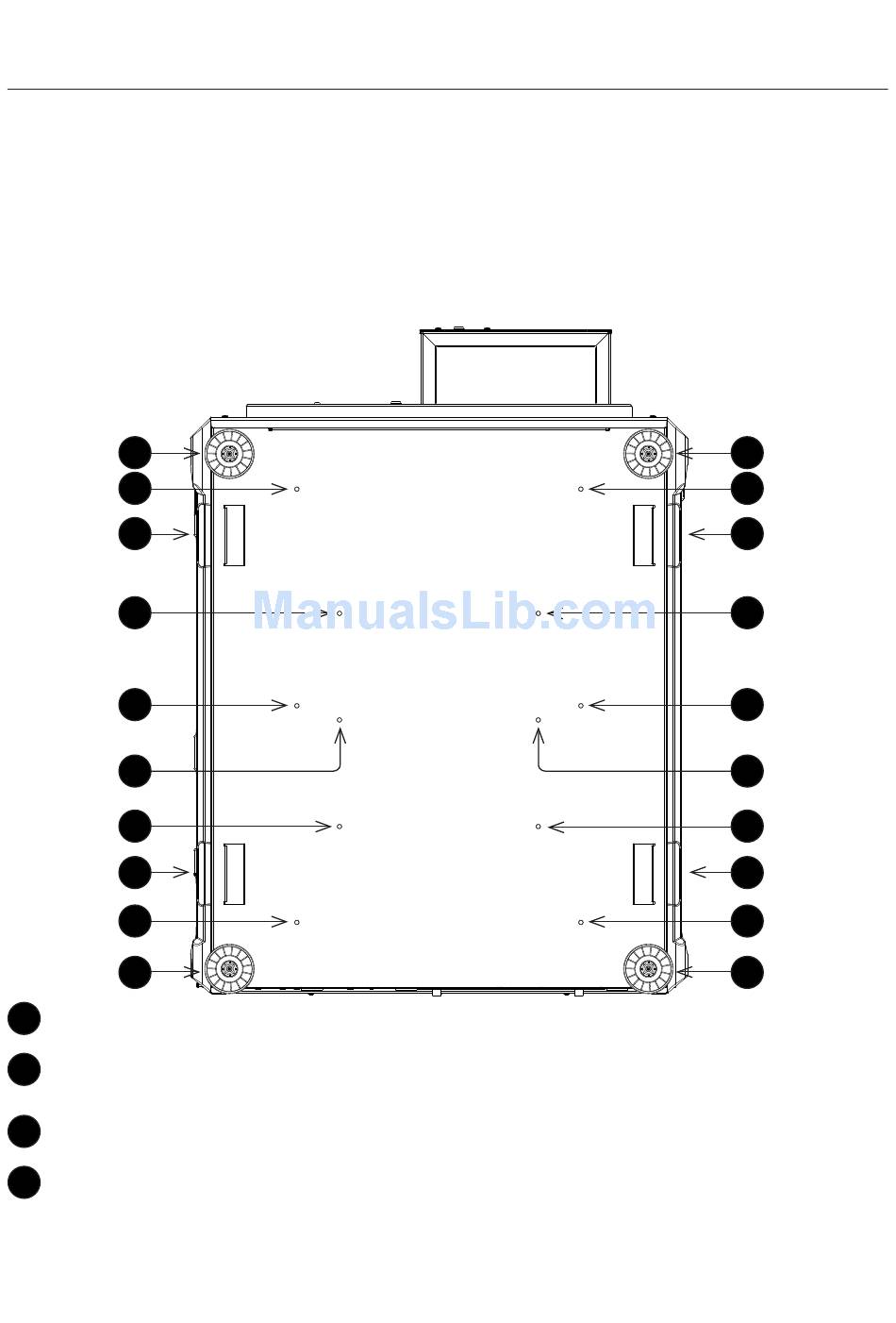

The drawing below shows the bottom of the projector. The positions of the feet for table mounting, and
the fixing holes for ceiling mounting are clearly visioble. The illustration also shows the positions of the
four handles which facilitate safe carriage.
1
2
3
4
2
4
4
3
2
1
1
Four adjustable feet
2
Six M6 holes for ceiling mount (set A)
The screws should not penetrate more than 15 mm into the body of the projector.
3
Handles for safe carriage
4
Six M6 holes for ceiling mount (set B)
The screws should not penetrate more than 15 mm into the body of the projector.
Important Information
1
2
3
4
2
4
4
3
2
1
Page 19
