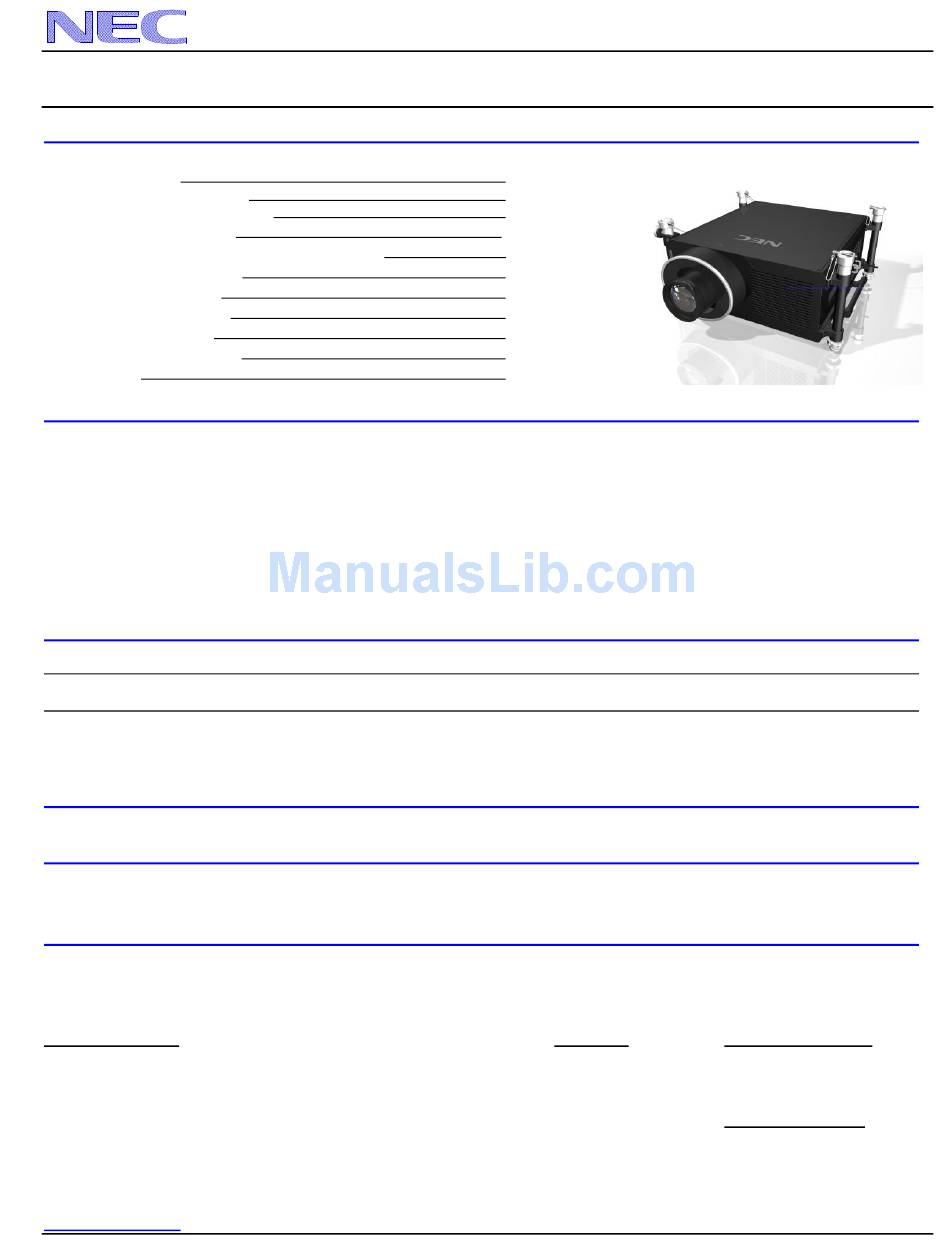

NEC NP-PH1400U Installation Manual

PH1000U/PH1400U Installation Guide
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions (Front, Top, Left, Right, Back)
Cabinet Dimensions (Bottom)
Optional Lens Dimensions
Optional Mount Dimensions
Ventilation Requirements
Input Panel and Button Panel
Control Codes

Product Description

Type: 3 chip DMD Reflection Type
0.96 in. 2x LVDS DMD
Resolution: 1920 x 1200 (16:10)
Fan Noise: PH1000U: 43 dB / 39dB @ 1 meter
PH1400U: 48 dB / 44dB @ 1 meter
Power Consumption: PH1000U: 1100W (max)
PH1400U: 1215W (max)
Network Ready, integrated wired and wireless adapter
Powered: Horizontal & Vertical Lens Shift, Zoom, Focus

Lens Specifications

NP25FL: Throw Ratio: ~ 0.67:1
Screen Sizes: 77"-215"
Throw Ratio: 1.39 - 1.87:1 Focal Length: 28.9 - 38.9mm
NP26ZL:
Screen Sizes: 100-500"
Throw Ratio: 1.87. - 2.56:1 Focal Length: 39.0 - 53.4mm
NP27ZL:
Screen Sizes: 100-500"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes

For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.
Formulas: 16:10 Aspect Ratio (PH1000U-WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for "W" in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas:
C = 0.707W - 3.15
NP25FL:
C(Wide) = 1.395W - 3.676 ------ C(Tele) = 1.877W - 3.592
NP26ZL:
C(Wide) = 1.883W - 3.425 ------ C(Tele) = 2.576W - 3.425
NP27ZL:
NP28ZL: C(Wide) = 2.530W + 7.750 ------ C(Tele) = 4.112W + 7.469
NP29ZL: C(Wide) = 4.092W + 9.770 ------ C(Tele) = 6.850W + 9.699
NP32ZL: C(Wide) = 0.927W - 2.671 ------ C(Tele) = 1.115W - 2.671
www.necdisplay.com
Focal Length: 14.6mm
F/#: 2.5
F/#: 2.5 ___ ______
F/#: 2.5
PH1000U/PH1400U
NEC Display Solutions of America, Inc.
Pg 1
Pg 1-2
Pg 3-4
Pg 5
Pg 6
Pg 7
Pg 8-9
Pg 10-11
Pg 12
Pg 13
Pg 14
Dimensions: 25.7"(W) x 13.1"(H) x 27.6"(D)
Weight: 87.1 lbs. / 39.5kg
Brightness: PH1000U: 11,000 Lumens
PH1400U: 14,000 Lumens
BTU's:
PH1000U: 3754 BTU/hour
PH1400U: 4146 BTU/hour
NP28ZL: Throw Ratio: 2.56 -4.16:1
Screen Sizes: 100-500"
Throw Ratio: 4.16 - 6.96:1
NP29ZL:
Screen Sizes: 100-500"
Throw Ratio: 0.9 - 1.1:1
NP32ZL:
Screen Sizes: 70-600"
Definitions:
W = Image Width
H = Image Height (size)
C = Throw distance
Rev 1.1
Focal Length: 52.4 - 85.3mm
F/#: 2.5
Focal Length: 84.9 - 142mm
F/#: 2.5
Focal Length: 19.4 - 23.3mm
F#: Wide - 2.5
Tele - 2.7
16:10 Screen Formulas
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
16:9 Screen Formulas
W = H x 16/9
H = W x 9/16
Screen Diagonal = W x 18.358/16
Page 1 of 14
