HANDRAIL CONNECTION

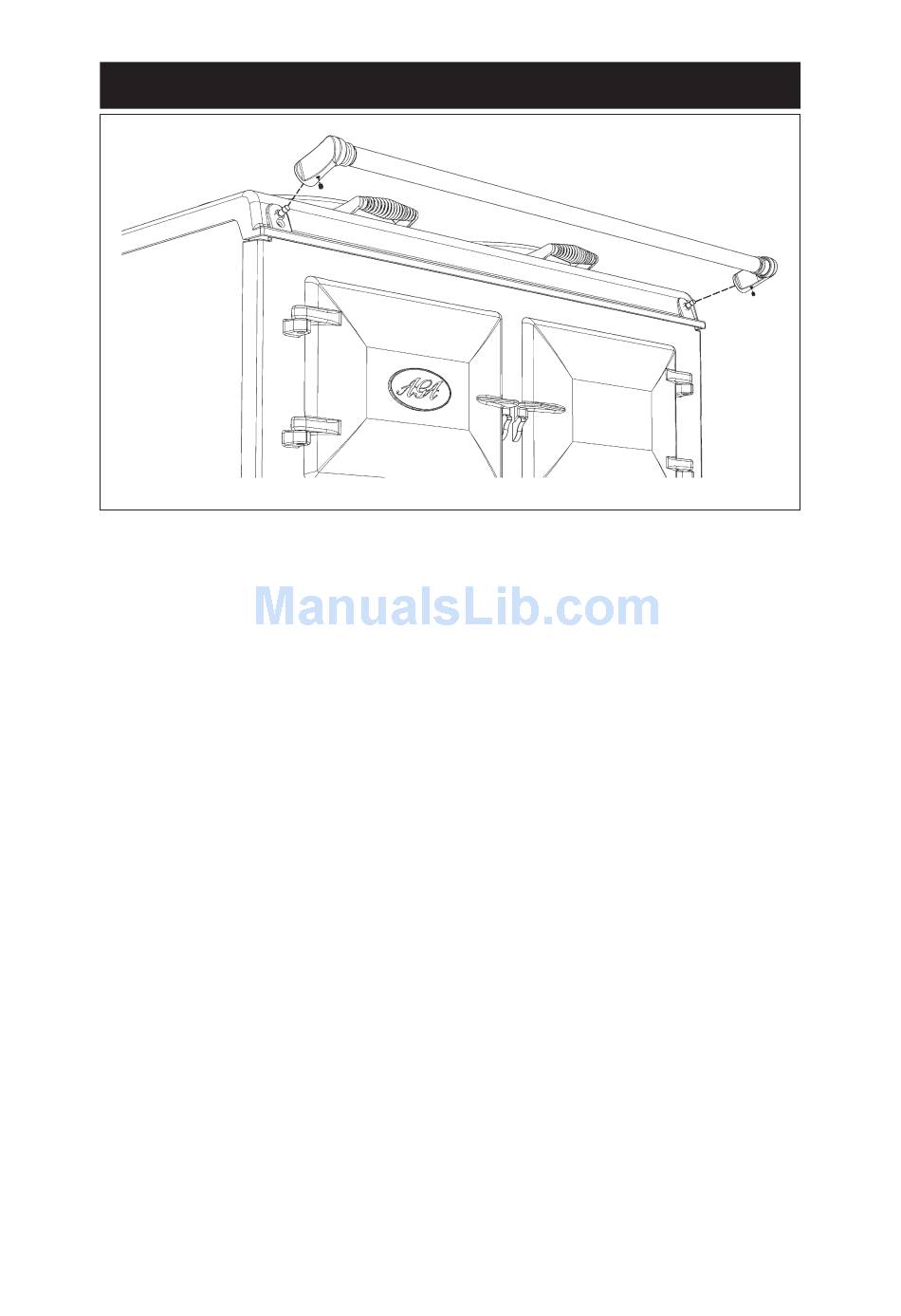

Fig. 6
DESN 516357
Handrail brackets, endcaps and handrail require assembly.
Locate endcaps onto handrail, place brackets over endcaps and then slide complete assembly
onto locating studs.
Once assembly is correctly located, lock into position with grub screws (located on underside
of handrail).
11
