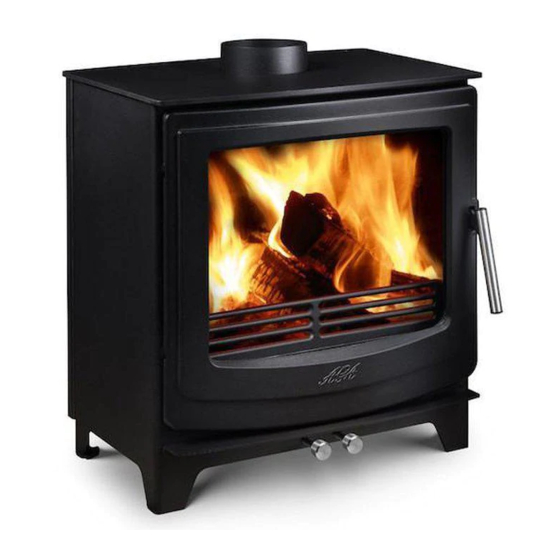

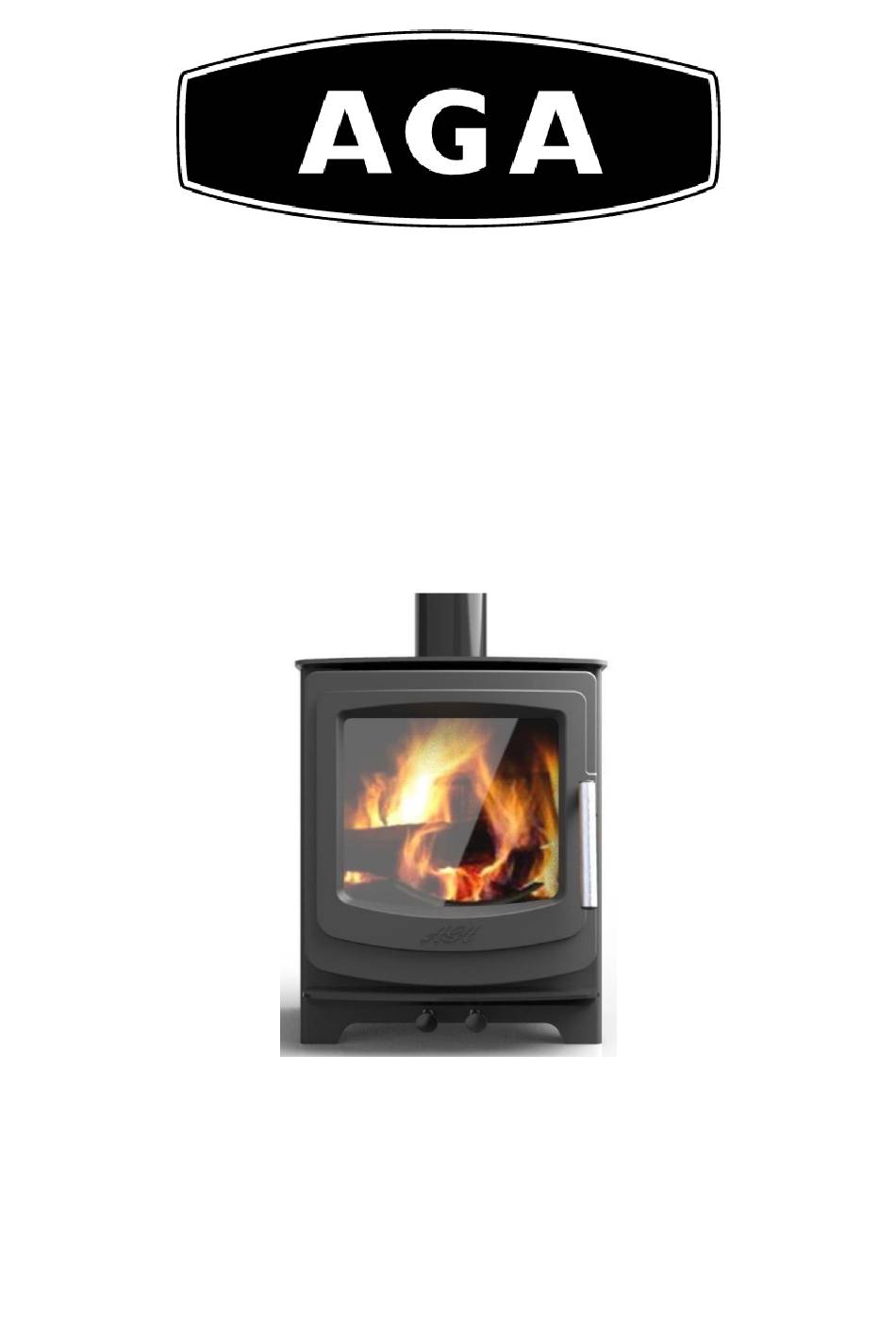

- Page 1 Ellesmere Standard Model Electric Stove INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CUSTOMER: PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE. For use in GB & IE (United Kingdom and Ireland) Document No. : RH/ELEC/ELL/AS/AM – Iss 02/01/2020 File: Ellesmere Electric ECE-AS Standard_User_Man.doc...
-
Page 2: Table Of Contents
Do not store or use Petrol or any other flammable vapors and liquids in the vicinity of this or any other appliance. AGA Ellesmere Electric Standard Stove Page 2 Installation & User Manual... - Page 3 This can we found inside the front door above the bottom hinge What date was your stove Installed? Installation Date: The AGA Name, Model & Type Name - Ellesmere Standard Model – ELL/ELEC/A5S reference for this stove is Type – Electric...
- Page 4 When installing & operating this stove there must be a free flow of air all around the complete stove so a free flow of air can enter the rear air vent of the stove without any restriction AGA Ellesmere Electric Standard Stove Page 4 Installation & User Manual...
- Page 5 Never use the heater to dry clothes or other objects. Never remove the stove from the fireplace without isolating the electric supply, ensure this stove is EARTHED AGA Ellesmere Electric Standard Stove Page 5 Installation & User Manual...
-
Page 6: Electrical Safety Test Certificate
This AGA Electric Stove has been fully tested and CE Approved in the UK by KIWA Blackwood Compliance Laboratories, a leading European Test Agency Electrical Safety Test Certificate Manufacturer: AGA Rangemaster Product Name/Model: Ellesmere Standard Electric Stove ELL/ELEC/A5S Description: Room heater... -
Page 7: Important Instructions
25. Packaging material should be kept away from children and be disposed of in a safe manner. Plastic bags are not toys and should be kept away from children and infants. AGA Ellesmere Electric Standard Stove Page 7 Installation & User Manual... -
Page 8: The Do's & Don'ts
Never use the heater to dry clothes etc. Never sit or stand on the heater. Never use with a timer or any other device that switches the fire on automatically. AGA Ellesmere Electric Standard Stove Page 8 Installation & User Manual... -
Page 9: Stove Dimensions
STOVE DIMENSIONS Manual Controls and the ON/OFF Switch Front View Right Hand Side View Rear View Top View Drawings are Not to Scale AGA Ellesmere Electric Standard Stove Page 9 Installation & User Manual... -
Page 10: Installation Onto A Non-Combustible Hearth
225mm from the front of the door of the stove Minimum of 100mm from the rear of the stove Minimum of 75mm either side of the stove Page 10 AGA Ellesmere Electric Standard Stove Installation & User Manual... - Page 11 Pet Hairs and Carpet Fluff, this must be regularly cleaned so the vents are clear of foreign objects, such as dust, debris and fibres. The 240 volt socket is to the side - marked as Black Square with White Border AGA Ellesmere Electric Standard Stove Page 11 Installation & User Manual...
-
Page 12: Unpacking And Testing Appliance
Current Device (RCD) to the ring main supply circuit to this stove. Please Hand this Manual to the customer/User for retention and future instructions in the safe operation of the appliance. AGA Ellesmere Electric Standard Stove Page 12 Installation & User Manual... -
Page 13: What Comes With The Stove
Item 1 - Log Media Pack Item 2 - Remote Control Item 3 - 2 x AAA Batteries Item 4 - Power Cable Item 3 – Power Code AGA Ellesmere Electric Standard Stove Page 13 Installation & User Manual... -
Page 14: Fitting The Rear Wall Fixing Bracket
Stove Bracket will be Mounted onto Step 2 - Insert 3 X 30mm Long Brown Rawplugs into the 3 drilled holes in the back wall (marked as item 1) AGA Ellesmere Electric Standard Stove Page 14 Installation & User Manual... - Page 15 Step 4 - Offer up the fire to the wall bracket so the two brackets align fit the 2x no. M5 x 20mm long cap screw supplied into bracket adjust distance to wall to suit (max 102.5mm, min 65mm) tighten screws AGA Ellesmere Electric Standard Stove Page 15 Installation & User Manual...
- Page 16 Please note the 3 pin Plug must be plugged into a wall mounted three pin socket (which is part of your 13 amp ring main) not an extension lead or a multi plug in the wall socket. AGA Ellesmere Electric Standard Stove Page 16 Installation & User Manual...
-
Page 17: Setting Up The Log Set & Media
Large Bag of Amber Glass Bead Embers place over the logs and Amber glass beads to enhance to be placed onto LED light base of the the real log burning feature stove AGA Ellesmere Electric Standard Stove Page 17 Installation & User Manual... -
Page 18: Log Set - Sample Layout
Step 1 - Now you are ready to place the media and logs into your stove Firstly pour the bag of amber glass beads onto the glass base plate which will allow the light from the base lights to diffuse and glow AGA Ellesmere Electric Standard Stove Page 18 Installation & User Manual... - Page 19 You probably won’t want to use all 11 x logs in the fire bed at the same time but keep the extra ones safe as this gives you the option to change the log bed design when you wish Now sit back and enjoy AGA Ellesmere Electric Standard Stove Page 19 Installation & User Manual...
-
Page 20: Operating Your Stove - Understanding The Icons
Press this button to adjust the temperature setting between 7℃ and 30 ℃ The buzzer beeps when the remote key is pressed; This is the Shift Key button to adjust the settings AGA Ellesmere Electric Standard Stove Page 20 Installation & User Manual... - Page 21 Side Screen on stove light is BLUE indicates heater is on the Low Heat setting of 950W Side Screen on stove light is YELLOW indicates Open Window Function is on Side Screen on stove light is GREEN indicates Timer Function is on Page 21 AGA Ellesmere Electric Standard Stove Installation & User Manual...
-
Page 22: Manually Operating The Stove - Instructions
When used in remote control mode you can mix all of the 3 lights and brightness’s together or just have one and/or two light colour(s) on independently to set the mood you require in the room Page 22 AGA Ellesmere Electric Standard Stove Installation & User Manual... -
Page 23: Remote Control Operation - Instructions
Once the stove has been turned on as described in 1 above, you can just operate turning On/Off the bottom base LED lights and rear flame using the button on the remote control. Page 23 AGA Ellesmere Electric Standard Stove Installation & User Manual... - Page 24 Note: in case the heating elements are turned on by remote control, whether the heating elements work or not depends on the temperature setting and ambient temperature. They work only when the temperature setting is above the ambient temperature. Page 24 AGA Ellesmere Electric Standard Stove Installation & User Manual...
- Page 25 , set the parameters for Tuesday. Press for the 7th time and it displays . Press for the 8th time and it exits and recovers to the current week day; Page 25 AGA Ellesmere Electric Standard Stove Installation & User Manual...
- Page 26 It heats for 6 minutes every 30 minutes (position H2). If the temperature rise is more than 2℃, the window is considered as closed, and the indicator ℃ stops flashing. Page 26 AGA Ellesmere Electric Standard Stove Installation & User Manual...
-
Page 27: Stove Reset Sequence
AS PET HAIRS, CARPET FLUFF, DUST, DEBRIS OR FIBRES CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the plastic components. Page 27 AGA Ellesmere Electric Standard Stove Installation & User Manual... - Page 28 BOTTOM GLASS 10125025 CANOPY LIGHT 10101221C FLAME MOTOR 3215505 3216505 3217505 FLICKER ASSEMBLY 10702245 10702247 10702248 BACK GLASS 601136B 601136B 1/0/2 TRAY LED STRIP 601137B 0/1/0 10105203 REMOTE CONTROL Page 28 AGA Ellesmere Electric Standard Stove Installation & User Manual...
-
Page 29: Exploded View & Parts Lists
M6 CSK x 30mm Screw Handle Pivot 10509 M6 CSK x 25mm Screw 10510 A5 Glass Gasket 10511 A5 Standard Electric AGA Glass 10512 15, 16 & 17 Glass Clips & Fixing Screws & Washers 10513 18 & 19 Handle Roller and Fixing Screw... -
Page 30: Trouble Shooting
Replace AAA batteries in remote Unit switch in “O” position not work control Turn the switch in “I” position Flame is fixed Wiring may be loose or the flame motor may be defective Page 30 AGA Ellesmere Electric Standard Stove Installation & User Manual... -
Page 31: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES: Page 31 AGA Ellesmere Electric Standard Stove Installation & User Manual... - Page 32 Any warranty claims have to be dealt with by the retailer you purchased the stove from, the retailer will then contact AGA to deal with any...
- Page 33 The liability on AGA Stoves total liability extends only to the purchase price paid for the goods by the Premium Retailer, except where such a limitation is prohibited by statute. AGA Stoves, in the event of a warranty claim, reserve the right to either replace the goods in question or to refund the purchase price of the goods as paid by the Premium Retailer.
- Page 34 & Manufactured in the UK This stove conforms to all relevant European Directives With AGA Rangemaster’s Policy of Continuous Product Improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time...
