Section 4 System: Operation; Control Panel - Thermal Dynamics cutskill 35A Operating Manual

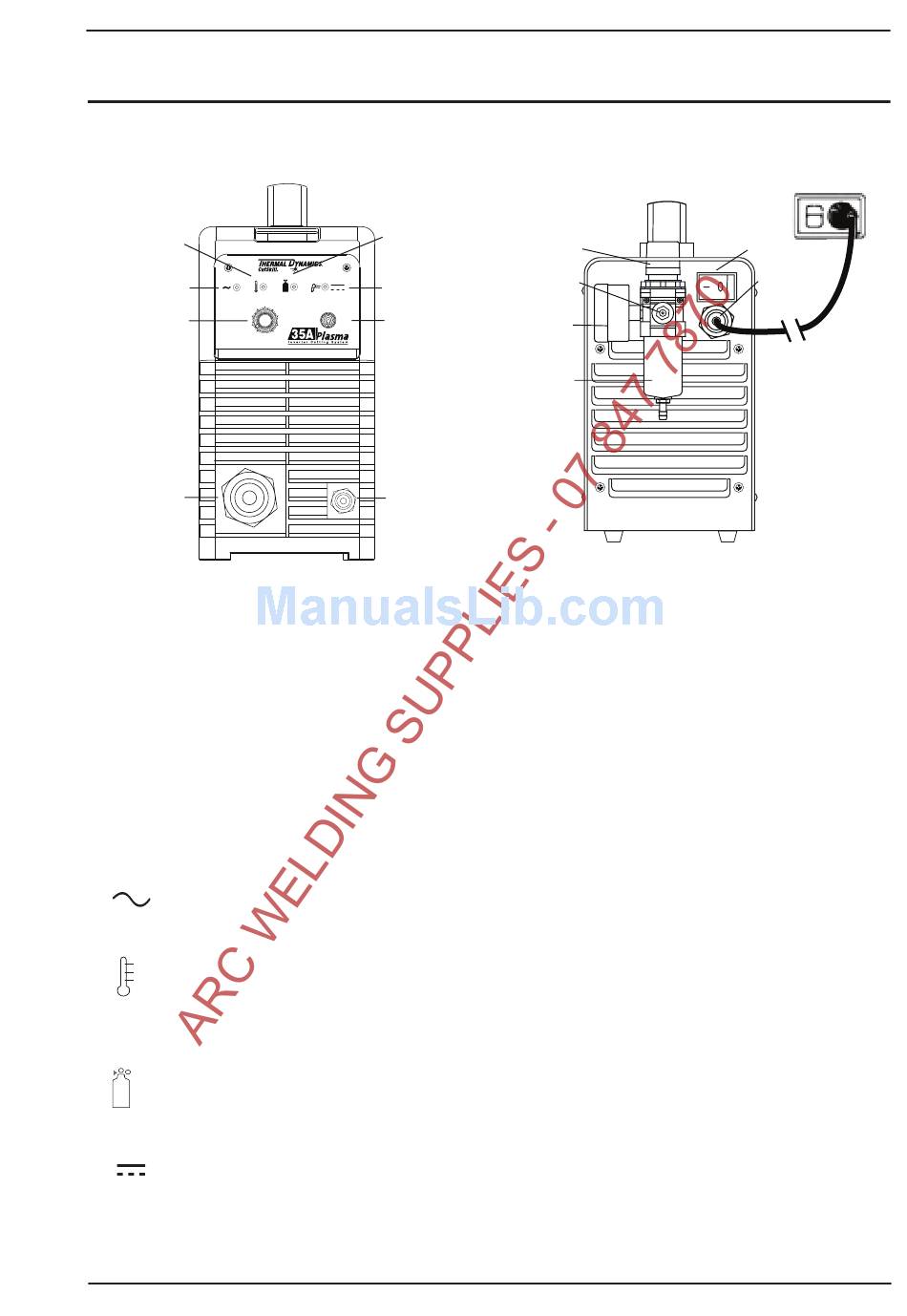

4.01 Control Panel

Over Heat Indicator
POWER OVERHEAT
Power On Indicator
Cutting Current Control
15
CURRENT (A)
Torch Connection
The Front Panel
1. ON / OFF Switch (Power Switch)
Controls input power to the power supply. I is ON, O is OFF.
2. RUN / SET Switch
RUN (up) position is for general torch operation. SET (down) position is for setting gas pressure and
purging lines.
3. (A) Output Current Control
Sets the desired output current. If the overload protection (fuse or circuit breaker) on the input power
circuit opens frequently, either reduce cutting output, reduce the cutting time, or connect the unit to more
adequate input power. Refer to Section 2 for input power requirements.
4. Power ON Indicator (AC Indicator)
Steady light indicates power supply is ready for operation.
5. OVERHEAT Indicator (TEMP Indicator)
Indicator is normally OFF. Indicator is ON when internal temperature exceeds normal limits. Allow the unit
to run with the fan on until the temp indicator turns off.
6. AIR Indicator
AIR light should be ON when there is insufficient gas pressure (below 50 psi).
7. READY (DC Indicator)
Indicator is ON when DC output circuit is active.
June 30, 2009
SECTION 4 SYSTEM:
OPERATION
Air Indicator
AIR READY
DC Indicator
25
Run/Set Switch
RUN
SET
35
Work Lead Connection
Art # A-09179
Adjustment knob
of compressed
air Pressure
Compressed
air input
Compressed air
pressure meter
Air filter
The Rear Panel
4-1
cutSKILL 35A
Power switch
Power cable
input
Art # A-09180
OPERATION
