cutskill 35A

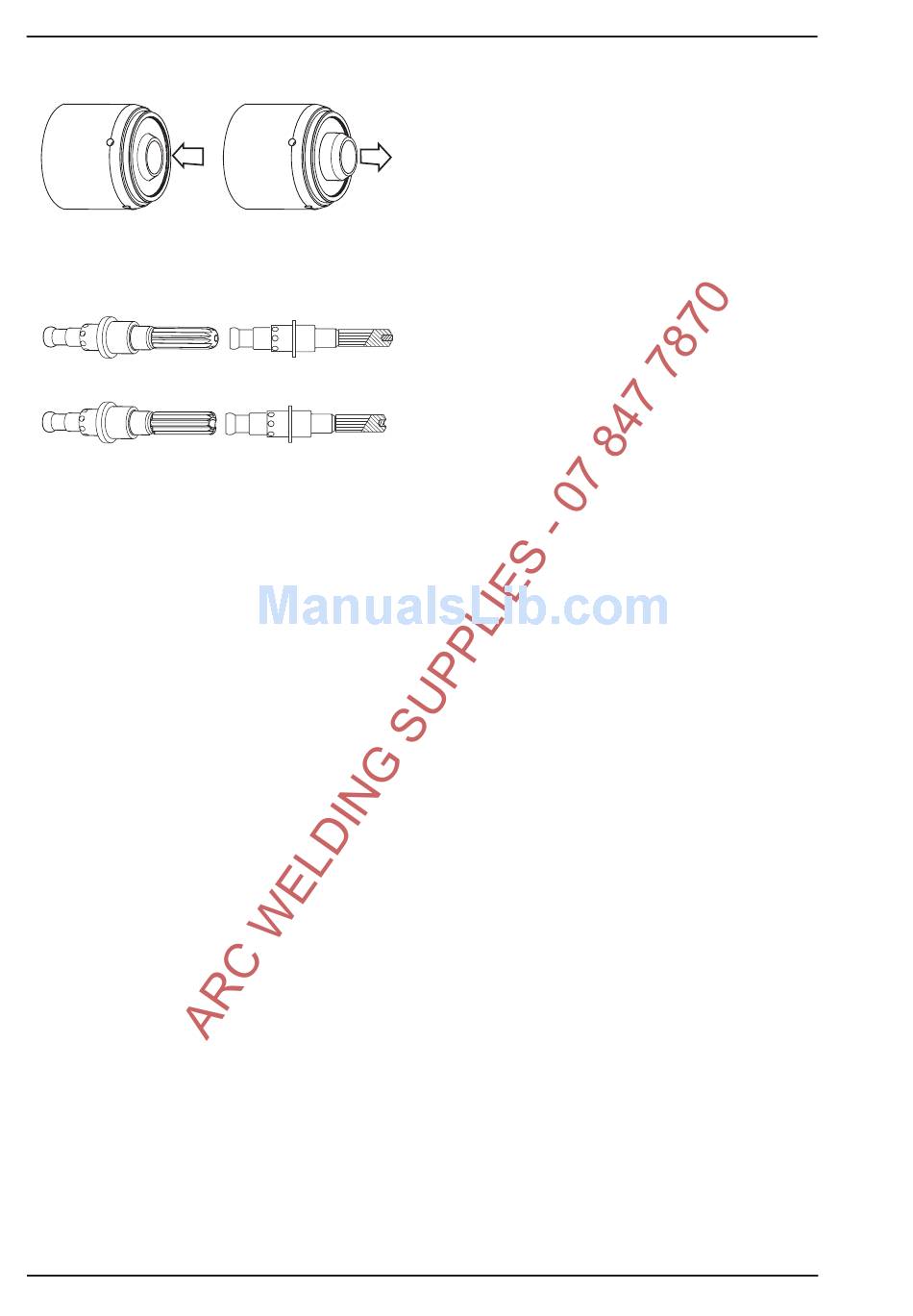

Spring-Loaded
Lower End Fitting
Full Compression 1/8"(3mm)
5. Pull the electrode straight out of the torch head.
Check the face of the electrode for excessive
wear. Refer to the following figure.
New Electrode
Worn Electrode
Art # A-03284
Electrode Wear
6 . Reinstall the electrode by pushing it straight into
the torch head until it clicks.
7 . Reinstall the desired starter cartridge and tip into
the torch head.
8. Hand tighten the shield cup until it is seated on
the torch head. If resistance is felt when install-
ing the cup, check the threads before proceed-
ing.
SERVICE
Spring-Loaded
Lower End Fitting at Reset /
Full Extension
Art # A-08064_AB
5T-2 June 30, 2009
