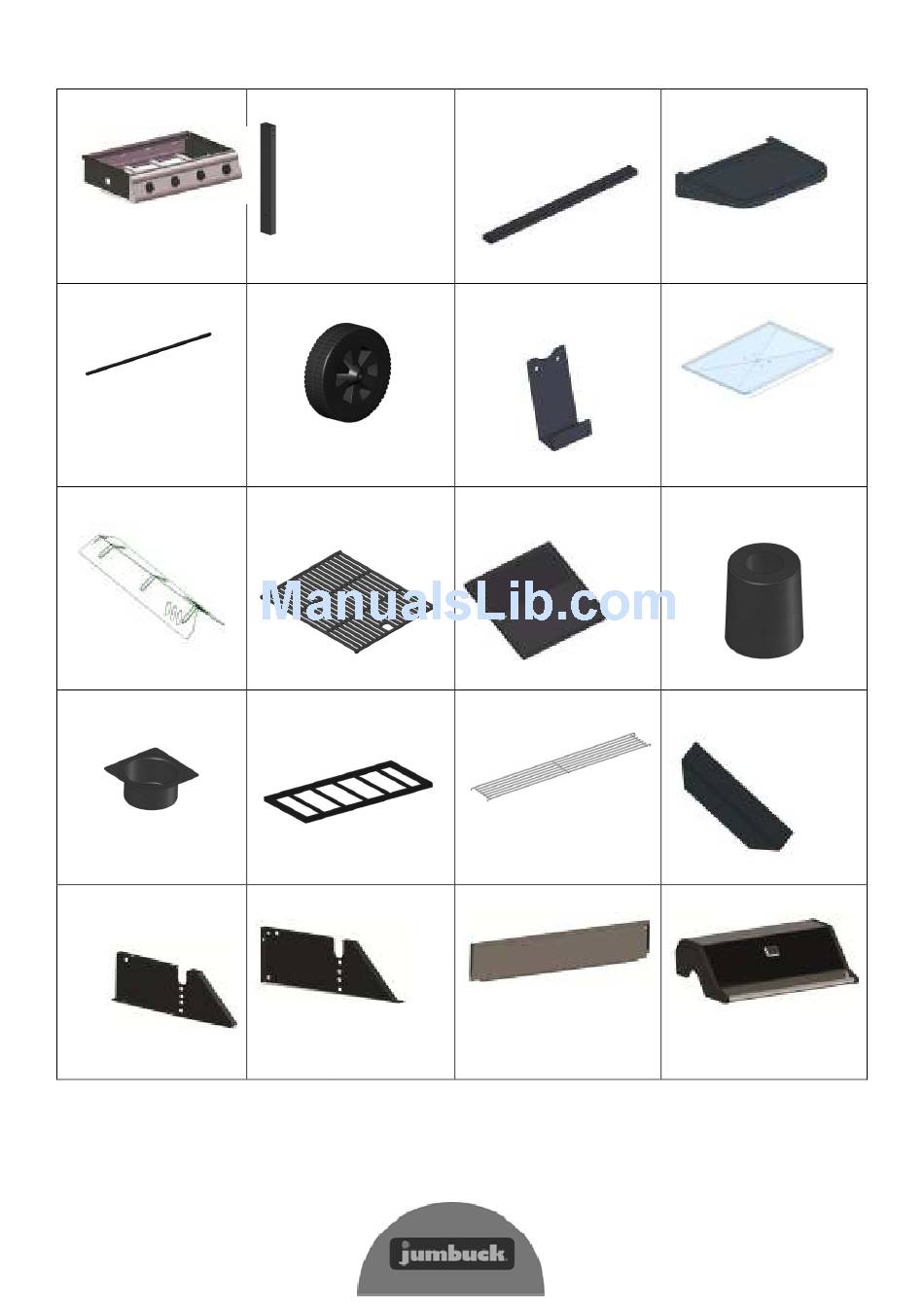

Jumbuck HS-UM006D Assembly & Operation Instructions page 7

1.BBQ body .... 1pc
5. wheel axis....1pcs
9. Flame tamer.. 2pcs
13. Oil cup ....... 1pc
17.body side L
up.....1pc
2. Leg-L.... ......... 2pcs
6 . Wheel(170) ... 2pcs 6 . Wheel(170) ... 2
10. Cooking grid Cooking grid......
1pc
14.Bottom ottom shelf... 1pc
18.Body side R up..1pc 19.body back up...1pc 18.Body side R up..1pc
3. Leg-R ......... 2pcs
7. Cylinder Hook.......
1pc
11.Cooking plate......
1pc
15.Warm grid.....1pc
4. Side panel ..... 2pcs
8. Grease tray.....1pc
12. Spacer........ 8pcs
16.Leg support....2pcs
20.Hood...1pc
