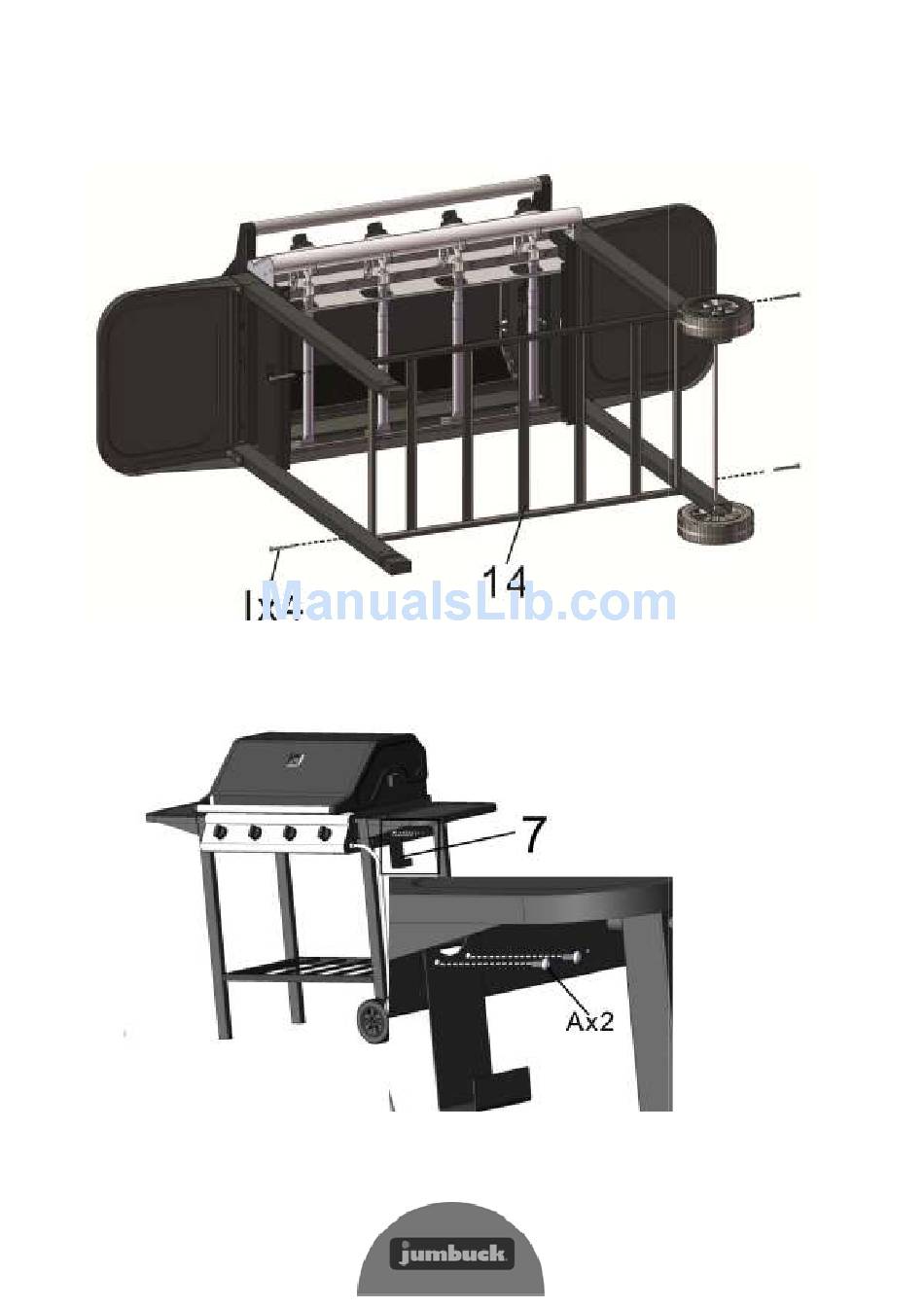

STEP 7
Assemble bottom shelf(part 14) as shown
Assemble bottom shelf(part 14) as shown
STEP 8
Assemble cylinder hook (Part 7), use bolt to tighten.
Assemble cylinder hook (Part 7), use bolt to tighten.
