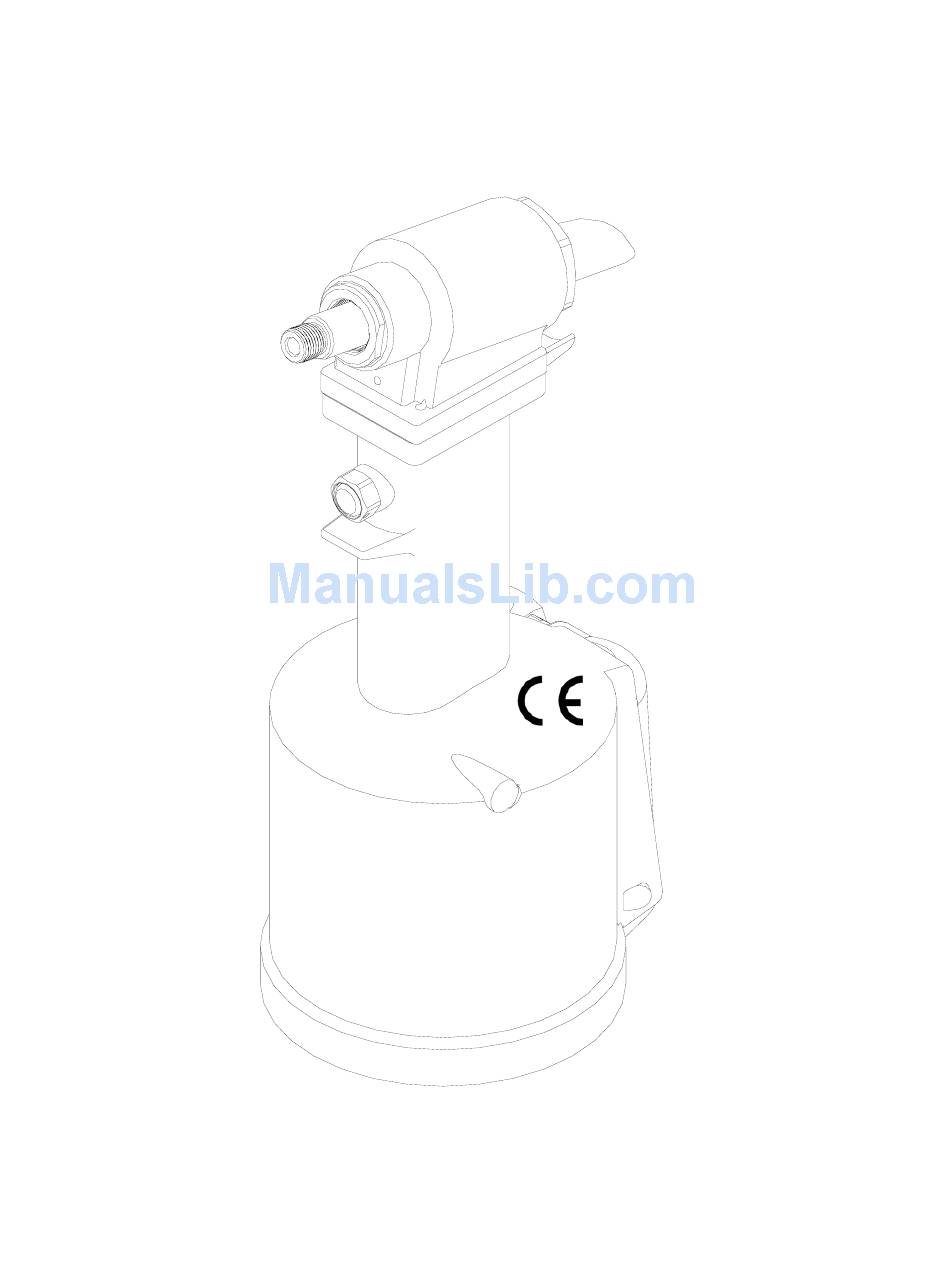

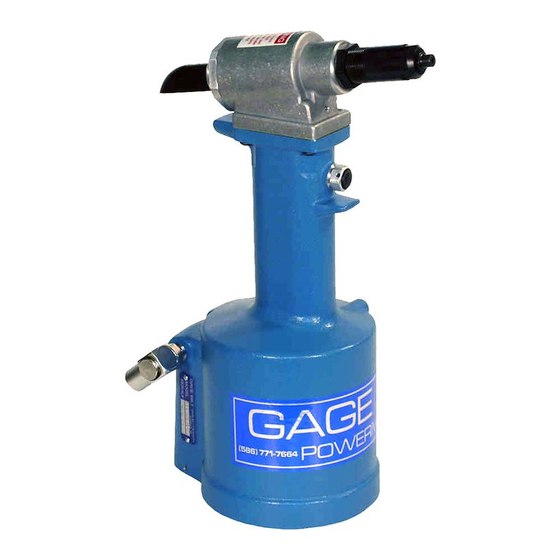

- Page 1 GBP744E INSTALLATION TOOL GAGE BILT PRODUCTS CORP. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail:solutions@gagebilt.com / www.gagebilt.com...
-
Page 2: Specifications
TABLE OF CONTENTS Description Page Warnings............................3 Description, Operation and Maintenance................4 Filling, Bleeding and Troubleshooting..................5 Parts Breakdown........................6 Parts List............................7 Overhaul and Disassembly.......................8 Nose Assembly Selection Chart....................9 EU Conformity and Warranty....................10 1.94 Ø (49.2mm) 1.36 Ø (34.5mm) 1.84 2.25 (46.7mm) (57.1mm) 1.50 (38.1mm) 4.74 (120.3mm) - Page 3 TOOL. COMPLETE WITH WARNINGS AND CAUTIONS TO PREVENT SEVERE PERSONAL INJURY OR DAMAGE THE TOOL. CAUTION: GAGE BILT TOOLS ARE APPROVED TO INSTALL HUCK®, AVDEL®, CHERRY®, POP® AND OTHER FASTENERS WHEN USED BY PERSONS WITH SPECIFIC TRAINING OF BLIND RIVET AND LOCKBOLT INSTALLATION EQUIPMENT.
-
Page 4: Maintenance
3800 pounds on 90 psi air pressure at the air inlet. The GBP744E riveter operates on a wide range of air pressure, with 90 to 120 psi providing the maximum efficiency. At 90 lbs. air pressure, the GBP744E does not exceed 85 db (A) and consumes 6.5 cfm at 20 cycles per minute. - Page 5 FILLING AND BLEEDING TOOL WARNING DO NOT CYCLE TOOL WITHOUT AIR BLEEDER, OR THE SCREW AND STAT-O-SEAL, INSTALLED IN TOOL HEAD. SEVERE PERSONAL INJURY MAY RESULT. CAUTION BEFORE FILLING HANDLE, AIR PISTON SHOULD BE ALL THE WAY DOWN. To replace a small amount of oil in the tool, attach the air bleeder and connect tool to air line. Cycle a number of times. Disconnect air, remove the air bleeder, and reinstall the cap screw.
- Page 6 O'RING IN POLSYSEAL MUST FACE IN THIS DIRECTION 6/08...
- Page 7 GBP744E Parts List Ref. No. Part Num ber Description Qty. 744103 Head Cylinder Assembly 402482 Button Head Socket Screw S572 Stat-O-Seal 401088 Back-Up Ring A-260 O'Ring 744409 Piston A-1135 Polyseal 400792 O'Ring S892 O'Ring 744414 200232 Deflector S832 O'Ring 704129...
-
Page 8: Air Valve
OVERHAUL The disassembly and re-assembly procedure can be accomplished by utilizing the following instructions and drawings. Use extreme care during disassembly and re-assembly not to mar or nick any smooth surface that comes in contact with seals. Before installing seals, always apply a good lubricant, such as Lubriplate, to the surfaces. - Page 9 GBP744E SELECTION CHART NOSE ASSEMBLY FASTENER DIA. Straight Right Angle Offset CHERRYMAX® 456MAX-701-17 456MAX-753A-54 456MAX-763A-43 1, 2 1, 2 1, 2 1, 2 1, 2 1, 2 ALLMAX® 5/32 456MAX-744-20 456MAX-744-50OS HUCKMAX® 3/16 456MAX-749-35 1, 2, 3 1, 2, 3 HUCK-CLINCH®...
-
Page 10: Declaration Of Conformity
ISO 8662 part 1 ISO 3744 COUNCIL DIRECTIVE: 89/392/EEC, 91/368/EEC 93/44/EEC, 93/68/EEC EQUIPMENT DESCRIPTION: GBP700 SERIES FASTENER INSTALLATION TOOLS MANUFACTURER: GAGE BILT PRODUCTS CORP. SIGNATURE: NAME:BRUCE T. GODFREY CHAIRMAN WARREN, MI U.S.A. JUNE 2003 WARRANTY Seller warrants that all goods covered by this catalog will conform to applicable specifications and will replace, or repair, F.O.B.
