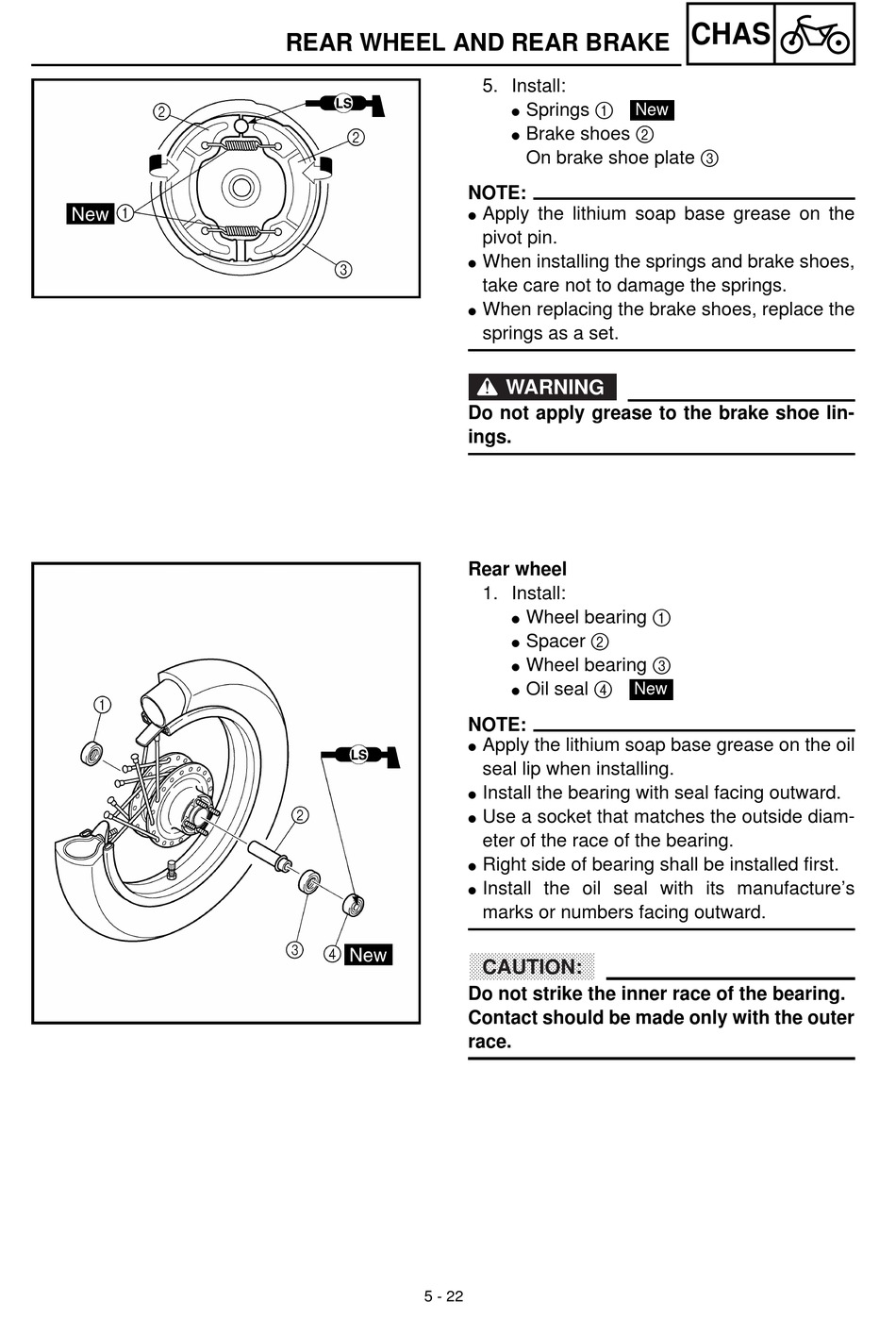

REAR WHEEL AND REAR BRAKE
5 - 22
5. Install:
Springs 1
New
Brake shoes 2
On brake shoe plate 3
NOTE:
Apply the lithium soap base grease on the
pivot pin.
When installing the springs and brake shoes,
take care not to damage the springs.
When replacing the brake shoes, replace the
springs as a set.
WARNING
Do not apply grease to the brake shoe lin-
ings.
Rear wheel
1. Install:
Wheel bearing 1
Spacer 2
Wheel bearing 3
Oil seal 4
New
NOTE:
Apply the lithium soap base grease on the oil
seal lip when installing.
Install the bearing with seal facing outward.
Use a socket that matches the outside diam-
eter of the race of the bearing.
Right side of bearing shall be installed first.
Install the oil seal with its manufacture's
marks or numbers facing outward.
CAUTION:
Do not strike the inner race of the bearing.
Contact should be made only with the outer
race.
CHAS
