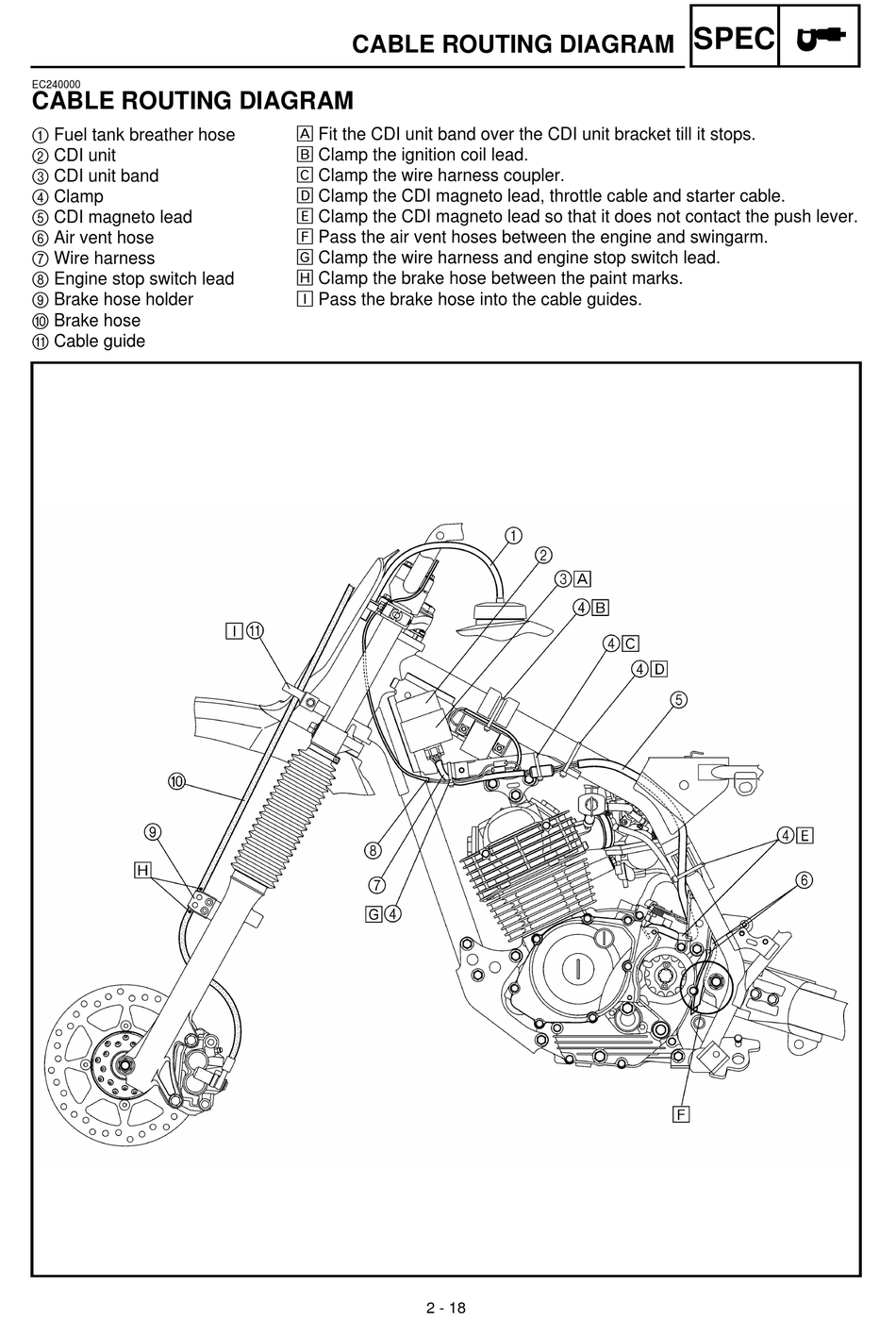

CABLE ROUTING DIAGRAM

1 Fuel tank breather hose
2 CDI unit
3 CDI unit band
4 Clamp
5 CDI magneto lead
6 Air vent hose
7 Wire harness
8 Engine stop switch lead
9 Brake hose holder
0 Brake hose
A Cable guide
CABLE ROUTING DIAGRAM
Å Fit the CDI unit band over the CDI unit bracket till it stops.
ı Clamp the ignition coil lead.
Ç Clamp the wire harness coupler.
Î Clamp the CDI magneto lead, throttle cable and starter cable.
‰ Clamp the CDI magneto lead so that it does not contact the push lever.
Ï Pass the air vent hoses between the engine and swingarm.
Ì Clamp the wire harness and engine stop switch lead.
Ó Clamp the brake hose between the paint marks.
È Pass the brake hose into the cable guides.
