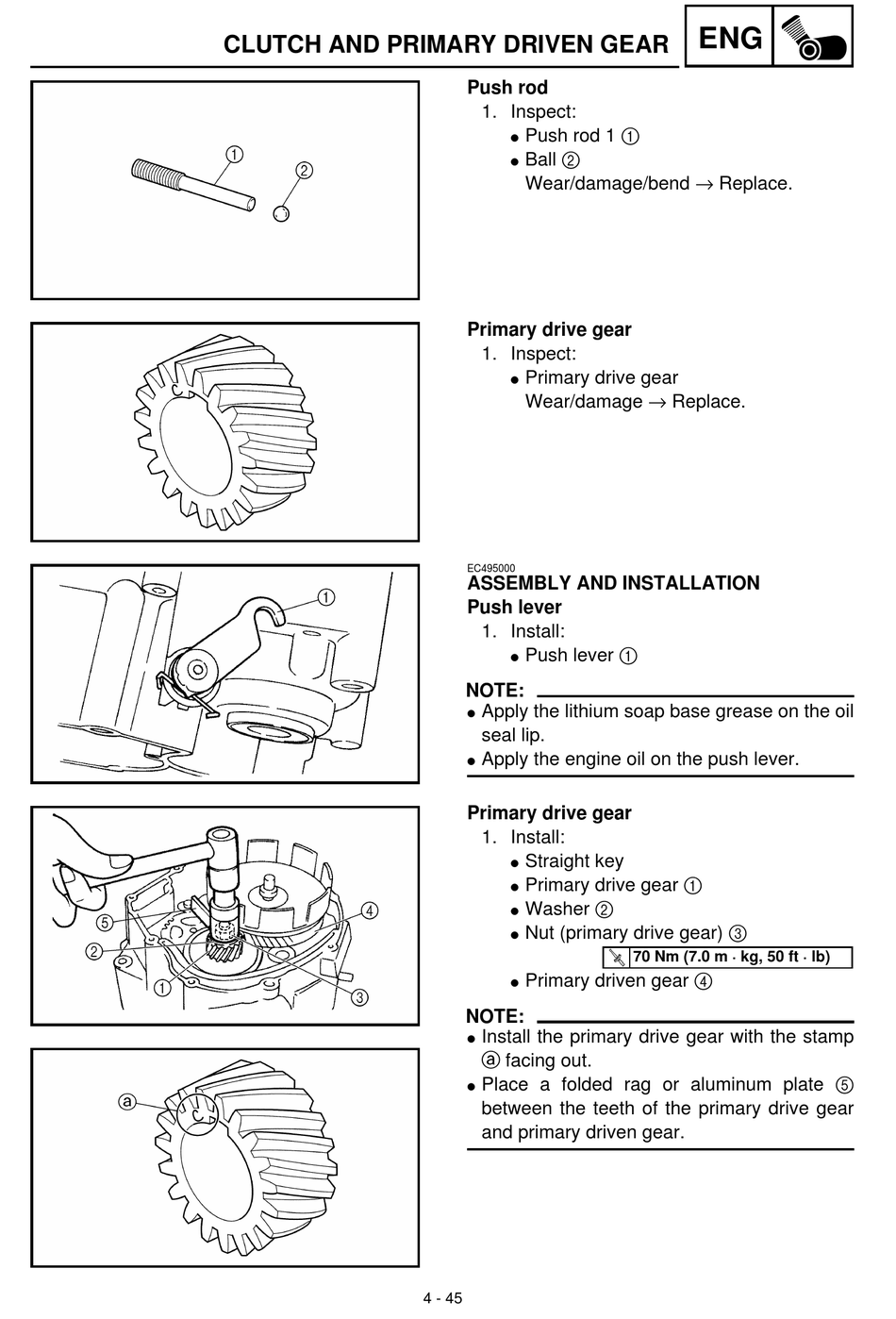

CLUTCH AND PRIMARY DRIVEN GEAR
Push rod
1. Inspect:
Push rod 1 1
Ball 2
Wear/damage/bend → Replace.
Primary drive gear
1. Inspect:
Primary drive gear
Wear/damage → Replace.
EC495000
ASSEMBLY AND INSTALLATION
Push lever
1. Install:
Push lever 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip.
Apply the engine oil on the push lever.
Primary drive gear
1. Install:
Straight key
Primary drive gear 1
Washer 2
Nut (primary drive gear) 3
Primary driven gear 4
NOTE:
Install the primary drive gear with the stamp
a facing out.
Place a folded rag or aluminum plate 5
between the teeth of the primary drive gear
and primary driven gear.
4 - 45
ENG
70 Nm (7.0 m · kg, 50 ft · lb)
