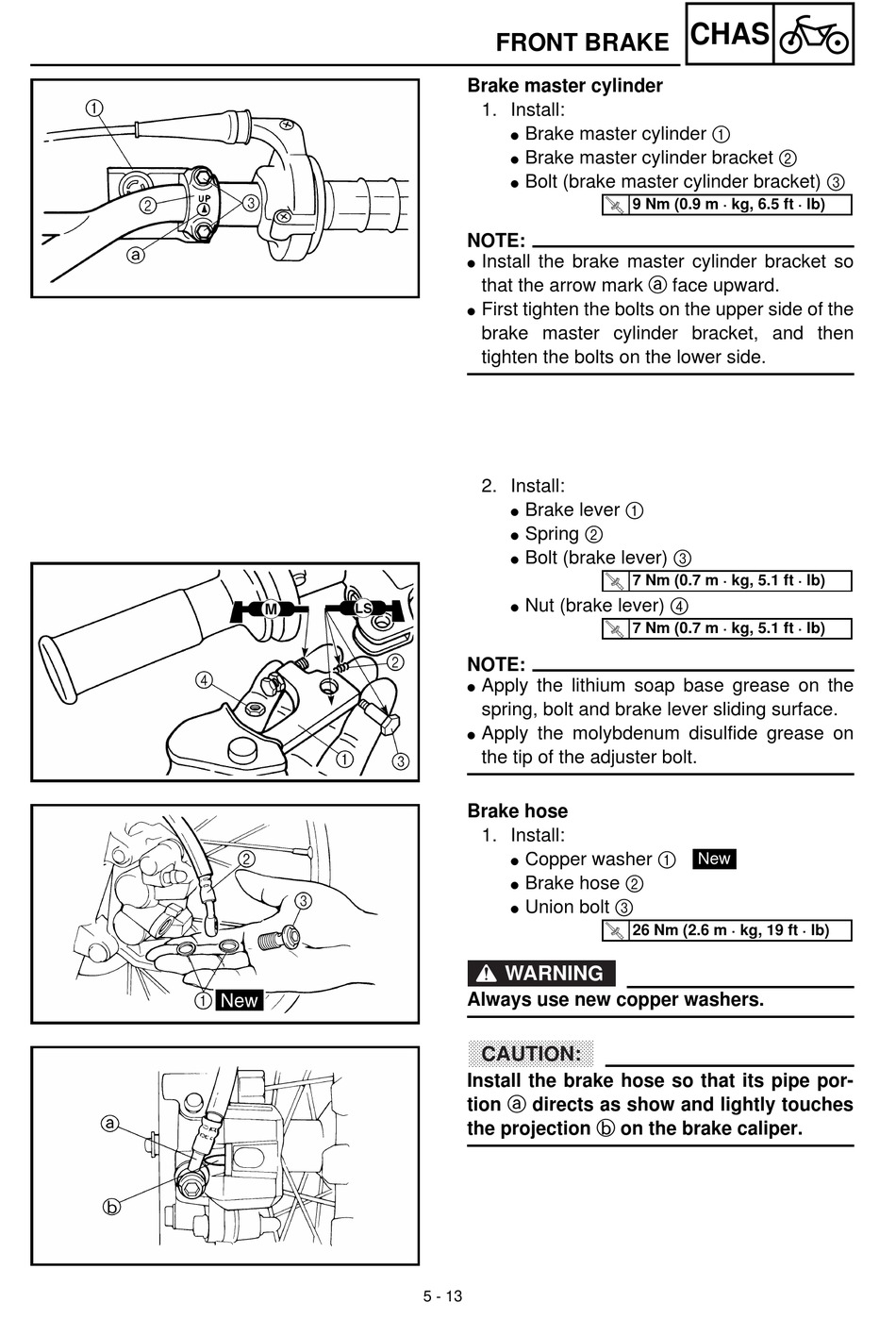

FRONT BRAKE
Brake master cylinder
1. Install:
Brake master cylinder 1
Brake master cylinder bracket 2
Bolt (brake master cylinder bracket) 3
NOTE:
Install the brake master cylinder bracket so
that the arrow mark a face upward.
First tighten the bolts on the upper side of the
brake master cylinder bracket, and then
tighten the bolts on the lower side.
2. Install:
Brake lever 1
Spring 2
Bolt (brake lever) 3
Nut (brake lever) 4
NOTE:
Apply the lithium soap base grease on the
spring, bolt and brake lever sliding surface.
Apply the molybdenum disulfide grease on
the tip of the adjuster bolt.
Brake hose
1. Install:
Copper washer 1
Brake hose 2
Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion a directs as show and lightly touches
the projection b on the brake caliper.
5 - 13
CHAS
9 Nm (0.9 m · kg, 6.5 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
New
26 Nm (2.6 m · kg, 19 ft · lb)
