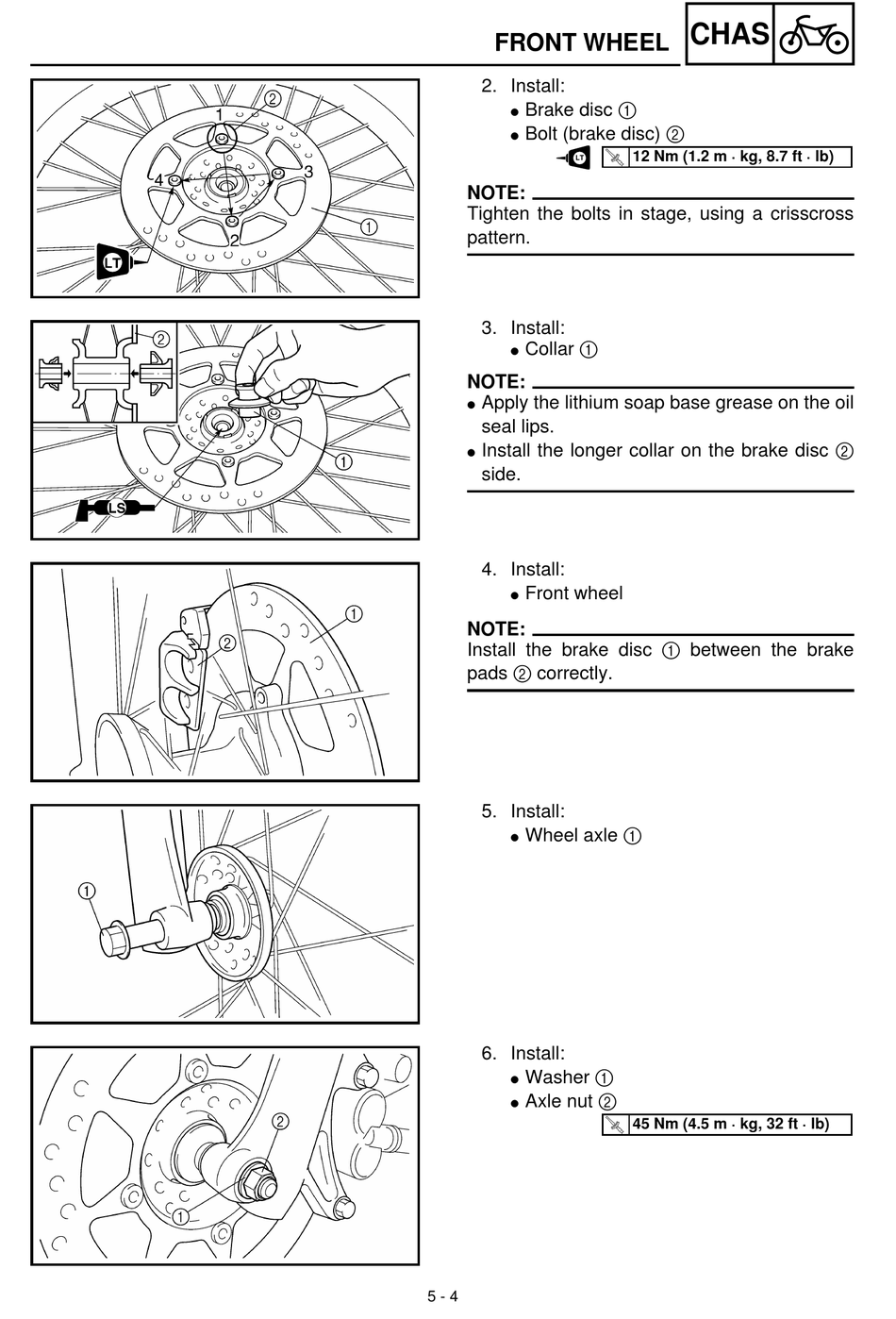

Yamaha TT-R125LW Owner's Service Manual page 348

FRONT WHEEL
2. Install:
Brake disc 1
Bolt (brake disc) 2
LT
NOTE:
Tighten the bolts in stage, using a crisscross
pattern.
3. Install:
Collar 1
NOTE:
Apply the lithium soap base grease on the oil
seal lips.
Install the longer collar on the brake disc 2
side.
4. Install:
Front wheel
NOTE:
Install the brake disc 1 between the brake
pads 2 correctly.
5. Install:
Wheel axle 1
6. Install:
Washer 1
Axle nut 2
5 - 4
CHAS
12 Nm (1.2 m · kg, 8.7 ft · lb)
45 Nm (4.5 m · kg, 32 ft · lb)
