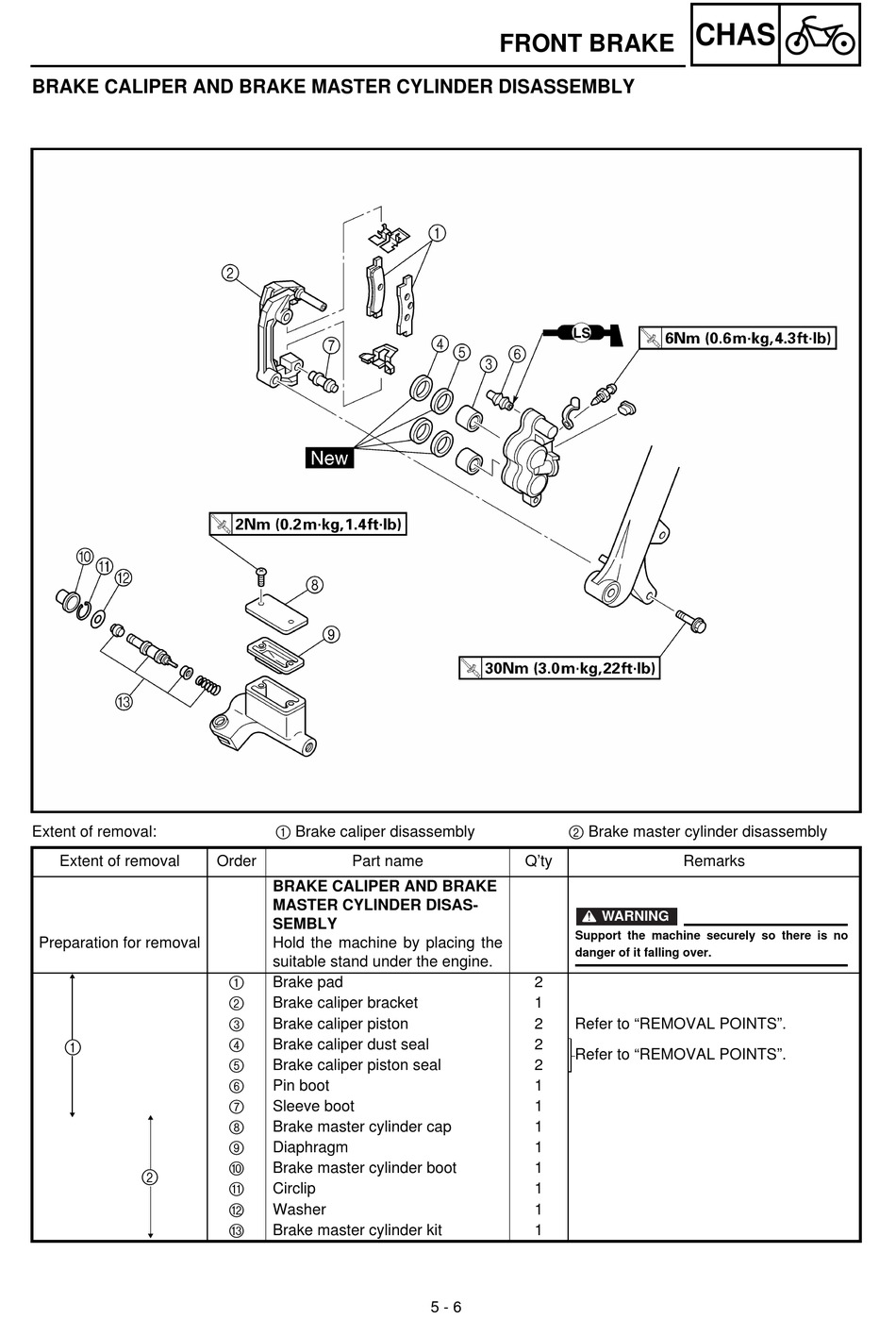

BRAKE CALIPER AND BRAKE MASTER CYLINDER DISASSEMBLY
Extent of removal:
Extent of removal
Preparation for removal
1
2
1 Brake caliper disassembly
Order Part name
BRAKE CALIPER AND BRAKE
MASTER CYLINDER DISAS-
SEMBLY
Hold the machine by placing the
suitable stand under the engine.
1 Brake pad
2 Brake caliper bracket
3 Brake caliper piston
4 Brake caliper dust seal
5 Brake caliper piston seal
6 Pin boot
7 Sleeve boot
8 Brake master cylinder cap
9 Diaphragm
0 Brake master cylinder boot
A Circlip
B Washer
Brake master cylinder kit
C
FRONT BRAKE
2 Brake master cylinder disassembly
Q'ty
Support the machine securely so there is no
danger of it falling over.
2
1
2 Refer to "REMOVAL POINTS".
2
Refer to "REMOVAL POINTS".
2
1
1
1
1
1
1
1
1
5 - 6
CHAS
Remarks
WARNING
