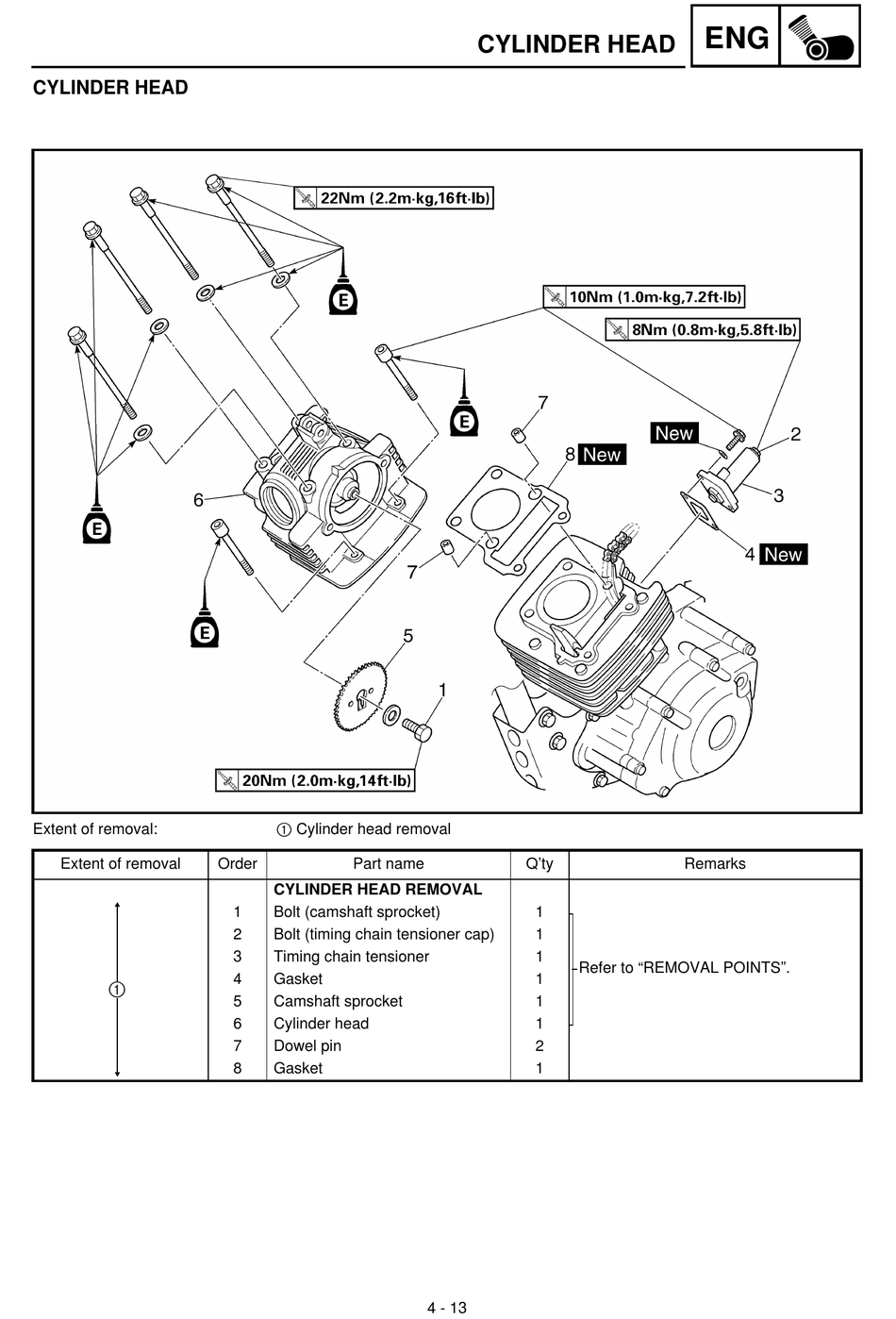

CYLINDER HEAD
Extent of removal:
Extent of removal
1
1 Cylinder head removal
Order Part name
CYLINDER HEAD REMOVAL
1 Bolt (camshaft sprocket)
2 Bolt (timing chain tensioner cap)
3 Timing chain tensioner
4 Gasket
5 Camshaft sprocket
6 Cylinder head
7 Dowel pin
8 Gasket
CYLINDER HEAD
Q'ty
1
1
1
Refer to "REMOVAL POINTS".
1
1
1
2
1
4 - 13
ENG
Remarks
