1 Engine stop switch lead
2 Engine stop switch
3 Fuel tank breather hose
4 Clamp
5 Brake hose
6 Clutch cable
7 Throttle cable

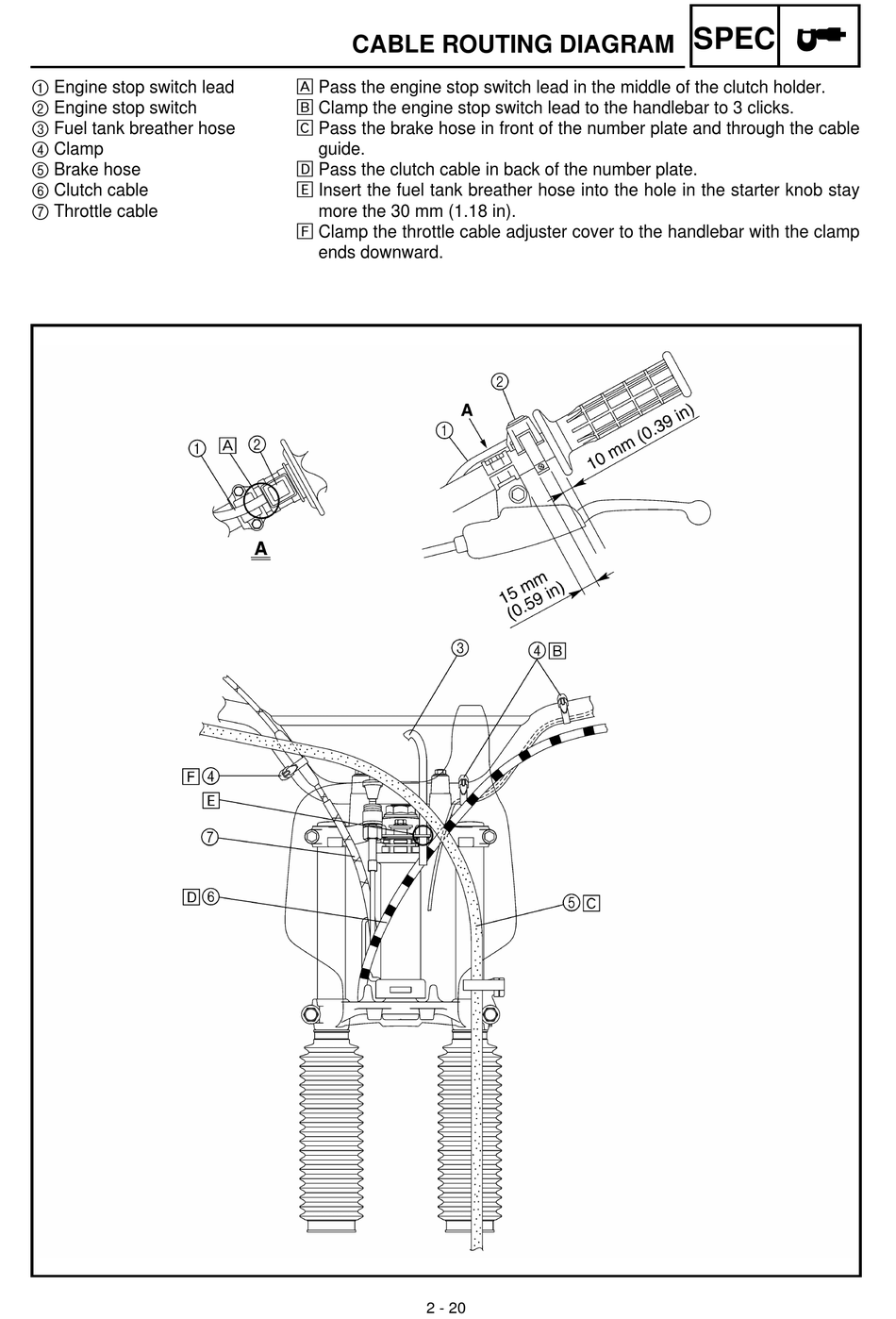

CABLE ROUTING DIAGRAM
Å Pass the engine stop switch lead in the middle of the clutch holder.
ı Clamp the engine stop switch lead to the handlebar to 3 clicks.
Ç Pass the brake hose in front of the number plate and through the cable
guide.
Î Pass the clutch cable in back of the number plate.
‰ Insert the fuel tank breather hose into the hole in the starter knob stay
more the 30 mm (1.18 in).
Ï Clamp the throttle cable adjuster cover to the handlebar with the clamp
ends downward.
2 - 20
