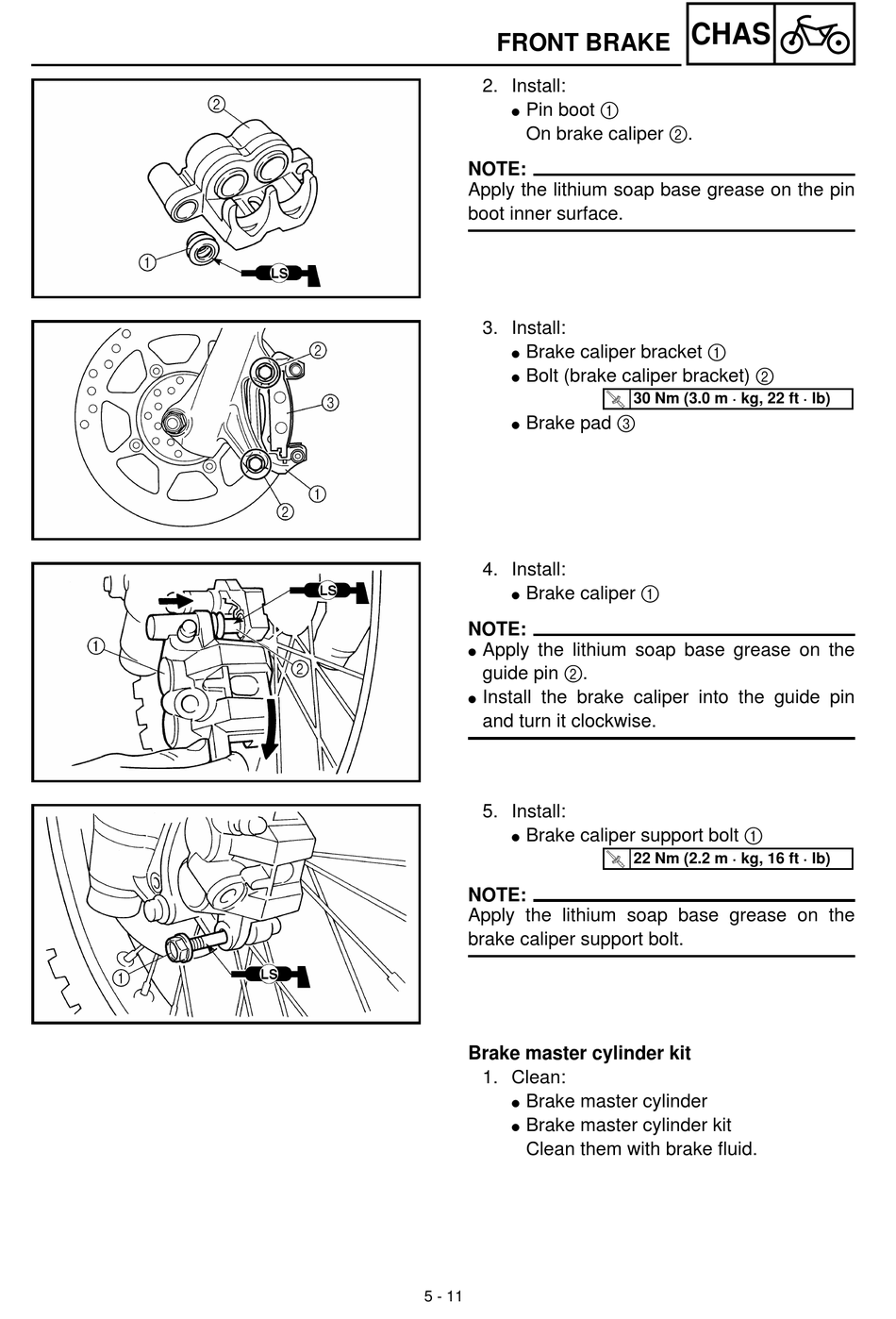

FRONT BRAKE
2. Install:
Pin boot 1
On brake caliper 2.
NOTE:
Apply the lithium soap base grease on the pin
boot inner surface.
3. Install:
Brake caliper bracket 1
Bolt (brake caliper bracket) 2
Brake pad 3
4. Install:
Brake caliper 1
NOTE:
Apply the lithium soap base grease on the
guide pin 2.
Install the brake caliper into the guide pin
and turn it clockwise.
5. Install:
Brake caliper support bolt 1
NOTE:
Apply the lithium soap base grease on the
brake caliper support bolt.
Brake master cylinder kit
1. Clean:
Brake master cylinder
Brake master cylinder kit
Clean them with brake fluid.
5 - 11
CHAS
30 Nm (3.0 m · kg, 22 ft · lb)
22 Nm (2.2 m · kg, 16 ft · lb)
